Hydmech

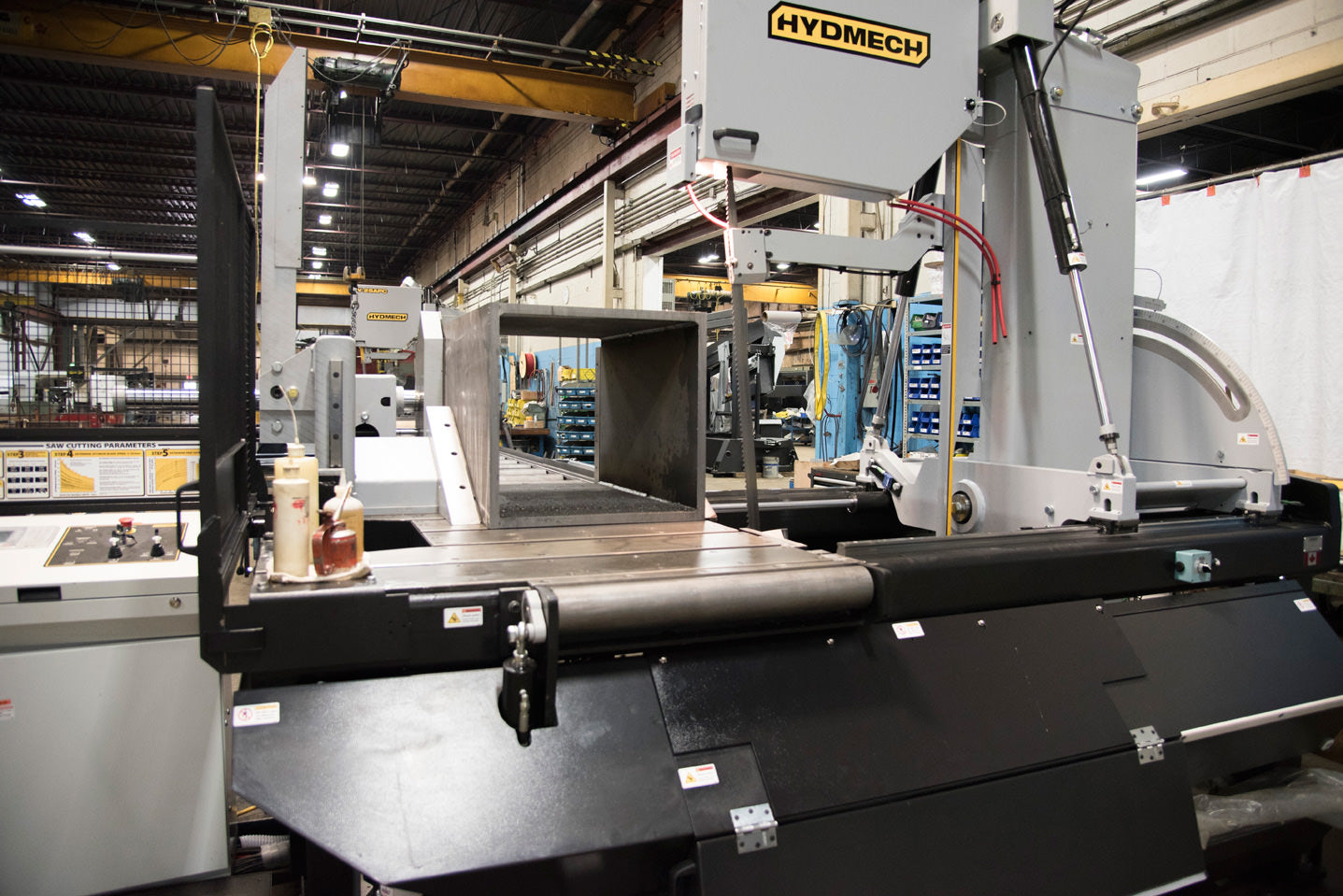

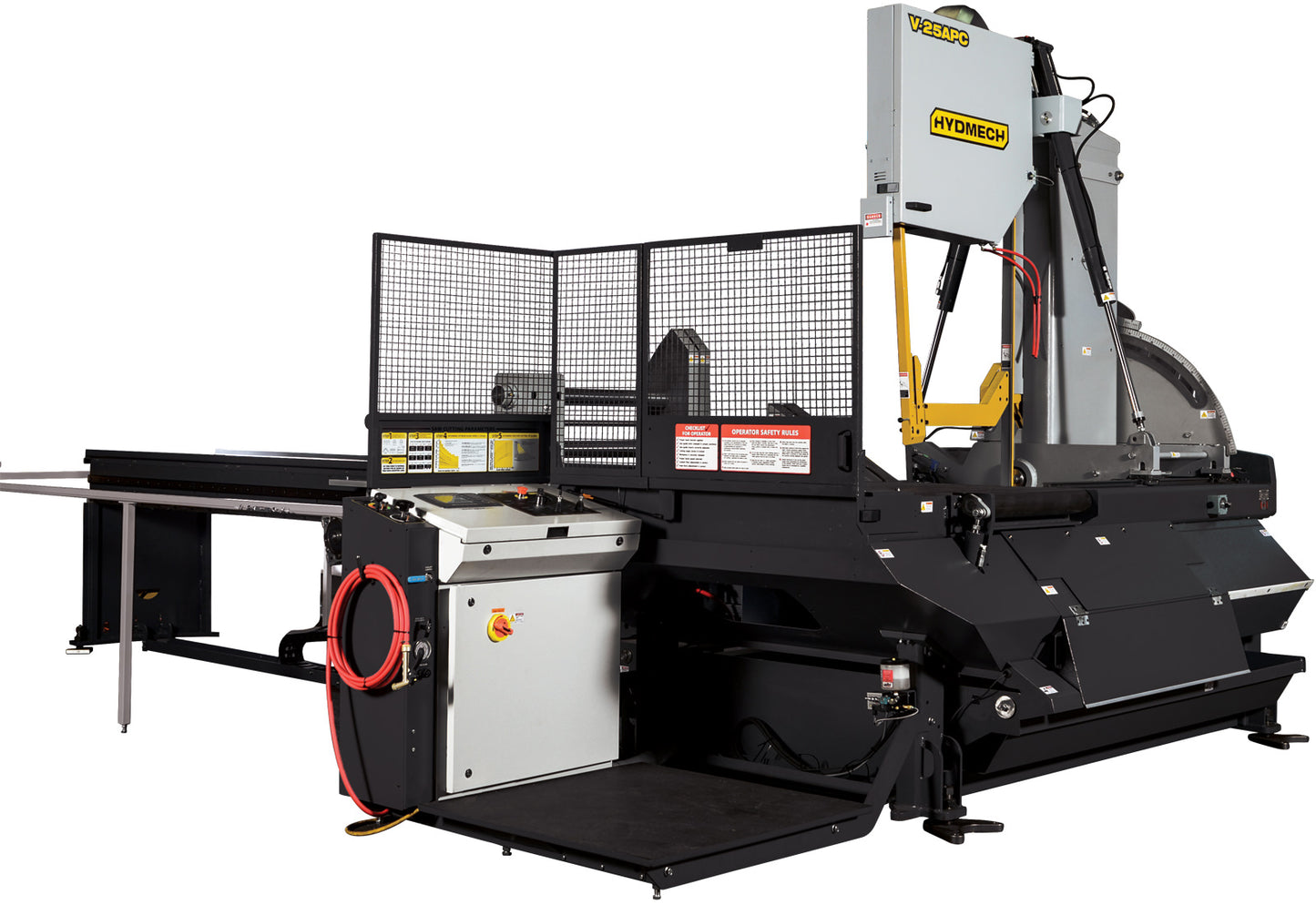

V-25APC VERTICAL BAND SAW
V-25APC VERTICAL BAND SAW
V-25APC VERTICAL BAND SAW
Automatic vertical band saw with the ability to miter from 60° left to 60° right.
A heavy duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.
Featuring a large 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications.
MACHINE SPECIFICATIONS
| Capacity | Rectangular (h x w) | Round |
| 90° | 30″ x 25″ | 25″ |
| 45° | 21″ x 25″ | 21″ |
| 60° Right | 14 1/2″ x 25″ | 14 1/2″ |
| 60° Left | 13 1/2″ x 25″ | 13 1/2″ |
| Blade Size | 1 1/2” x 21’ 0.5” | |
| Blade Drive | 10 HP VFD | |
| Machine Voltage | 240, 480 or 575 | |
| Blade Speed | 75-350 SFM | |
| Automatic Multi-Indexing | 60″ (120″ optional) | |
| Machine Weight | 15,000 lbs. | |
| Table Height | 44” | |
| Dimensions (w x l x h) | 158” x 254” x 123” | |
STANDARD FEATURES
- 6° canted head allows for efficient cutting and improved blade life
- 60” bar feed, left side
- Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Hydraulic head tilt
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
- Two full stroking hydraulic vises
- Hydraulically powered, programmable guide arm attached
- 10 HP VFD. True direct blade drive
- Blade chamber separates material from cut part
- Hydraulic chip conveyor efficiently removes chips from saw base
- Replaceable blade brush
- Robust steel base
- Out of stock switch
- Blade breakage switch
- Easy access electrical and hydraulics
- Pop-up feed roller – one opposite bar feed
- Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 3 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Variable vise pressure
OPTIONAL FEATURES
- Chip bucket with pump
- Hydraulic overhead bundling
- Mist lubrication
- Tall square vise inserts
- Out feed vise
- Right side infeed shuttle
- 10’ shuttle infeed
- Bridge/interface bracket
- Powered bridge/interface bracket
- Idler conveyors
- Powered conveyors
