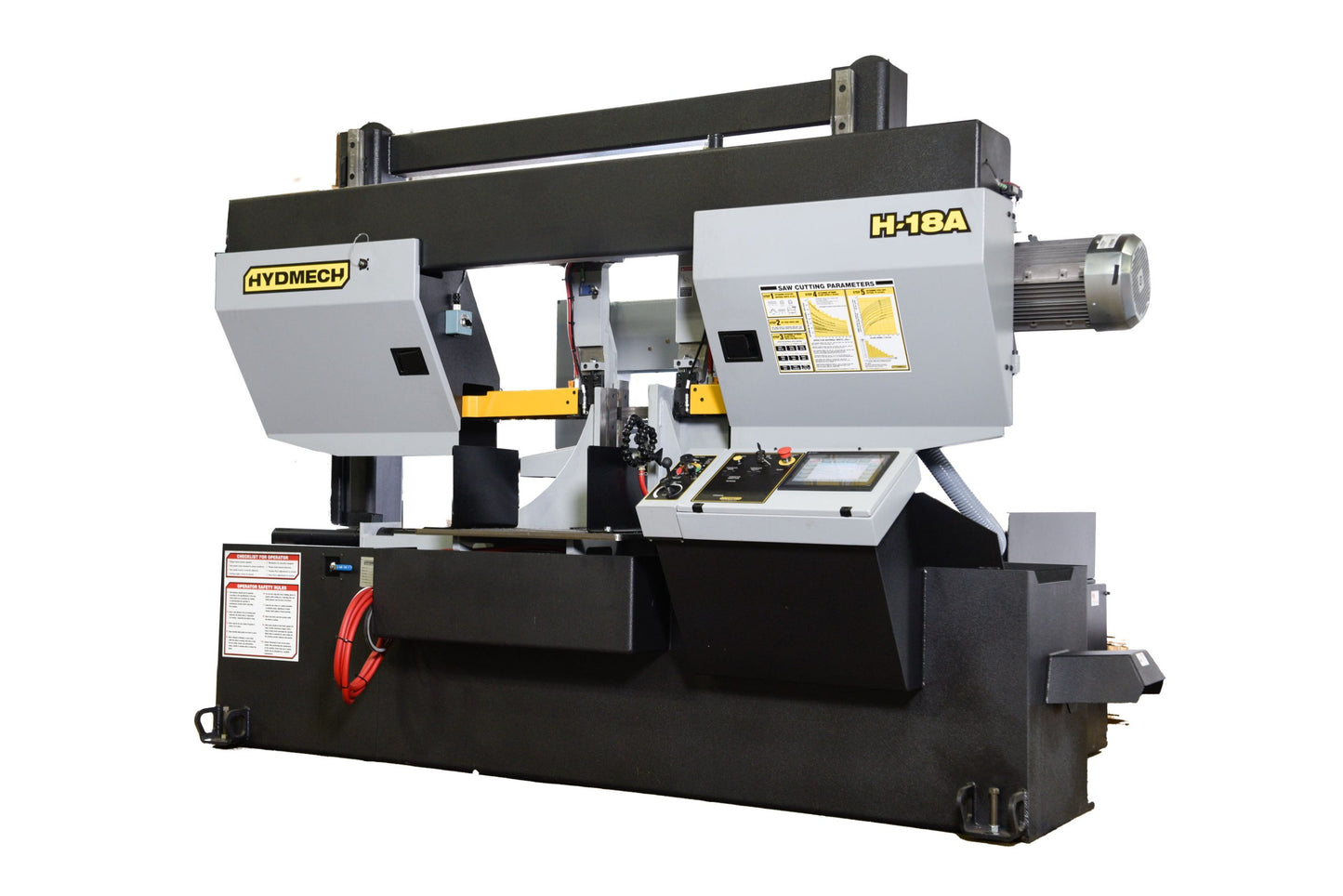

H-18A HORIZONTAL BAND SAW
H-18A HORIZONTAL BAND SAW
H-18A HORIZONTAL BAND SAW
The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.
The H-18A cuts fast, with its high-speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications.
MACHINE SPECIFICATIONS
| Capacity | Rectangular (h x w) | Round |
| 90° | 18″ x 18″ | 18″ |
| Blade Size | 1 1/2” x 19’ 2” | |
| Blade Drive | 10 HP VFD | |
| Machine Voltage | 240, 480, 575 V | |
| Blade Speed | 50-350 SFM | |
| Automatic Multi-Indexing | 0-34″ | |
| Coolant Tank Capacity | 30 gallons | |
| Machine Weight | 8,500 lbs. | |
| Table Height | 31” | |
| Dimensions (w x l x h) | 127” x 88” x 92” | |
STANDARD FEATURES
- The best cost per cut performance in its class
- One piece design – no alignment necessary
- Spilt front vise
- Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation
- Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
- 10 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Blade chamber separates material from cut part
- Cast iron band wheels

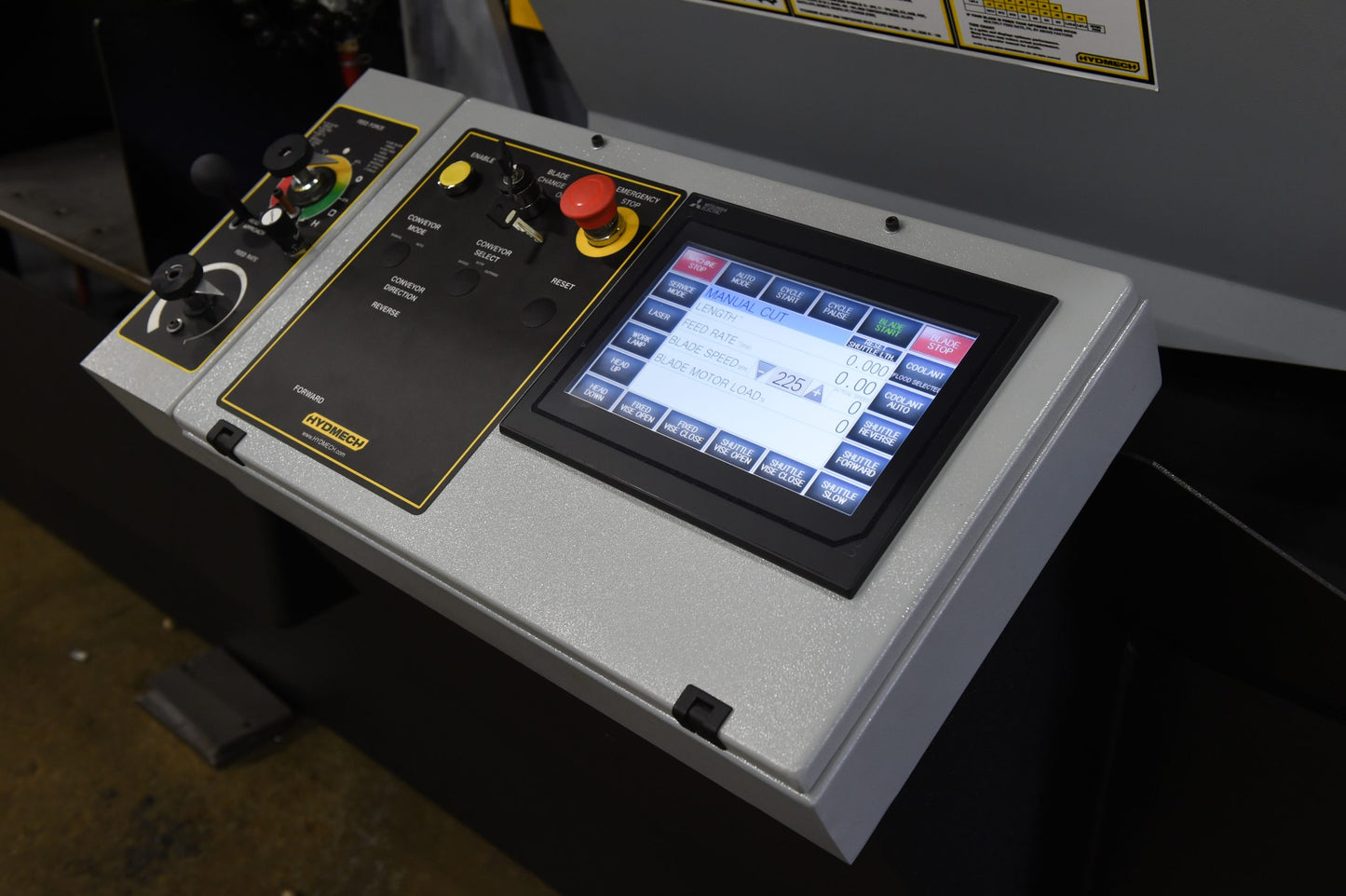

- Automatic PLC control programmable up to 99 jobs with 5 in queue
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Variable vise pressure
- Out of stock switch
OPTIONAL FEATURES
- Full capacity hydraulic overhead bundling
- Blade deviation monitor

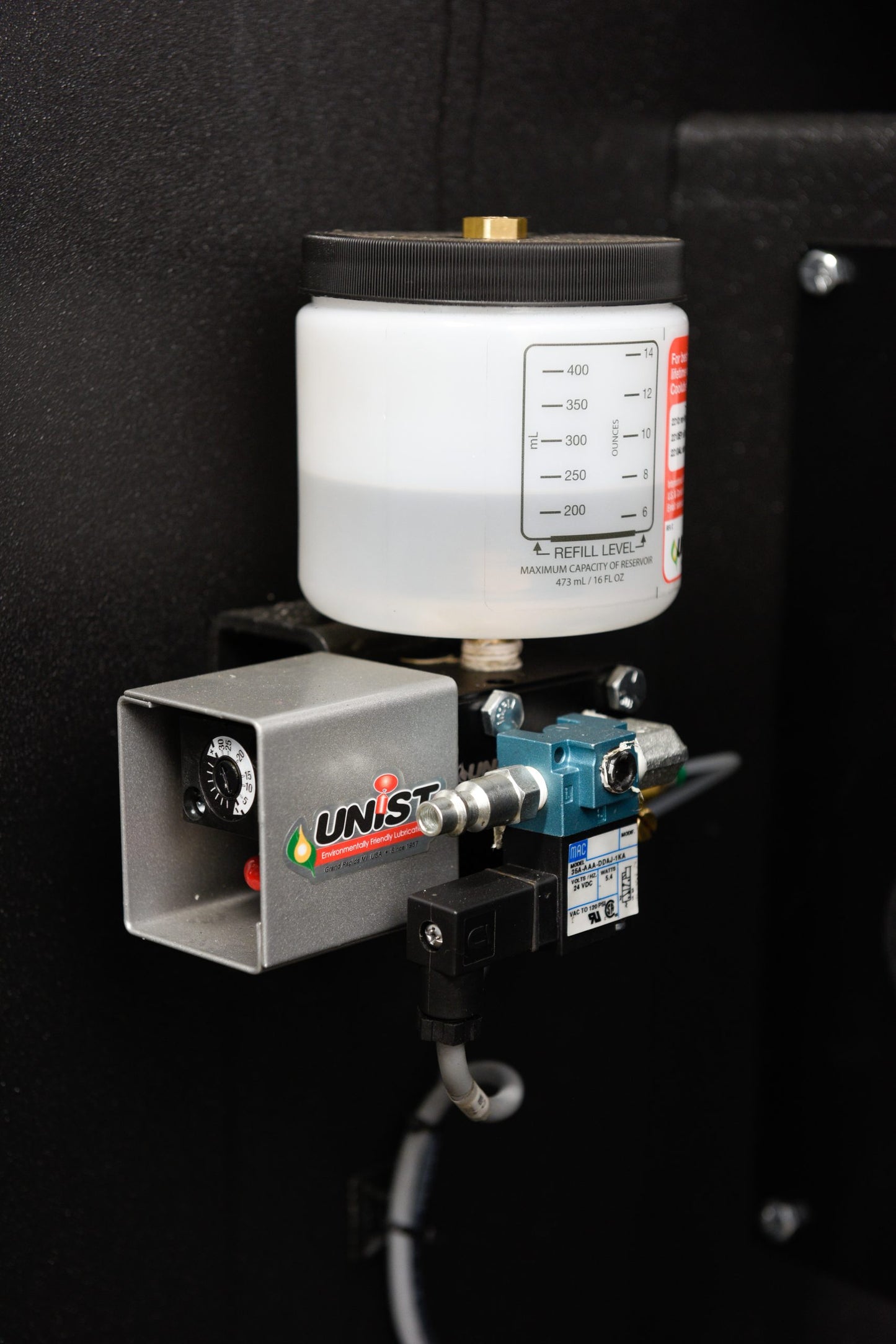

- Mist lubrication
- Out of stock switch
- Vertical alignment rollers
- Pedestal Control
- Laser light
- Roller discharge table
- Idler conveyors and accessories
- Powered conveyors and accessories
