Hydmech

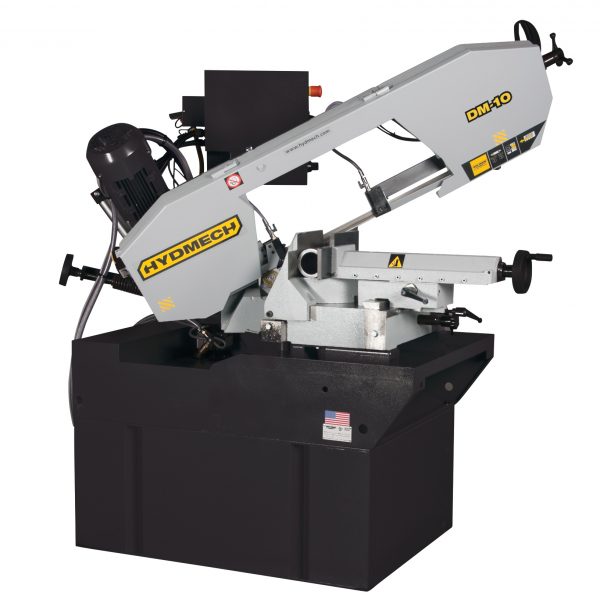

DM-10 DOUBLE MITER BAND SAW
DM-10 DOUBLE MITER BAND SAW
DM-10 DOUBLE MITER BAND SAW
This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.

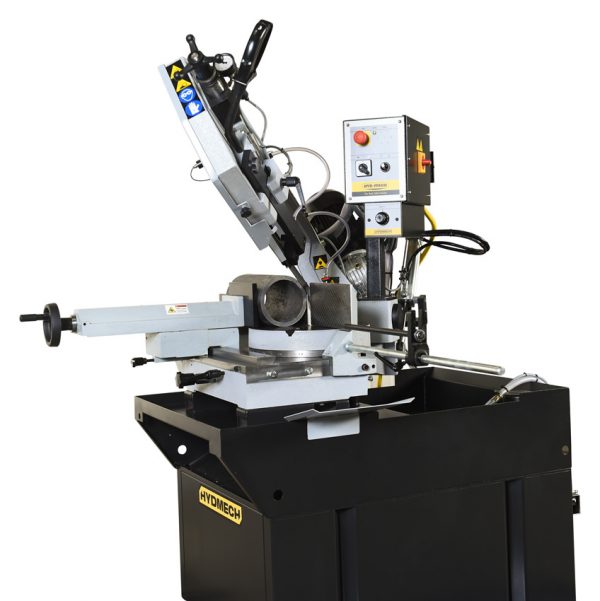

Exceptional cutting capability. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with a single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.
MACHINE SPECIFICATIONS
Capacity | Rectangular (h x w) | Round |
90° | 9 1/2″ x 11″ | 10″ |
45° Left | 6 1/4″ x 4 1/2″ | 5 3/4″ |
45° Right | 8 1/4″ x 7″ | 7 1/4″ |
30° Right | 5″ x 4 1/2″ | 4″ |
Blade Size | 1” x 9’ 8” | |
Blade Drive | 2/2.4 HP VFD | |
Machine Voltage | 240, 480, 575 V | |
Blade Speed | two speed 118-236 SFM | |
Coolant Tank Capacity | 3.5 Gallons | |
Machine Weight | 970 lbs. | |
Table Height | 34” | |
Dimensions (w x l x h) |
35.5” x 68” x 65” |
STANDARD FEATURES
- Manually operated, double miter, easy swing, cast saw head
- Quick release cast-iron material vise with dovetail ways
- Rotating table with cut slot that moves in tandem with sawing head
- Band tension indicator
- Infinitely adjustable, gravity feeding, sawing head

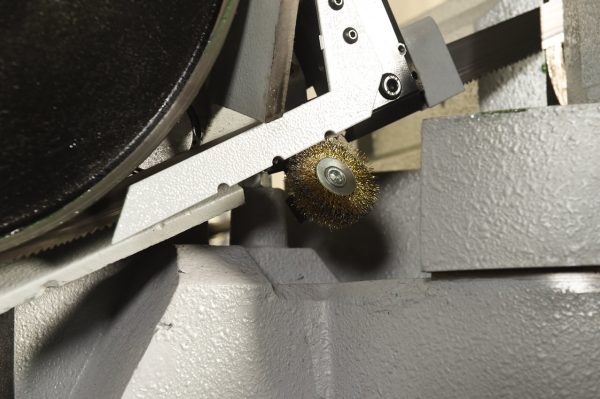

- Replaceable blade brush
- Small footprint
- Robust steel base
- Easy to read angle scale
- Adjustable guide arm
- Pre-set, replaceable carbide guide inserts
- True-direct drive – no belts or pulleys
- Mechanical blade tensioning
- Safety door interlocks
- Flood coolant
- Adjustable work stop
OPTIONAL FEATURES
- Mist lubrication
- Pneumatic material vise with foot pedal
- Single phase (Note: limits user to high blade speed only)
- K110 5’ infeed/out feed roller
- 59″ R2 work stop for K110 table
- Adaptor plate for K110 table
