Fab Cut F1
Fab Cut F1

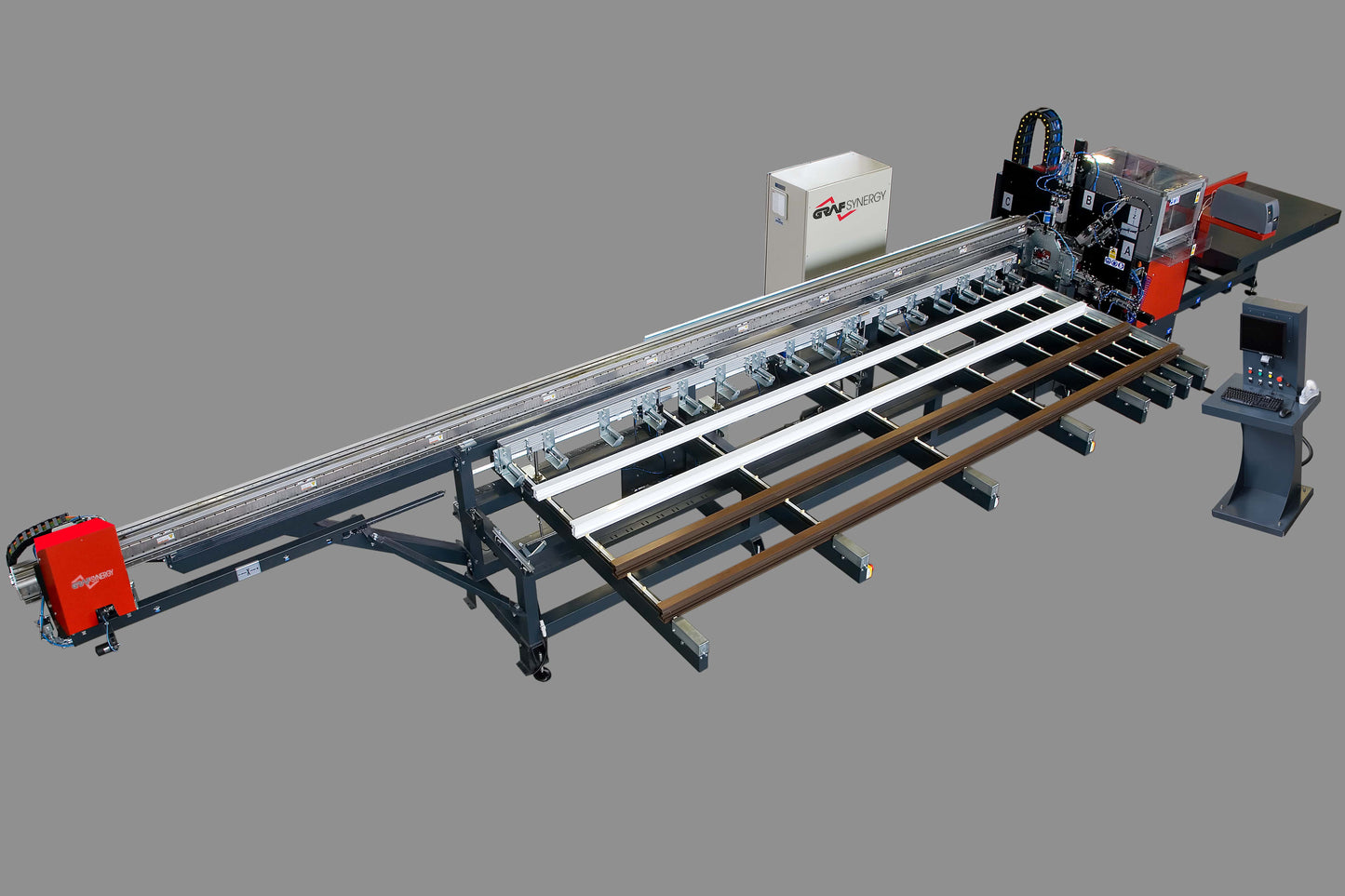

Automatic Machining and Cutting Center
5-6 axis CNC cutting and machining center designed to perform all the machining and cutting optimally on your PVC profiles.
Compact and versatile, it is a system built with the most innovative technology available on the market and guarantees extremely high reliability and precision over time.
5 Reasons to choose Fab Cut F1
Versatile, reliable and precise over time.
Optimized production lists: Fewer bars used thanks to Graf Synergy software.
Maximum precision: Automatic profile alignment system (it straightens the profile) and CNC profile gripper with reading of the actual position by means of a centesimal magnetic strip.
User Friendly: Intuitive system for simple management of work cycles.

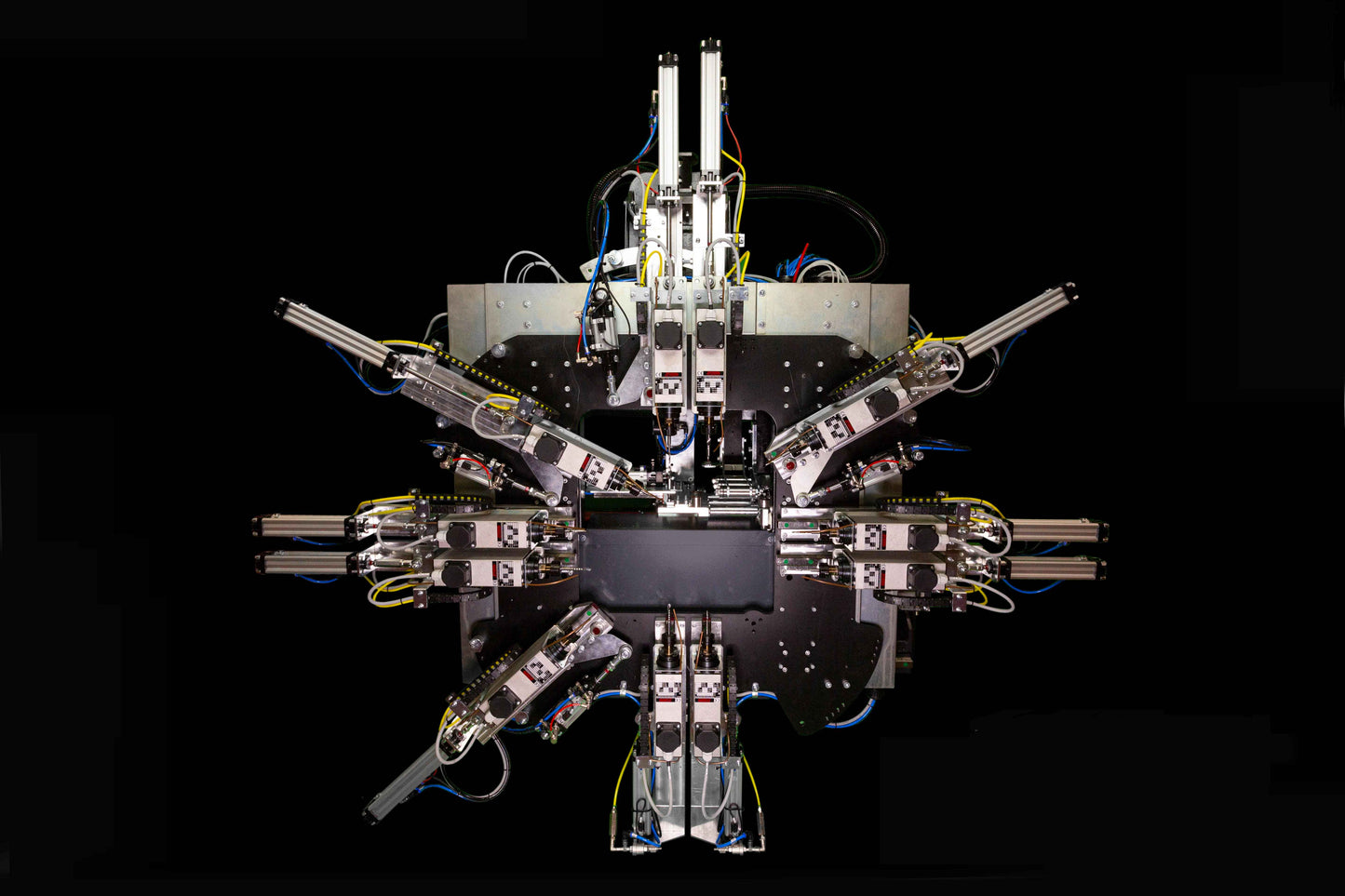

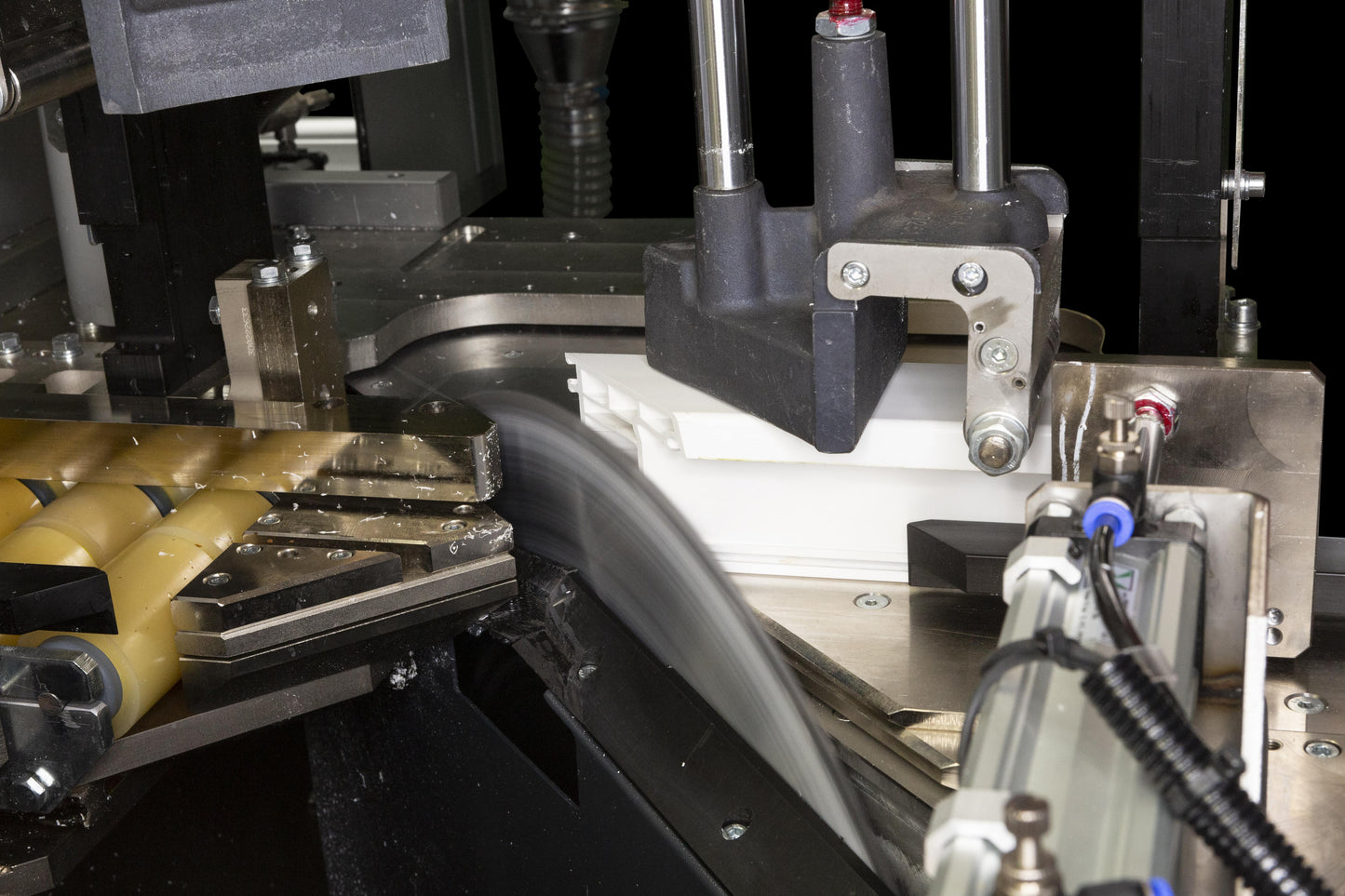

High Technology: Machining module capable of accommodating up to 12 High Speed spindles (6 Standard) a rising 1-blade cutting module.
On request the machine can be equipped with:
- Configuration with 6 additional spindles.
- Bar gripping system using a 2-axis CNC gripper on a linear motor on a prismatic guide.
- Profile loading system for length from 400 to 700 mm.
- Blade Ø 550 mm (necessary to cut 180 mm profiles) with additional presser kit.
- Blade rotation by brushless motor for cuts at intermediate angles (between -45° and +45°).
- STATS: Software for KPI, provides analysis of production data, reports the timing of daily, weekly, monthly and annual operations.
- Fly Optimizer: Automatic measurement system of the bar remains that allows you to optimize the production list and reuse the production leftovers.
- Retrieve option: The application allows re-insertion of the parts to be machined again in the cutting lists following production errors, updates and optimizes the cutting list.
- Tool break sensors.
- Customized solution for adapting the machine to profiles with particular shapes (post technical analysis).
- Chippings conveyor - Version 1.200 mm or 2.000.
- Exhauster with 2 bags.
- Soundproof booth.
- Motorized unloading table with belts with output on the opposite side of the loading.
- Possibility of predisposition for automatic connection to 1 or 2 ASG-E screwing centers.
- Manual labeling machine.
- Labeling machine with automatic label applicator.
- Possibility of inserting mechanical stops for fixed size intermediate cuts.
- Horizontal profile clamps system with locking capacity for large section cuts (up to 230 mm).
- Unloading table extension.
- Profile width measurement sensor: Warns in case of wrong profile loading.
- Profile height measurement sensor: Warns in case of wrong profile loading.
- Horizontal clamps for cutting profiles 30-130 mm wide.
Available Variants
- Preparation for cutting and machining aluminum profiles.
- Possibility of integration of the automatic cross-sectioning unit.
- Possibility of integration of the V-Notch cutting unit.
