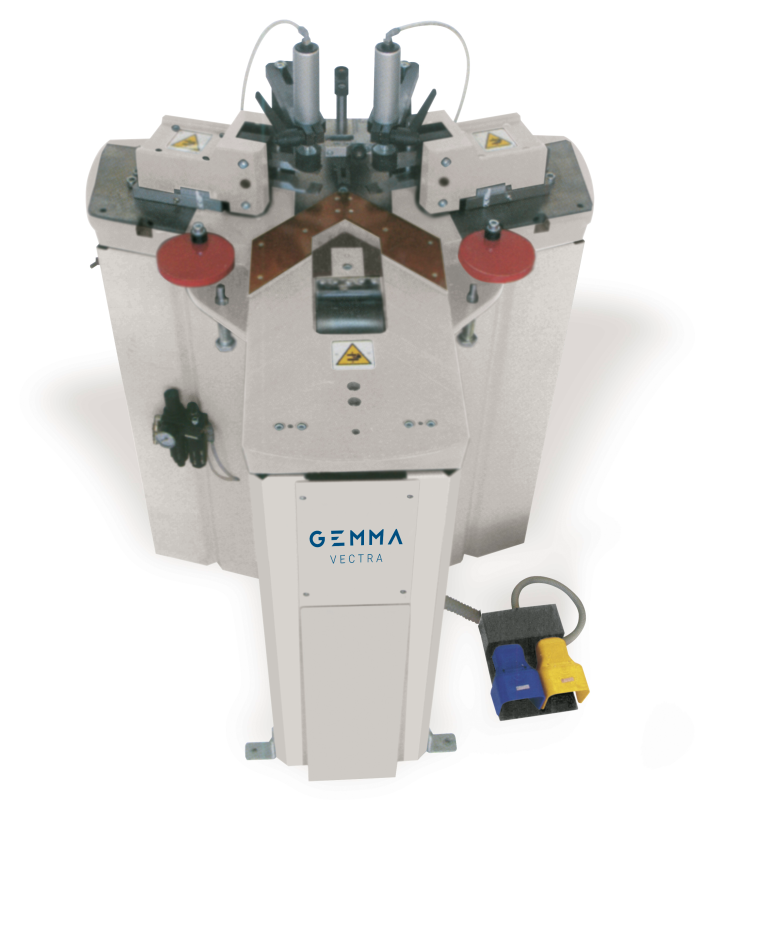

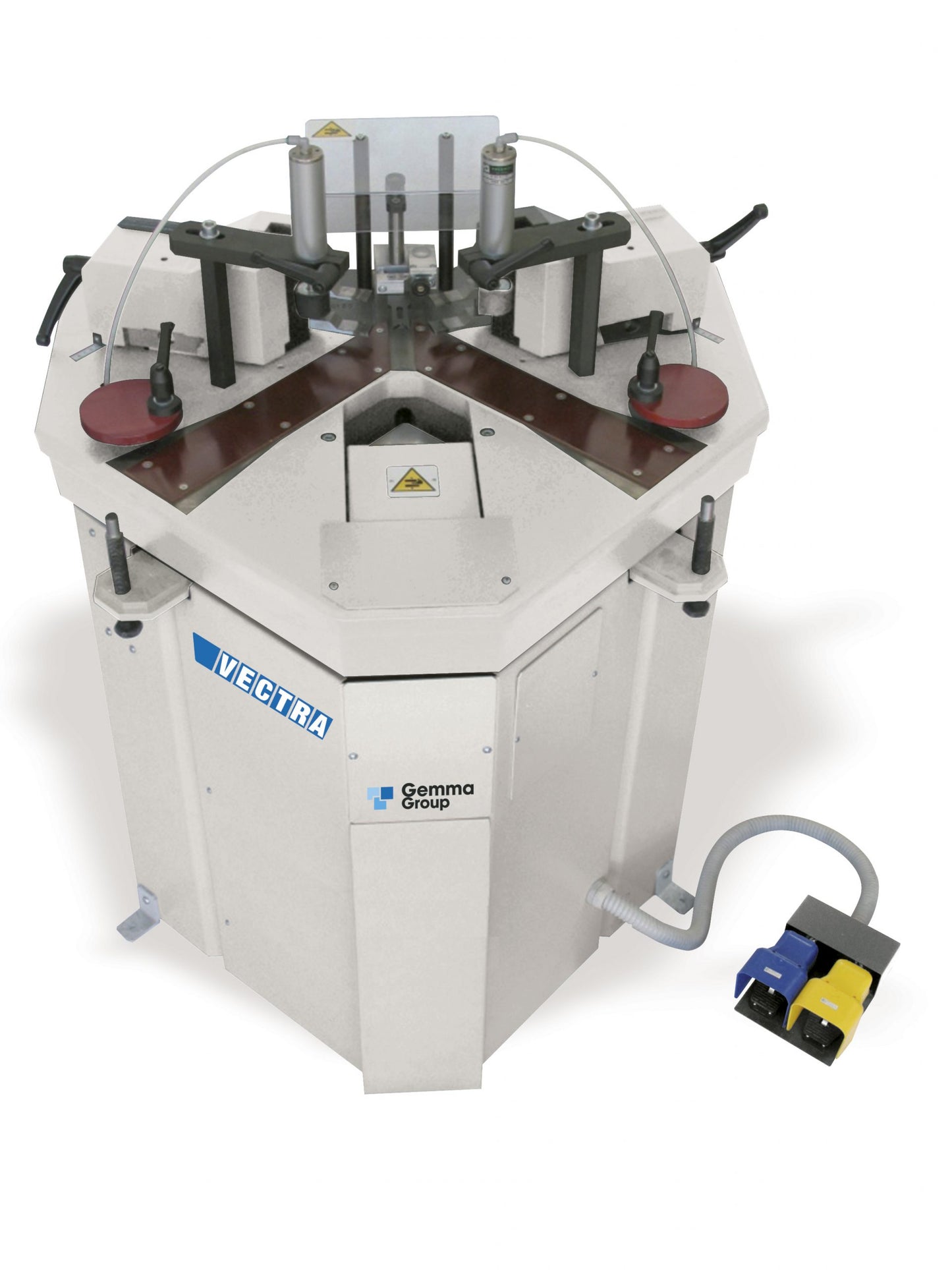

Achieve consistent and reliable crimping with the Vectra L. This robust machine is designed for efficient operation and features a user-friendly design with a copy template for standard machining.
Key Features:
Solid Construction: Features a stable electrowelded steel basement for durability.
Secure Workpiece Clamping: Equipped with 2 vertical pneumatic clamps to hold your materials firmly.
Standard Machining Capability: Includes a copy template for consistent and repeatable crimping.
Convenient Operation: Features a foot pedal for easy activation.
Enhanced Support: Comes with a frame support arms kit for added stability and convenience.
Offset Compensation: Unit split design allows for a 40 mm offset compensation.
Versatile Cutting Unit:

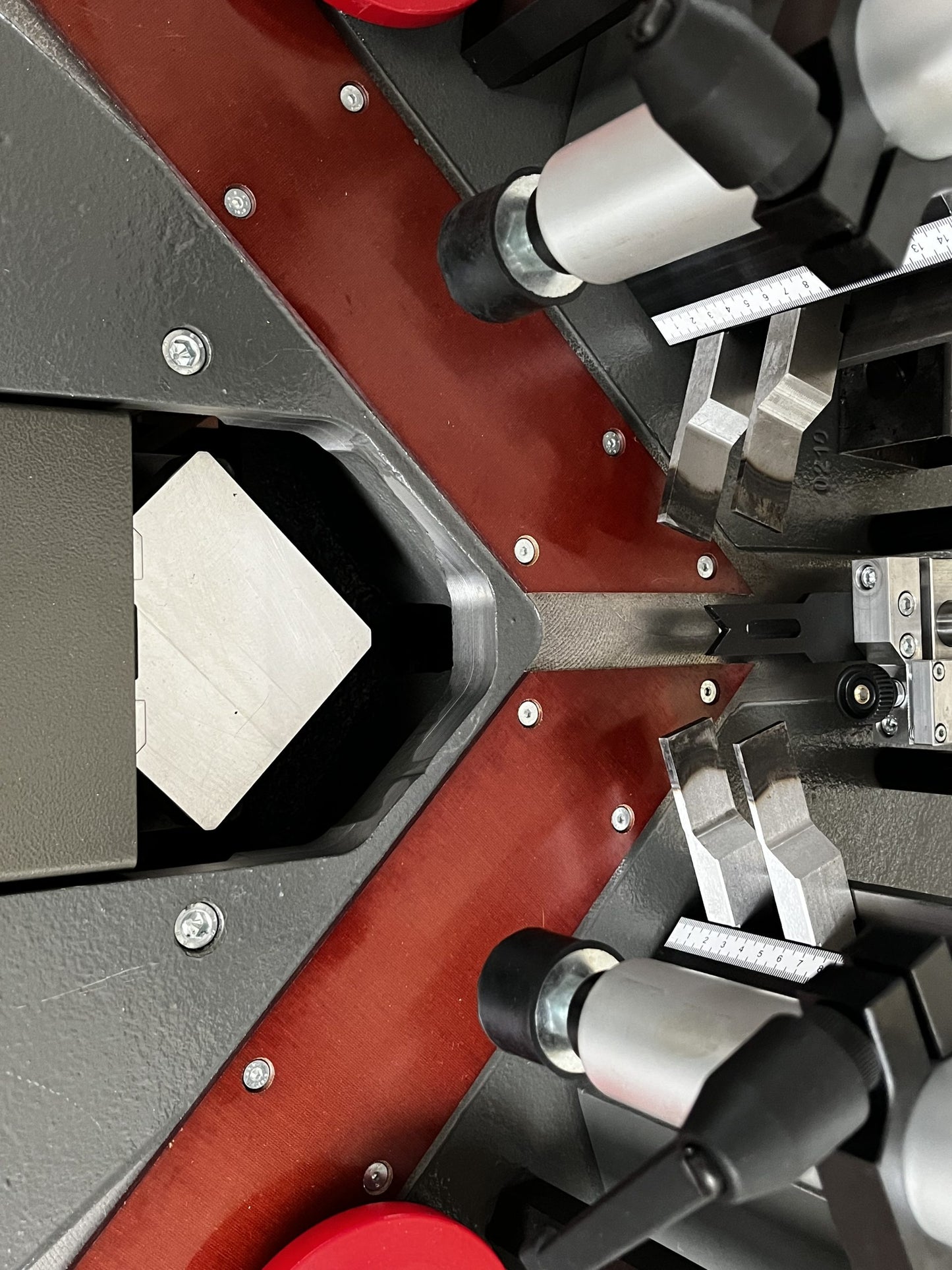

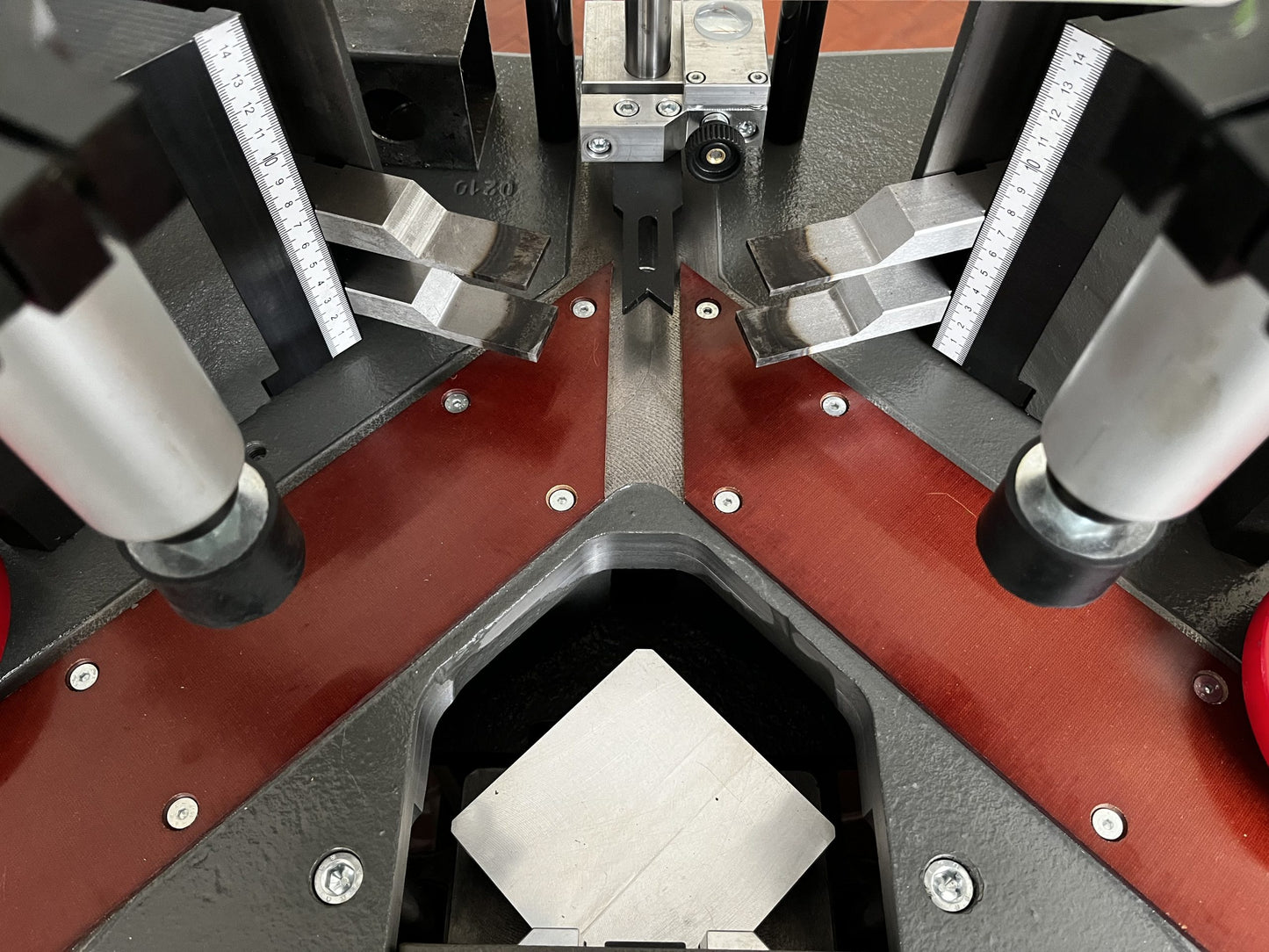

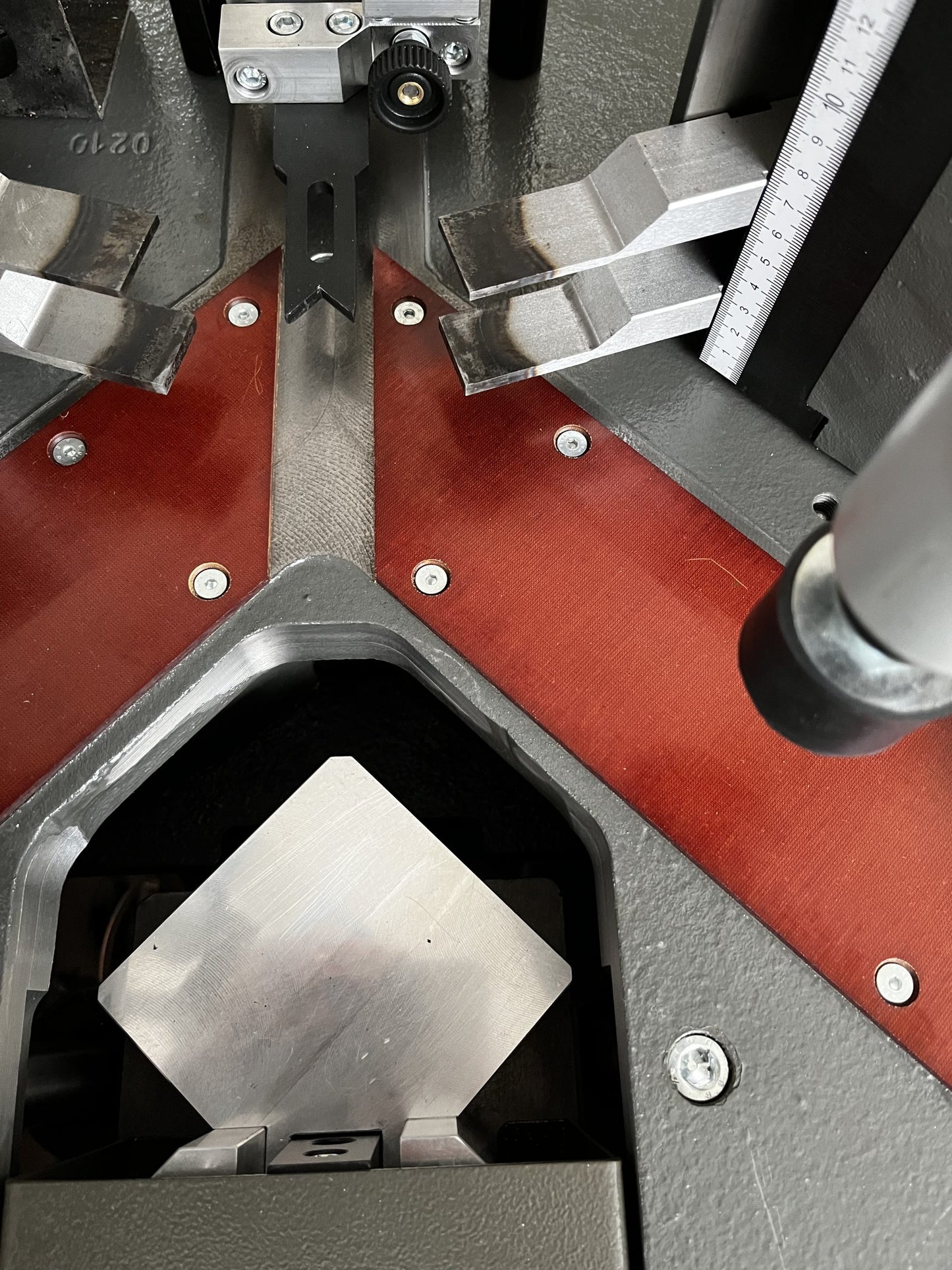

Includes a kit of 3 pairs of standard blades (3/5/7 mm) to accommodate various crimping needs.

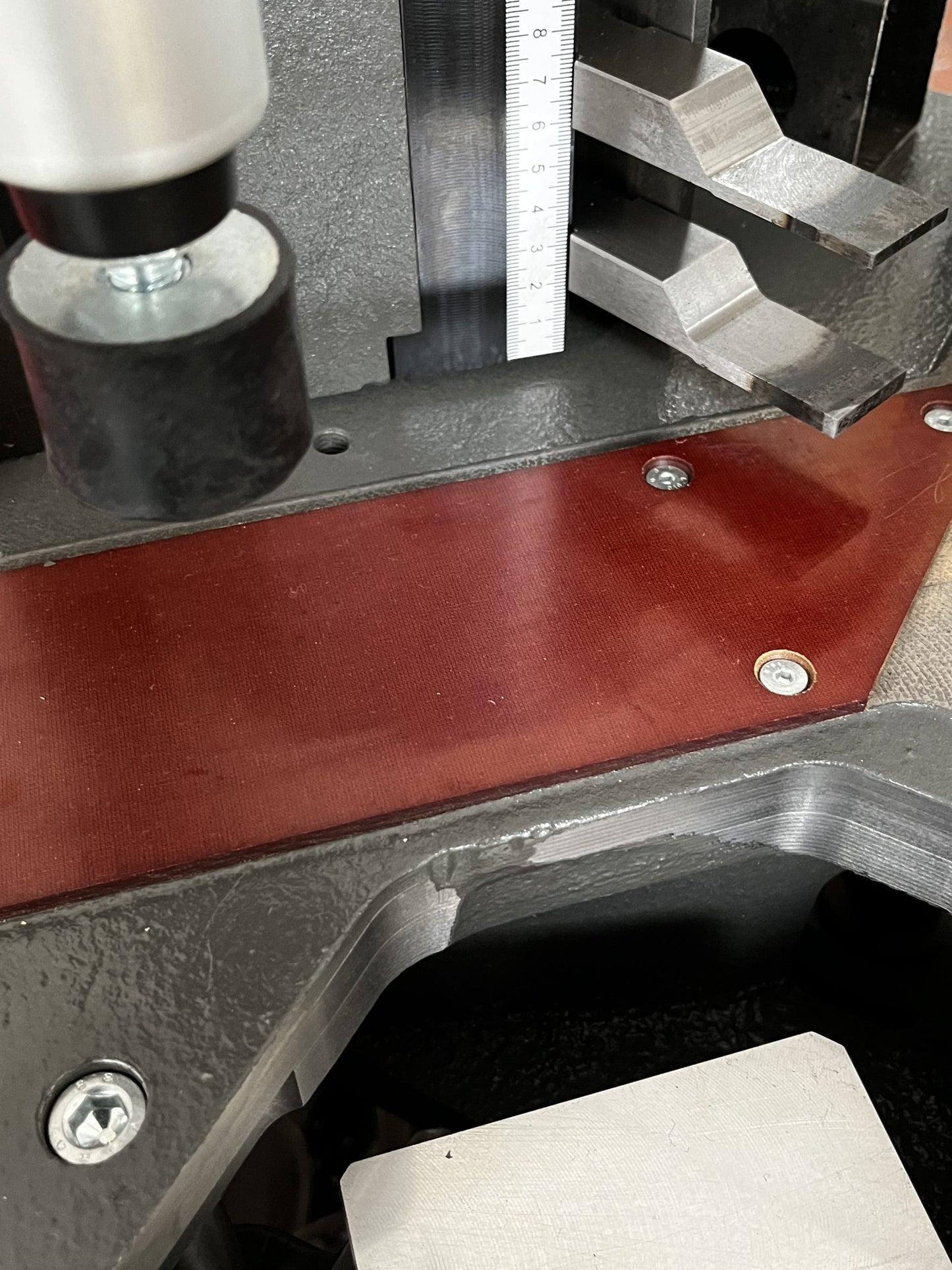

Longitudinal and transversal graduated rods with reference stops ensure precise position adjustment.
Venturi lubrication system for smooth operation and extended blade life.
Includes clamp inserts (20 mm + 30 mm) for different material sizes.
Safe Operation: Integral cutting area protections and compliance with CE safety regulations as standard.
Technical Specifications:
Crimping Height: 120/150 mm
Pressure Force: 3.2 t
Blade Working Stroke: 10.5/12 mm
Profile Lateral Regulation: 40 mm
Blade Lateral Regulation: 50 mm
Power Supply: Requires an air compressed supply of 7 Bar.
Air Consumption per Cycle: 35 Nl
CSA Compliance
General Specifications:
Cutting Capacity at 90°: 120x120 mm / 150x120 mm
Machine Weight: 440 kg
Machine Dimensions: 950 x 800 x 1150 mm
Ideal For:
Window frames
Manufacturing and production lines
Workshops requiring consistent crimping
Applications needing adjustable crimping heights and blade sizes.
Upgrade your crimping process with the reliable and efficient Vectra L!
