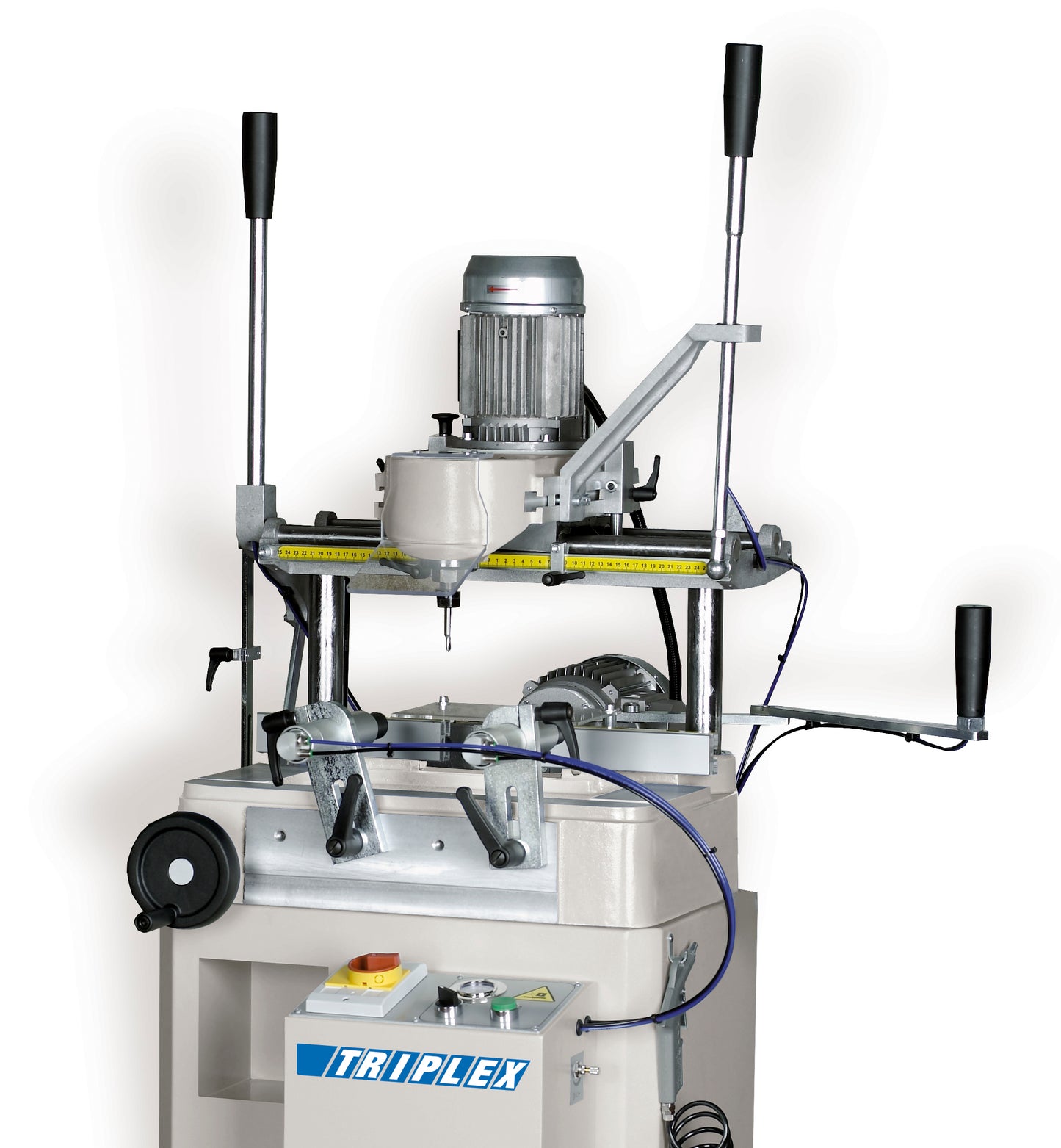

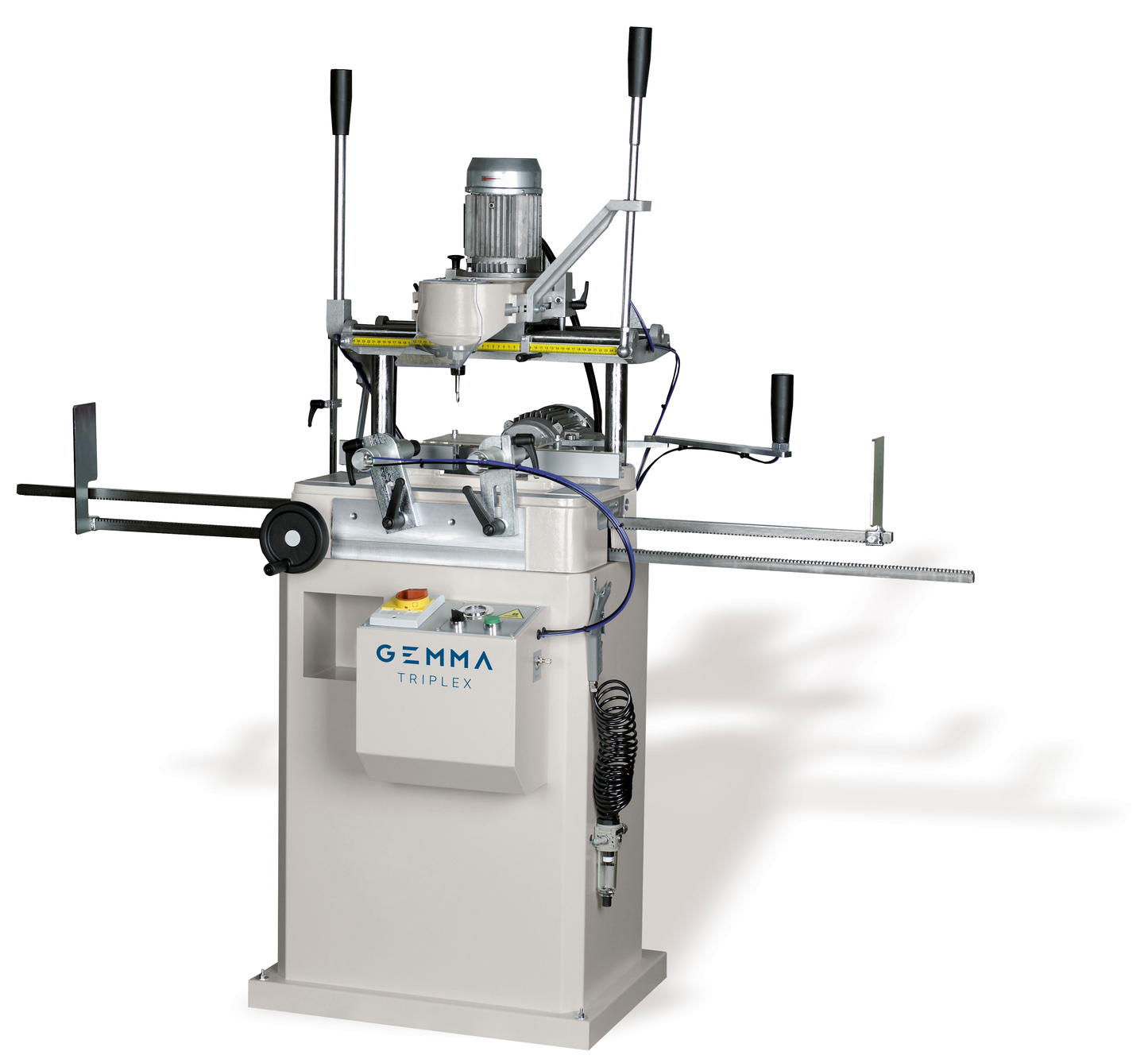

Triplex – Multi-Function Manual Copy Router with Drilling Unit
The Triplex Manual Copy Router offers a versatile solution for standard machining, combining precise routing with a horizontal motorized three-spindle drilling unit. This multi-functional machine enhances efficiency for a variety of applications.
Key Features:
Robust Foundation: Features a stable electrowelded steel basement for long-lasting performance.
Accurate Template Tracing: Equipped with 2 probes offering 3 diameters (5/8/10 mm) for precise replication from your copy templates.
Secure Workpiece Holding: Includes 2 horizontal pneumatic clamps to firmly secure the material during operation.
Standard Machining Capability: Designed for seamless use with copy templates for consistent routing.
Fixed Speed Routing: Features a 3-phase electrospindle with a fixed motor speed of 1,500 rpm.
Integrated Drilling Unit:
Horizontal motorized unit equipped with 3 drilling bits (10/10/12 mm) for added functionality.
Tool Compatibility: Accepts Ø 8 mm cutters with the included plier.
Precise Positioning: Longitudinal and transversal graduated rods with reference stops ensure accurate adjustments.
Efficient Cooling: Venturi lubrication system provides effective cooling and lubrication for extended tool life.
Comprehensive Safety: Integral cutting area protections and compliance with CE safety regulations as standard.
Technical Specifications:
Axes Stroke:
X-axis: 380 mm
Y-axis: 160 mm
Z-axis: 160 mm
Power Supply: 400 V / 60 Hz (three-phase)
Machine Dimensions: 800 x 900 x 1,800 mm
Motor Power: 1.1 kW
Rotation Speed (Router): Fixed at 1,500 rpm
Air Compressed Supply: 7 Bar
Air Consumption per Cycle: 3 Nl
CSA Compliance
Ideal For:
Workshops needing both routing and drilling capabilities in one machine.
