Selecta P – Advanced Double Head Cutting Machine for Compound Cuts        (Ø 600 mm Ascending Blades)

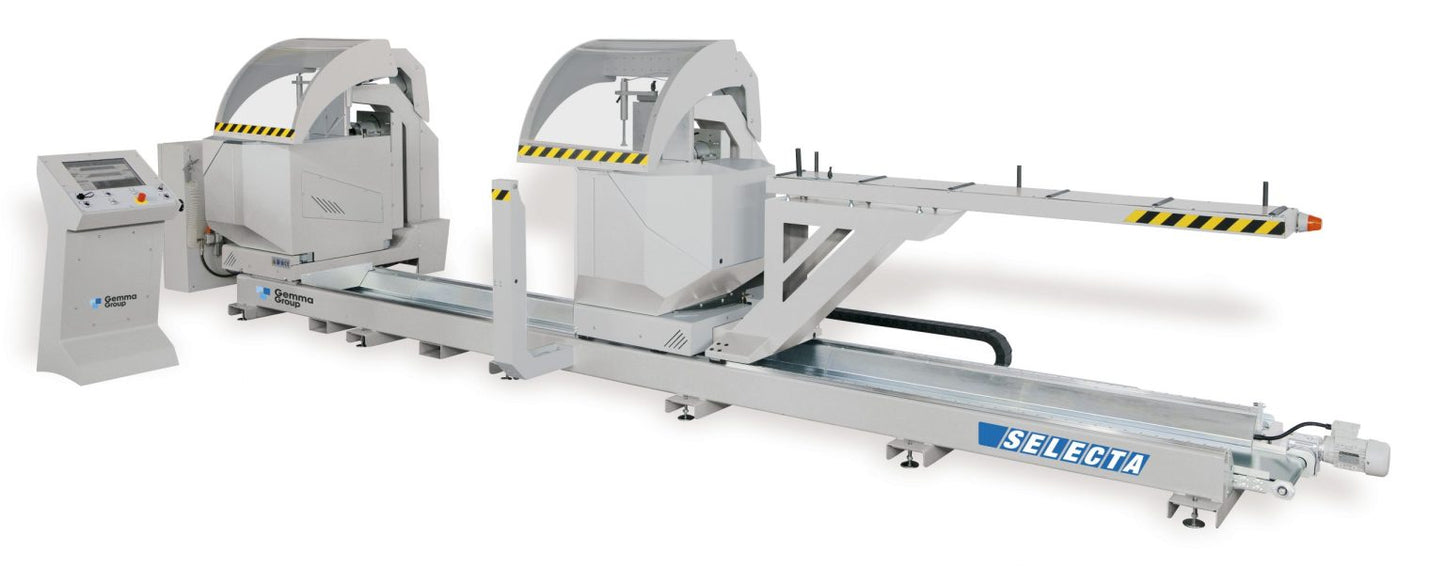

The Selecta P Double Head Cutting Machine is a state-of-the-art solution for complex profile cutting, featuring tilting and rotating ascending blades for precise compound cuts. With a fixed left unit and an automatic, numerically controlled mobile right unit, it delivers exceptional accuracy and versatility for sophisticated applications.

Key Features:

• Robust and Stable: Features a heavy-duty electrowelded steel basement for maximum rigidity and long-term cutting accuracy, ensuring stability during demanding compound cuts.
• Integrated Feeding System: Combines a feeding roller conveyor with the automatic mobile head for seamless material flow and high-throughput processing of even complex profiles.
• Retractable Central Support: Includes a central intermediate retractable pneumatic support to provide additional stability for profiles, especially during intricate cutting operations.
• Secure Vertical Clamping: Equipped with 4 vertical pneumatic clamps to firmly secure the workpiece from above, crucial for accurate compound angle cuts.
• Precise Axis Control: Axes movements are controlled by high-performance brushless motors, ensuring exceptional accuracy and repeatability for all positioning and cutting parameters.
• Smooth Mobile Head Movement: The mobile head travels on precision linear guides, guaranteeing consistent and accurate positioning along the entire cutting length for precise cuts, including compound angles.
• Software-Controlled Compound Cuts: Pneumatic tilting and manual pivoting of the ascending blades are precisely controlled by the intuitive software interface, enabling a wide range of complex compound cuts.
• Efficient Cutting Lubrication: Microdrop cutting lubrication system delivers pure oil directly to the cutting point of both blades, maximizing blade performance and extending blade life while minimizing lubricant consumption, even during demanding cuts.
• High-Performance Ascending Blades: Includes 2 high-quality Ø 600 mm ascending blades, engineered for clean, precise cuts from below and long-lasting performance in demanding applications.
• Advanced Control Panel:

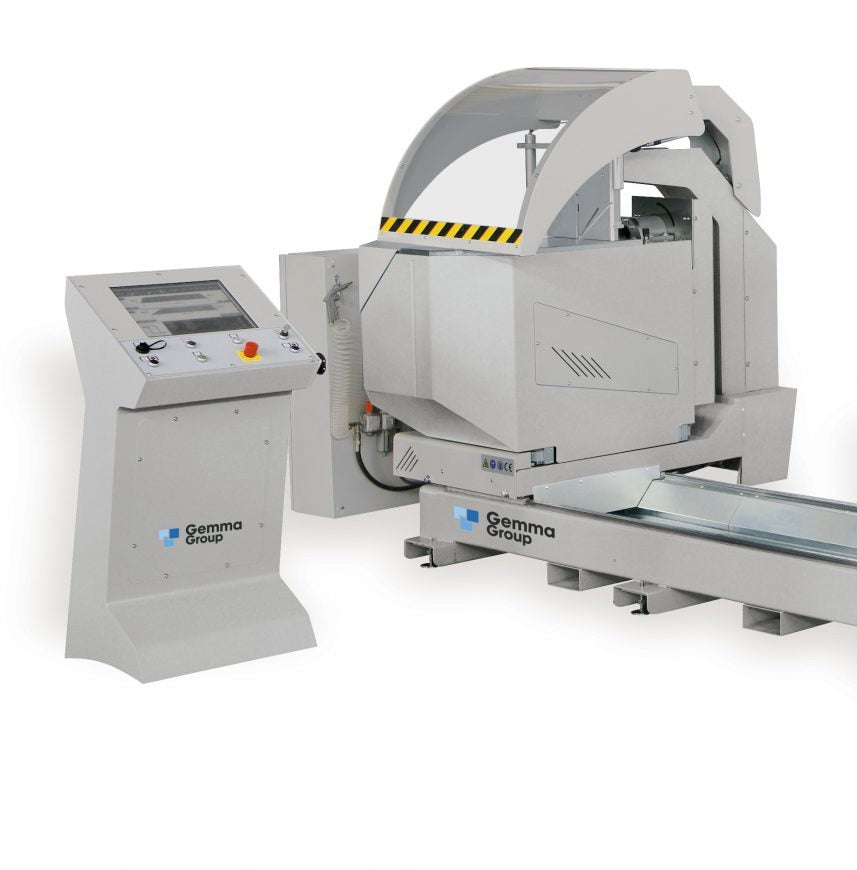

  • Latest generation electronic control unit with a user-friendly 10.4” color touchscreen interface, providing intuitive control over all machine functions.
  • Dedicated 1-axis Windows PC for seamless interface and comprehensive electronic axes management, enabling the programming and execution of complex cutting sequences.
  • HICAM 2 Software: Powerful and intuitive software suite for uploading and running intricate machining programs, managing detailed cutting lists, and visualizing profile/workpiece data for error-free compound cutting operations.
  • Comprehensive Connectivity:** Ethernet, Wi-Fi, and teleassistance capabilities for remote support, diagnostics, and efficient data transfer, ensuring maximum uptime.
  • Convenient Network Ports:** Equipped with RJ 45 and USB ports for seamless integration into existing network infrastructure and easy data exchange.
• Comprehensive Safety: Integral cutting area protections with automatic opening and closing mechanisms, ensuring a safe working environment and full compliance with stringent CE safety regulations.
• Protected Electrical System: Features a robust electrical cabinet with IP 55 protection, safeguarding electrical components from dust and moisture for enhanced durability and operational safety.

General Specifications:

• Blade Diameter: 600 mm
• Motor Power (x2): 3 kW
• Machine Weight: 3,400 kg
• Machine Dimensions: 6,950 x 1,850 x 2,150 mm

Cutting Capacity:

Positioning Axes:

• X-axis (Mobile Head Stroke): 5,000 mm / 6,000 mm (depending on model)
• X-axis Speed: 25 m/min
• Tilting Angle (Y and Z axes): 90° - 135°
• Pivoting Angle (A and B axes): 40° - 157.5°

Cutting Unit Specifications:

• Blade Diameter: 600 mm

• Shaft Diameter: 30 mm

• Blade Revolutions: 2,800 rpm

• Max Cutting Speed: 6 m/min

• Blade Output Management: Oleopneumatic

Cutting Specifications:

• Minimum Cutting Length (between blades): 450 mm
• Maximum Cutting Length (between blades): 5,000 mm / 6,000 mm (depending on model)
• Under and Oversize Cuts: Possible via software for optimized material utilization.

Power Supply:

• Electric Power: 400 V / 60 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 150 Nl
• CSA Compliant

Optional Extras:

• 76.14.32 / 76.14.33: Extension Length 1 m, increasing the maximum cutting length (specify model).
• 76.11.36: Additional High-Performance Blade Ø 600 mm.
• 76.52.19: Profile Final Support for enhanced accuracy on the trailing end of cut pieces, especially important for angled cuts.
• 76.52.16: Couple of Horizontal Clamps, providing additional securement options for specific profile geometries.
• 76.52.21: Motorized Belt Conveyor for Swarf Removal, automating the efficient removal of cutting waste, maintaining a clean and safe workspace during complex cutting operations.
• 76.42.17: Fixed Head Roller Conveyor 2.5 m, providing continuous support for long profiles on the fixed head side, improving cutting quality for angled cuts.
• 76.14.34: Label Printer for easy and accurate identification and tracking of cut pieces with compound angles, streamlining downstream processes.
• 76.11.33: Safety Protection with Photocells, providing an additional layer of operator safety by automatically stopping the machine if the cutting area is breached during operation.
• 76.72.90: Oil Tank 25 l for extended periods between lubricant refills, crucial for continuous operation during complex cutting tasks.
• 76.72.89: Autotransformer for Special Voltage (230V/480/600V), ensuring seamless compatibility with various industrial power supply systems.

Ideal For:

• High-end industrial cutting of aluminum and PVC profiles requiring precise compound angles.
• Applications in architectural and design-focused manufacturing, such as curtain walls and complex window/door systems.
• Manufacturing environments prioritizing maximum versatility, accuracy, and automation for intricate cutting tasks.

Experience the ultimate in cutting versatility and precision with the Selecta P Double Head Cutting Machine!
