Selecta AL – High-Capacity 5-Axis Double Head Cutting Machine for Compound Cuts (Ø 1050 mm Blades) with Numerical Control

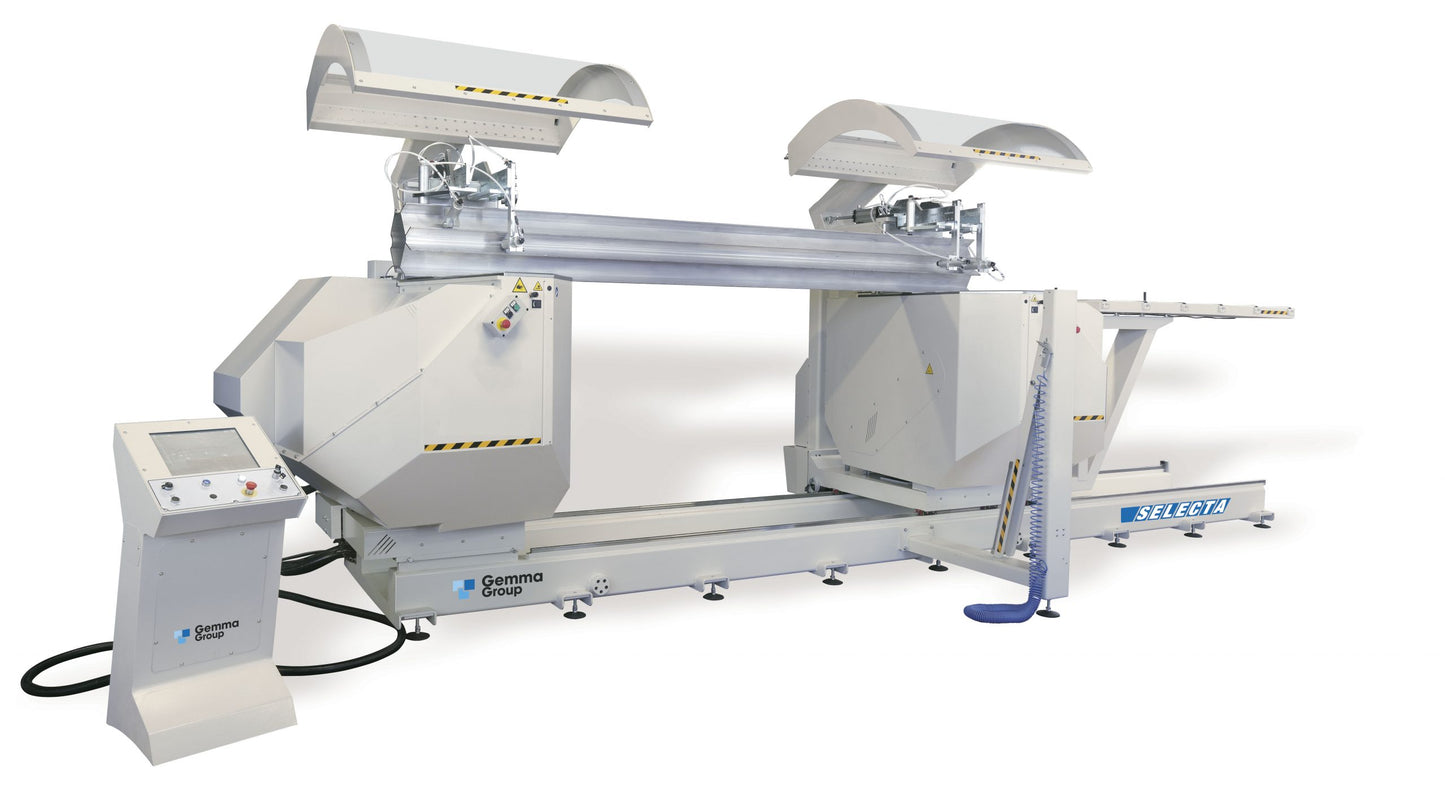

The Selecta AL represents the pinnacle of high-capacity, high-precision 5-axis double head cutting technology. Equipped with massive Ø 1050 mm ascending blades and controlled by advanced numerical control, it's engineered for demanding compound cutting applications on large profiles, delivering unmatched power, accuracy, and automation.

Key Features:

• Ultra-Robust Construction: Features a heavy-duty electrowelded steel basement designed for maximum stability and precision when machining large workpieces.

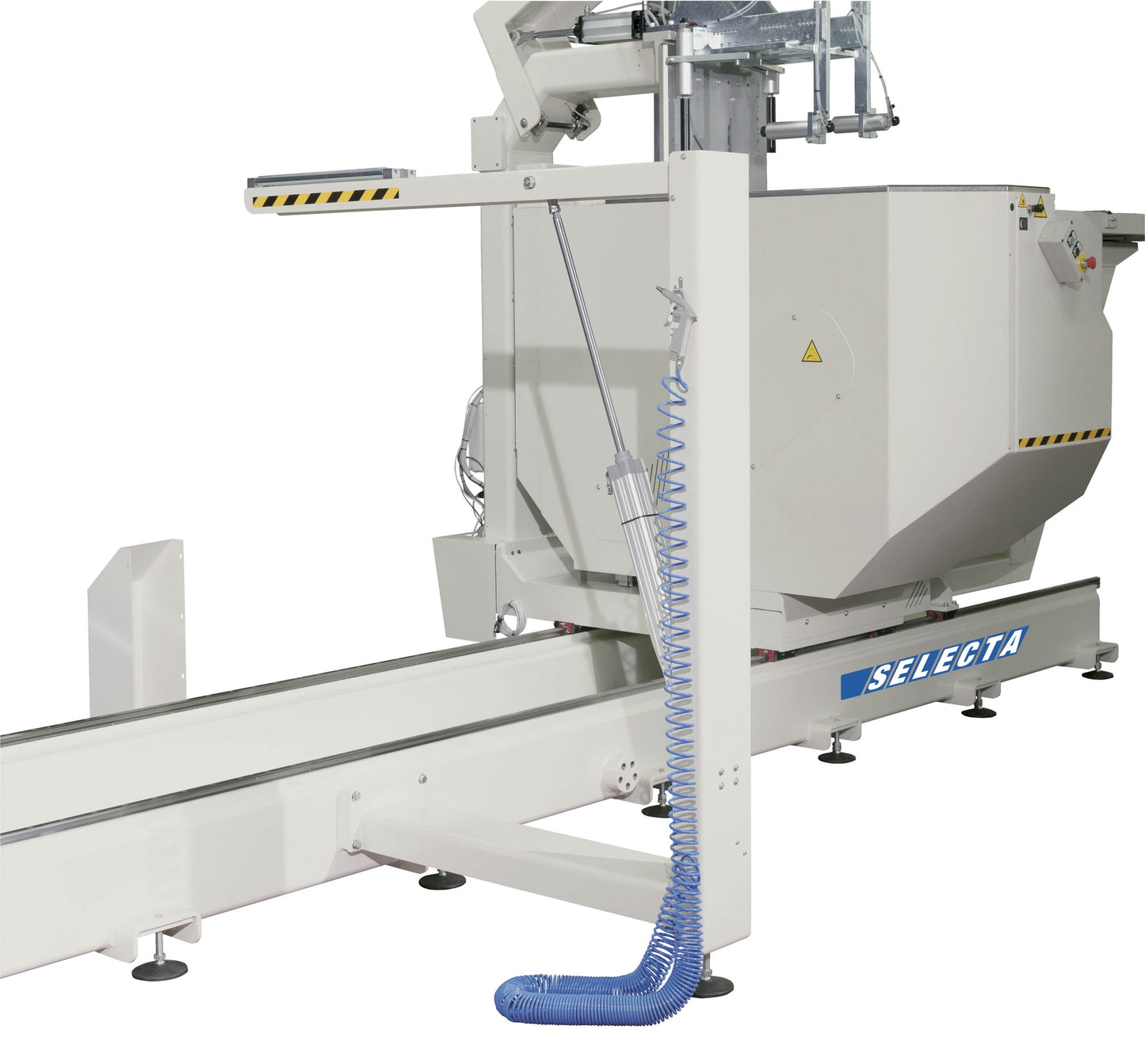

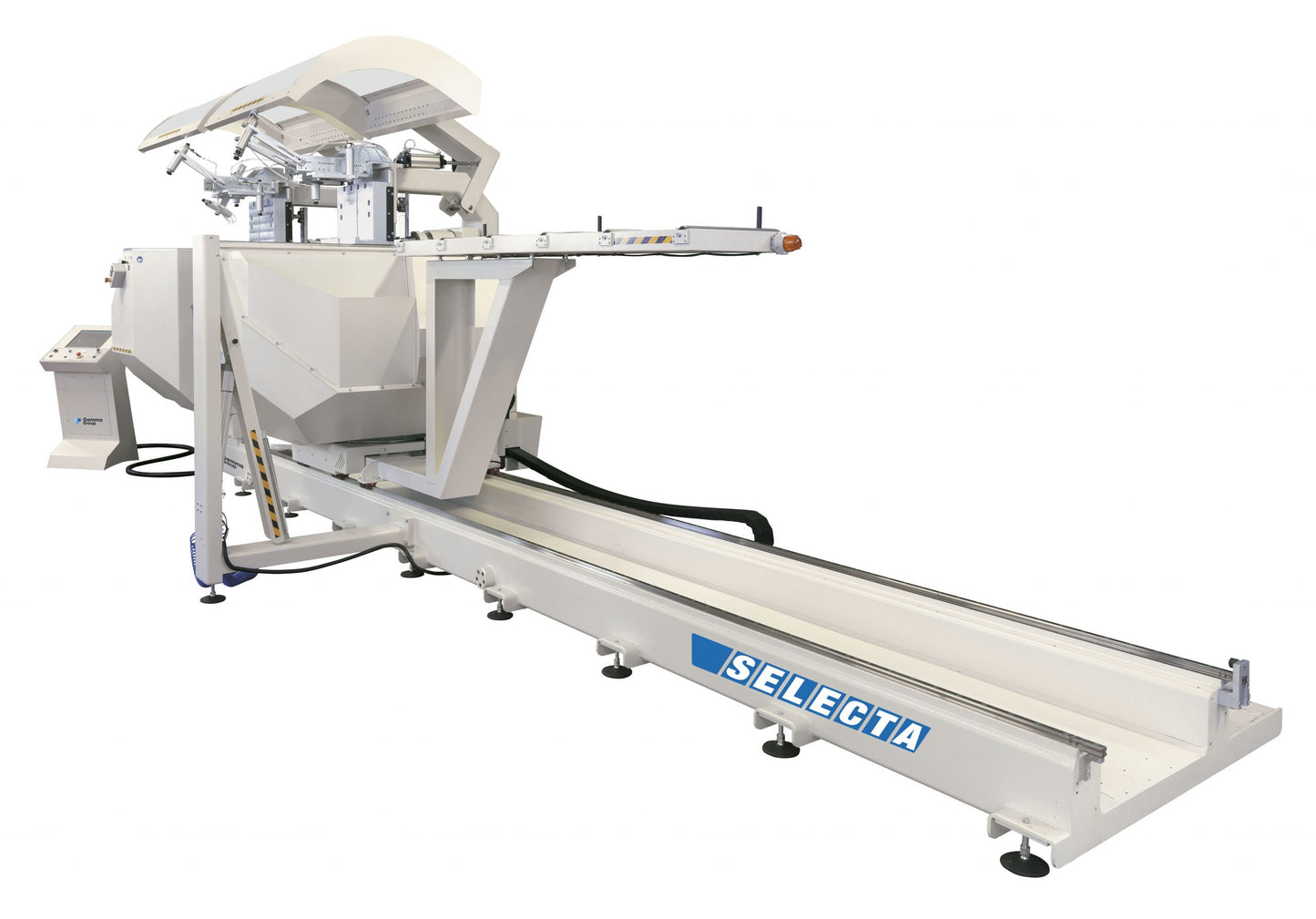

• Integrated Feeding System: Combines a feeding roller conveyor with the automatic mobile head for seamless and efficient material handling of large profiles.
• Retractable Central Support: Includes a central intermediate retractable pneumatic support to provide essential stability for large and heavy profiles during complex cuts.

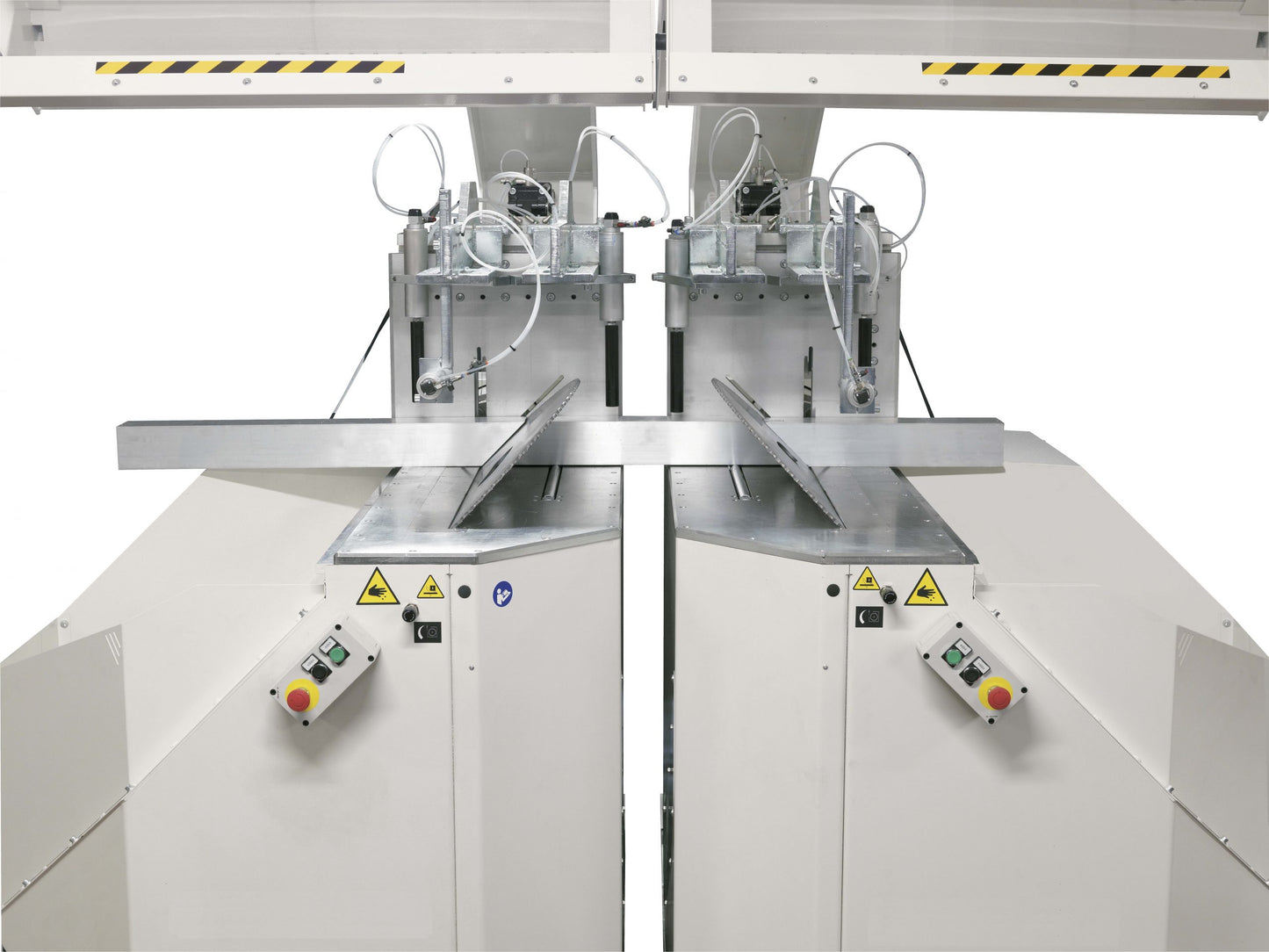

• Dual Clamping System: Features 4 vertical pneumatic clamps and 4 horizontal pneumatic clamps, ensuring exceptionally secure workpiece holding for demanding compound angle cutting.
• Precise Numerical Control: Axes movements are controlled by high-performance brushless motors and a sophisticated numerical control system, guaranteeing the highest levels of accuracy and repeatability for intricate cutting geometries.

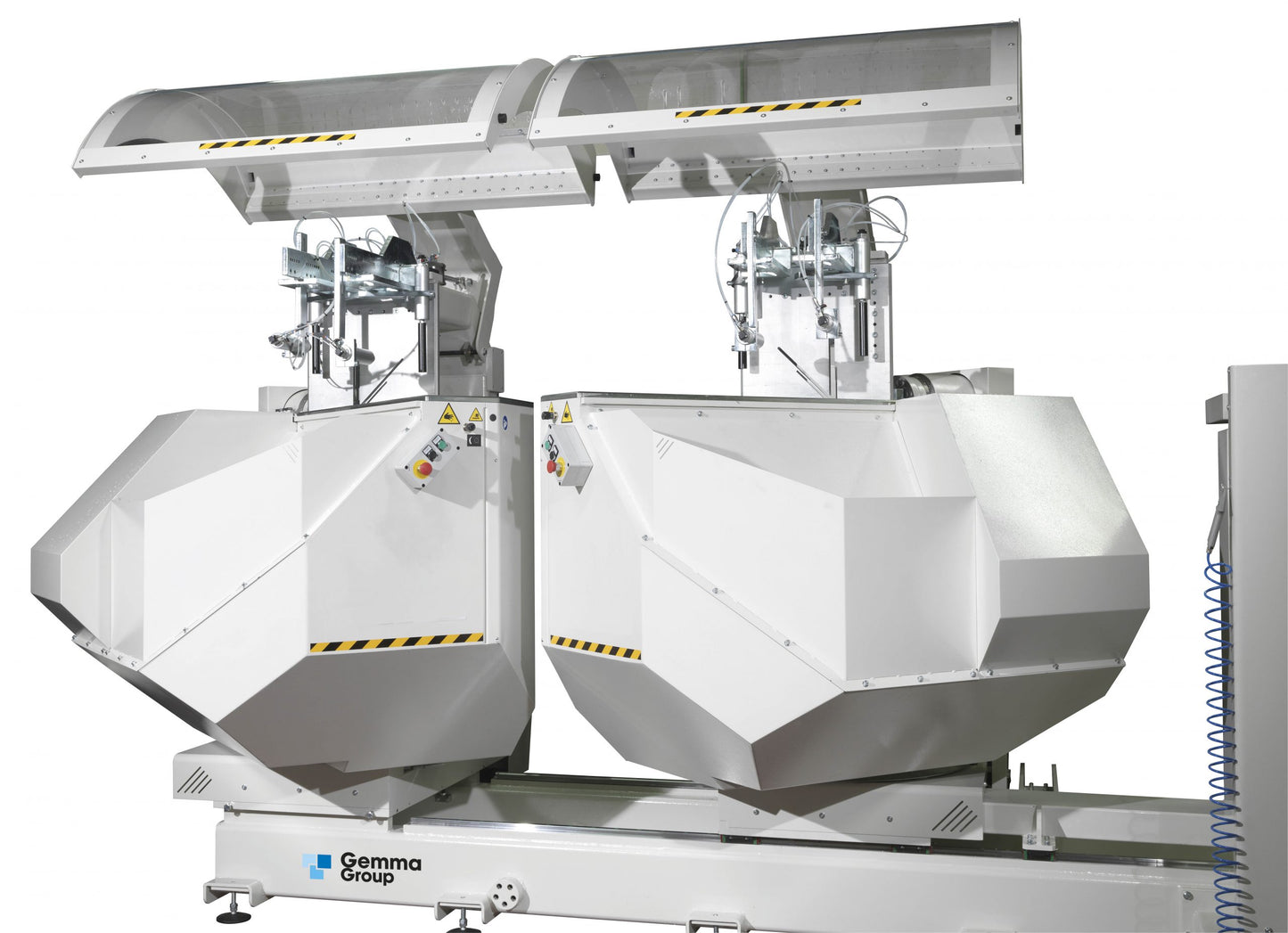

• Independent Electronic Angle Control: Electronic pivoting and tilting of both massive cutting heads are independently controlled by advanced software, enabling a wide range of complex compound cuts on large profiles.
• Efficient Cutting Lubrication: Microdrop cutting lubrication system delivers pure oil directly to the cutting point of the large blades, maximizing cutting performance and extending blade life.

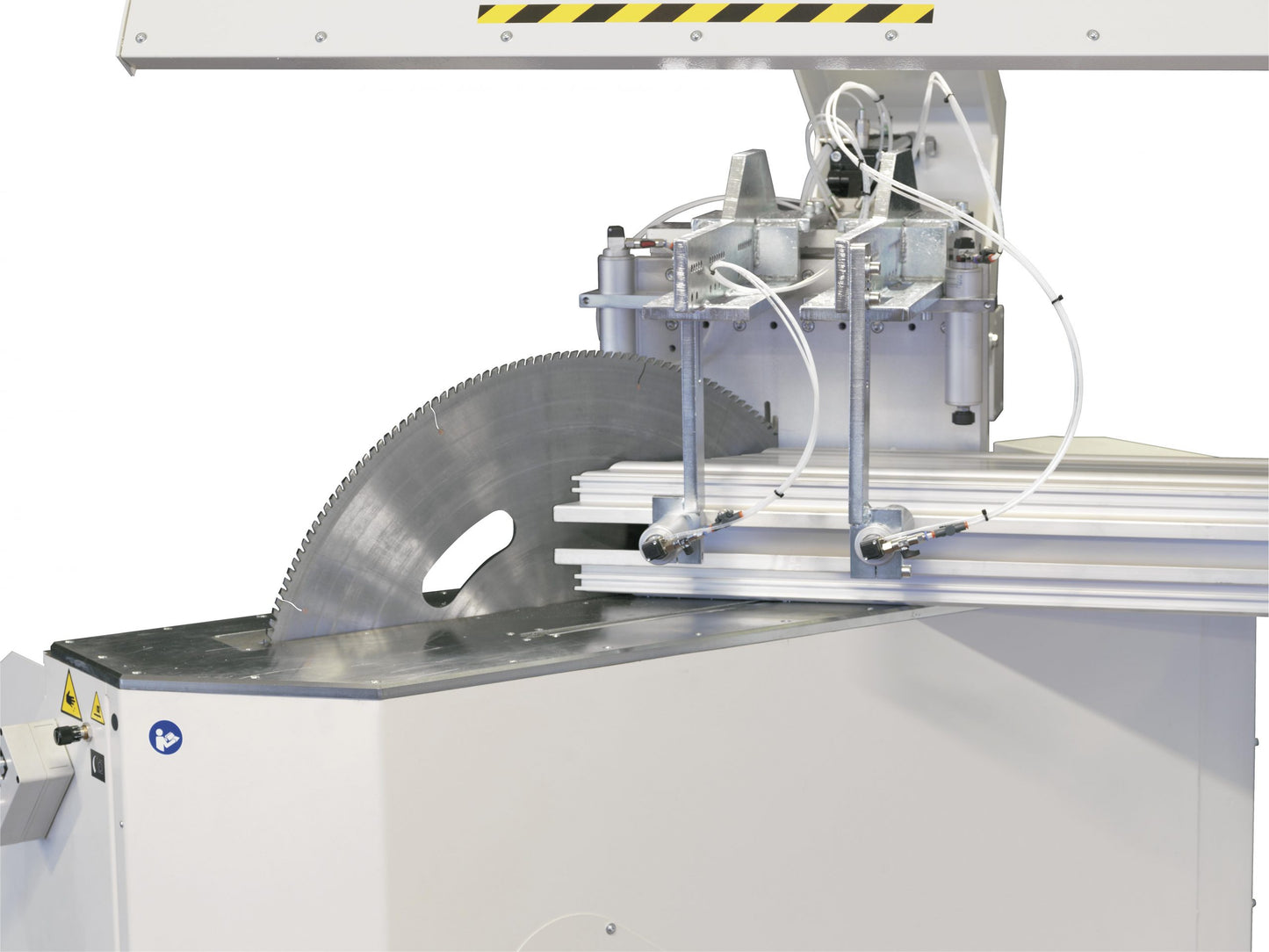

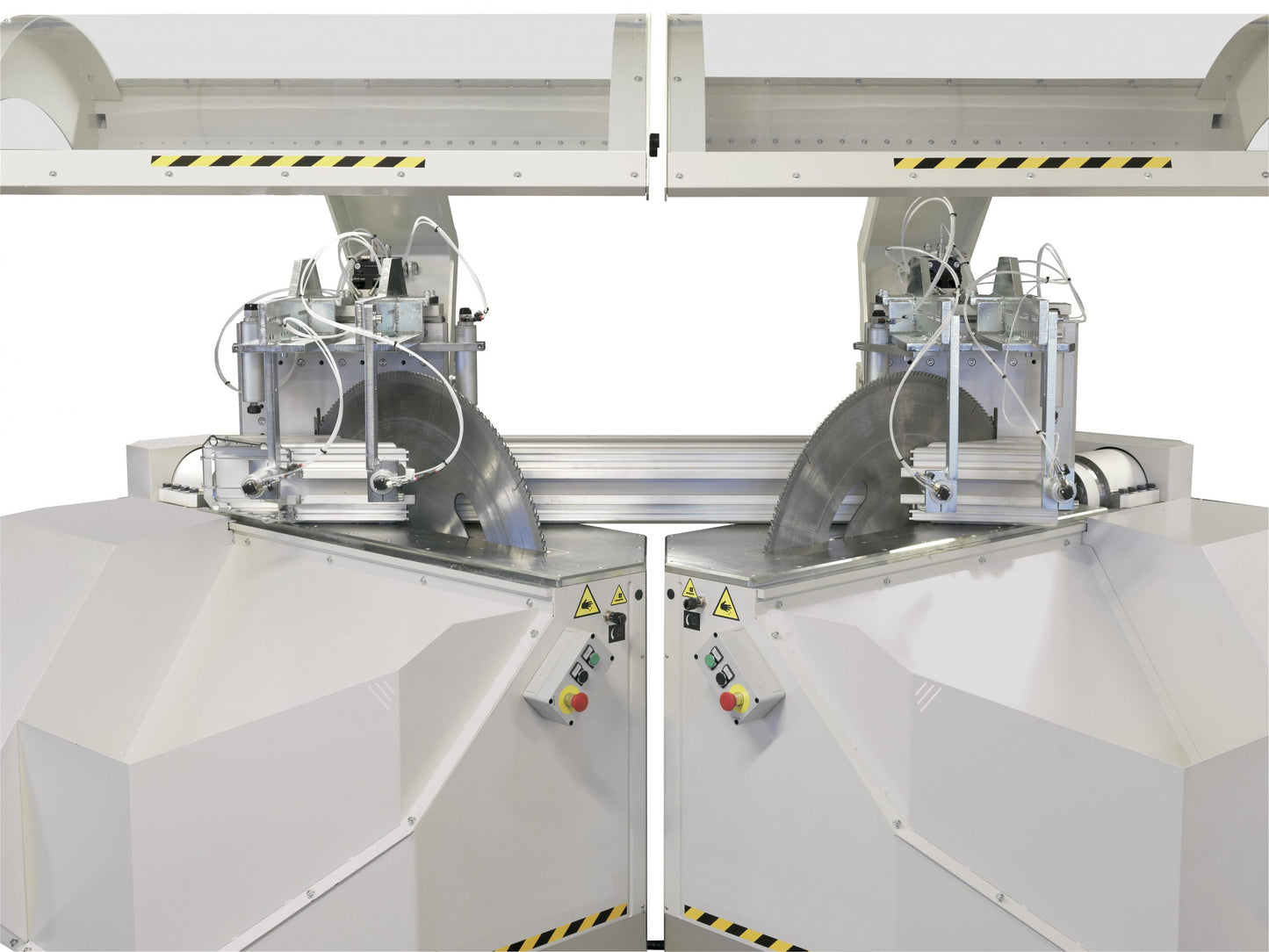

• High-Capacity Blades: Includes 2 powerful Ø 1050 mm ascending blades, specifically designed for efficient and precise cutting of large profiles in compound angle applications.
• Advanced 5-Axis Control Panel:

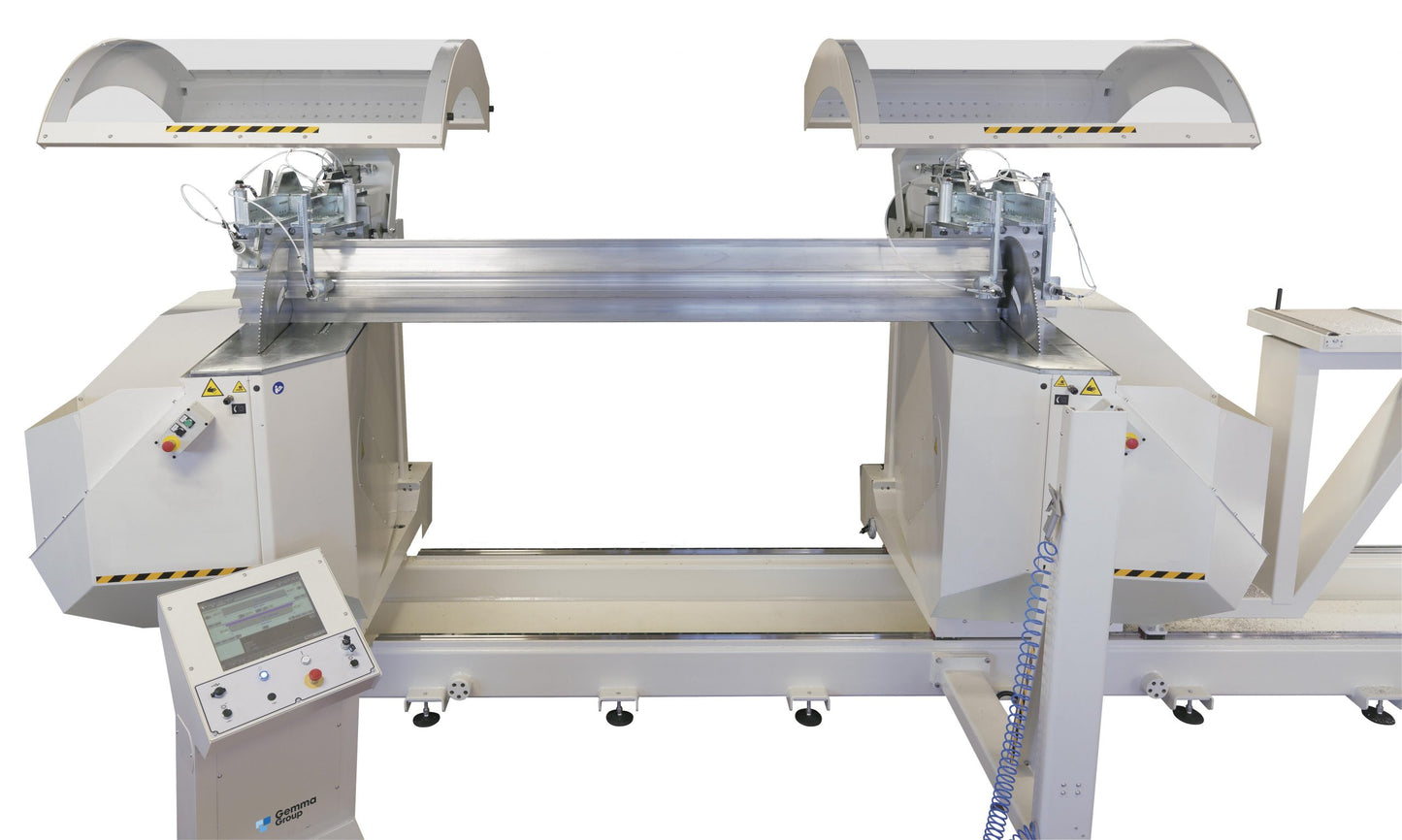

  • Latest generation electronic control unit with a user-friendly 10.4” color touchscreen interface, providing intuitive control over all machine functions and the numerical control system.
  • Dedicated 5-axis Windows PC for seamless interface and comprehensive electronic axes management, enabling the execution of highly complex cutting programs.
  • HICAM 2 Software: Powerful and intuitive software suite for uploading and running intricate machining programs, managing detailed cutting lists for large-scale production, and visualizing profile/workpiece data in 3D for error-free operation.
  • Comprehensive Connectivity:** Ethernet, Wi-Fi, and teleassistance capabilities for remote support, diagnostics, and efficient data transfer of large program files, ensuring maximum uptime.
  • Convenient Network Ports:** Equipped with RJ 45 and USB ports for seamless integration into existing network infrastructure and easy data exchange.
• Advanced Safety Features: Integral cutting area protections with automatic opening and closing mechanisms, along with an optical barrier for enhanced operator safety, ensuring full compliance with stringent CE safety regulations.
• Protected Control Cabinet: Features a robust electrical cabinet with IP 55 protection, safeguarding sensitive electronic components from dust and moisture in demanding industrial environments.

General Specifications:

• Blade Diameter: 1050 mm
• Motor Power (x2): 15 kW
• Machine Weight: 6,000 kg
• Machine Dimensions: 10,650 x 2,700 x 3,000 mm

Cutting Capacity:

Positioning Axes:

• X-axis (Mobile Head Stroke): 6,000 mm
• X-axis Speed: 25 m/min
• Tilting Angle (A and B axes): 90° - 135°
• Pivoting Angle: 40° - 157.5°

Cutting Unit Specifications:

• Blade Diameter: 1050 mm
• Shaft Diameter: 30 mm
• Blade Revolutions: 1,800 rpm
• Max Cutting Speed: 6 m/min
• Blade Output Management: Oleopneumatic
• Motor Power: 15 kW

Cutting Specifications:

• Minimum Cutting Length (between blades): 750 mm
• Maximum Cutting Length (between blades): 6,000 mm
• Under and Oversize Cuts: Possible via software for optimized material utilization of large profiles.

Power Supply:

• Electric Power: 400 V / 50 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 194 Nl

Optional Extras:

• 76.52.38: Motorized Belt Conveyor for Swarf Removal, designed for efficient removal of large volumes of cutting waste from large profiles.
• 76.14.31: Additional Heavy-Duty Saw Blade Ø 1050 mm, ensuring continuous operation for high-demand production.
• 76.11.37: Profile Final Support, providing essential support for large profiles at the end of the cutting cycle, ensuring accuracy.
• 76.42.17: Label Printer for easy and accurate identification and tracking of large cut pieces.
• 76.11.33: Oil Tank 25 l, providing an increased lubricant capacity for extended operation on large-scale projects.
• 76.72.88: Autotransformer for Special Voltage (230V/480/600V), ensuring seamless compatibility with various industrial power supply systems for high-power operation.

Ideal For:

• High-capacity, high-precision cutting of large aluminum and PVC profiles in industrial settings.
• Applications requiring complex compound angles on large-scale projects.
• Manufacturing environments prioritizing maximum power, accuracy, automation, and safety for processing large profiles.

Experience the ultimate in large-scale cutting technology with the Selecta AL 5-Axis Double Head Cutting Machine!
