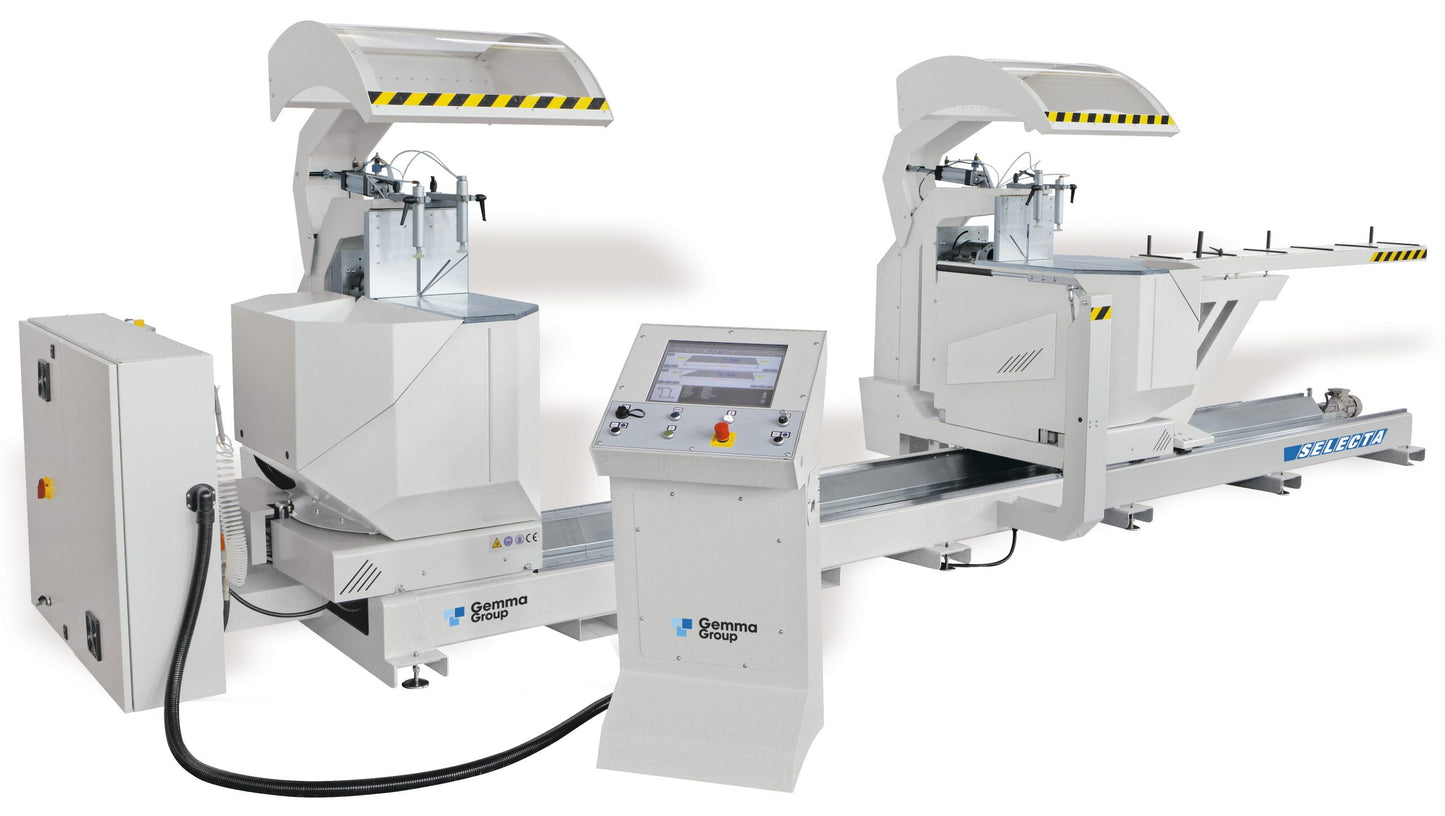

Selecta A – Advanced 5-Axis Double Head Cutting Machine for Compound Cuts      (Ø 600 mm Blades)

The Selecta A is a state-of-the-art 5-axis double head cutting machine engineered for complex compound cuts with its tilting and rotating ascending Ø 600 mm blades. Featuring independent electronic control of pivoting and tilting, along with a user-friendly interface, it delivers unparalleled precision and versatility for the most intricate profile machining.

Key Features:

  • Heavy-Duty Construction: Features a robust electrowelded steel basement for maximum stability and long-term accuracy during demanding operations.
  • Integrated Feeding System: Combines a feeding roller conveyor with the automatic mobile head for smooth and efficient material flow.

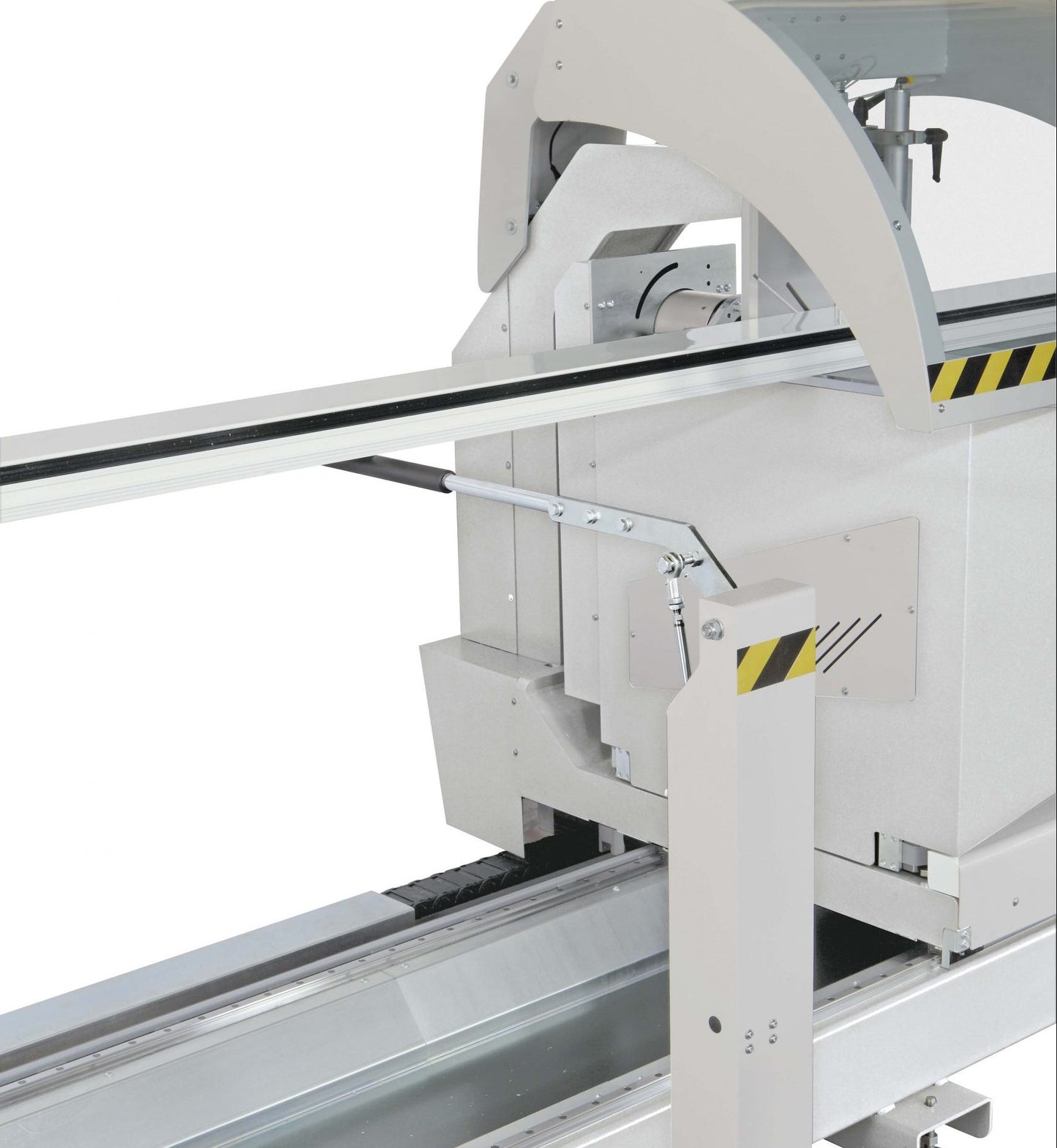

  • Retractable Central Support: Includes a central intermediate retractable pneumatic support to provide enhanced stability for various profile shapes and sizes.

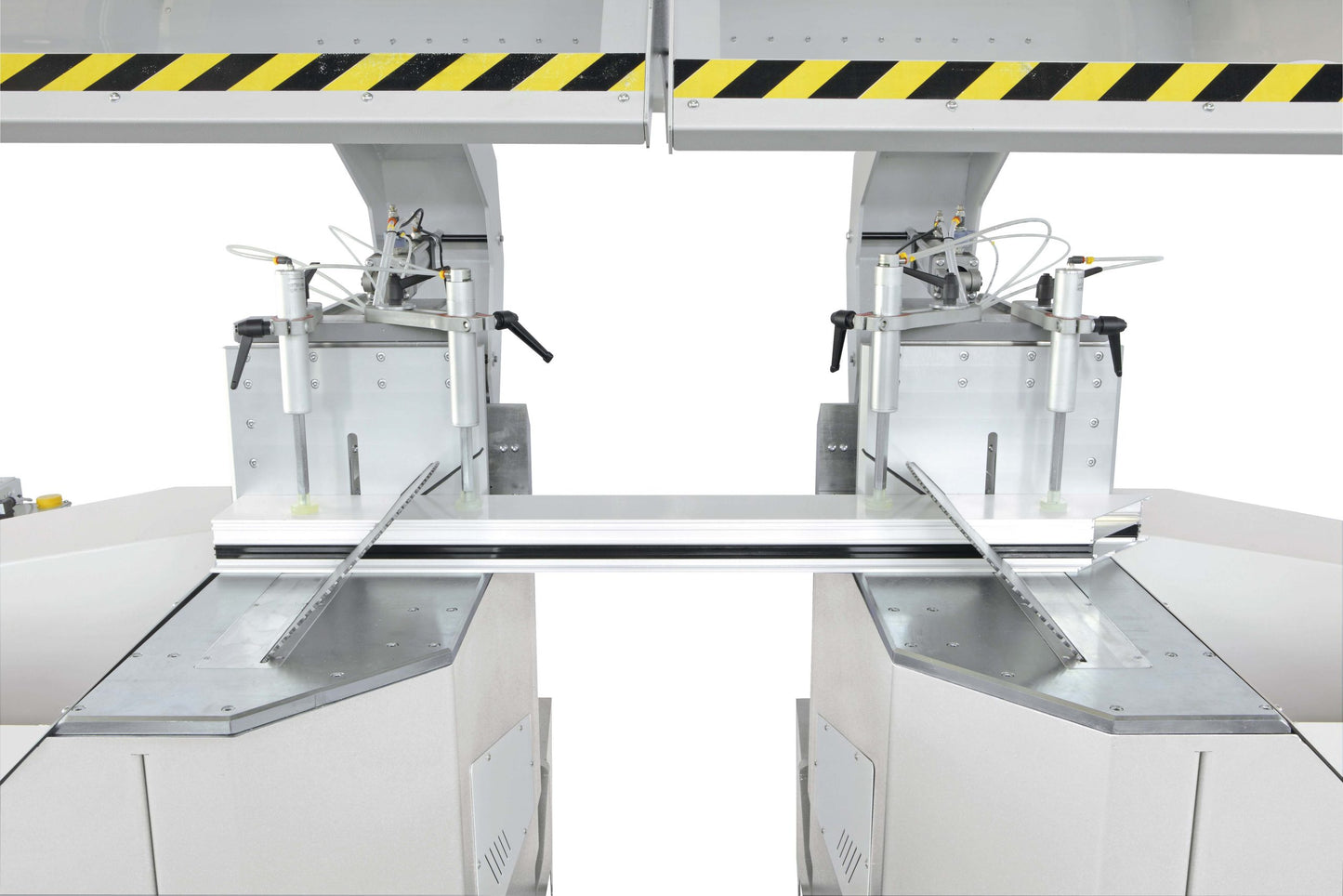

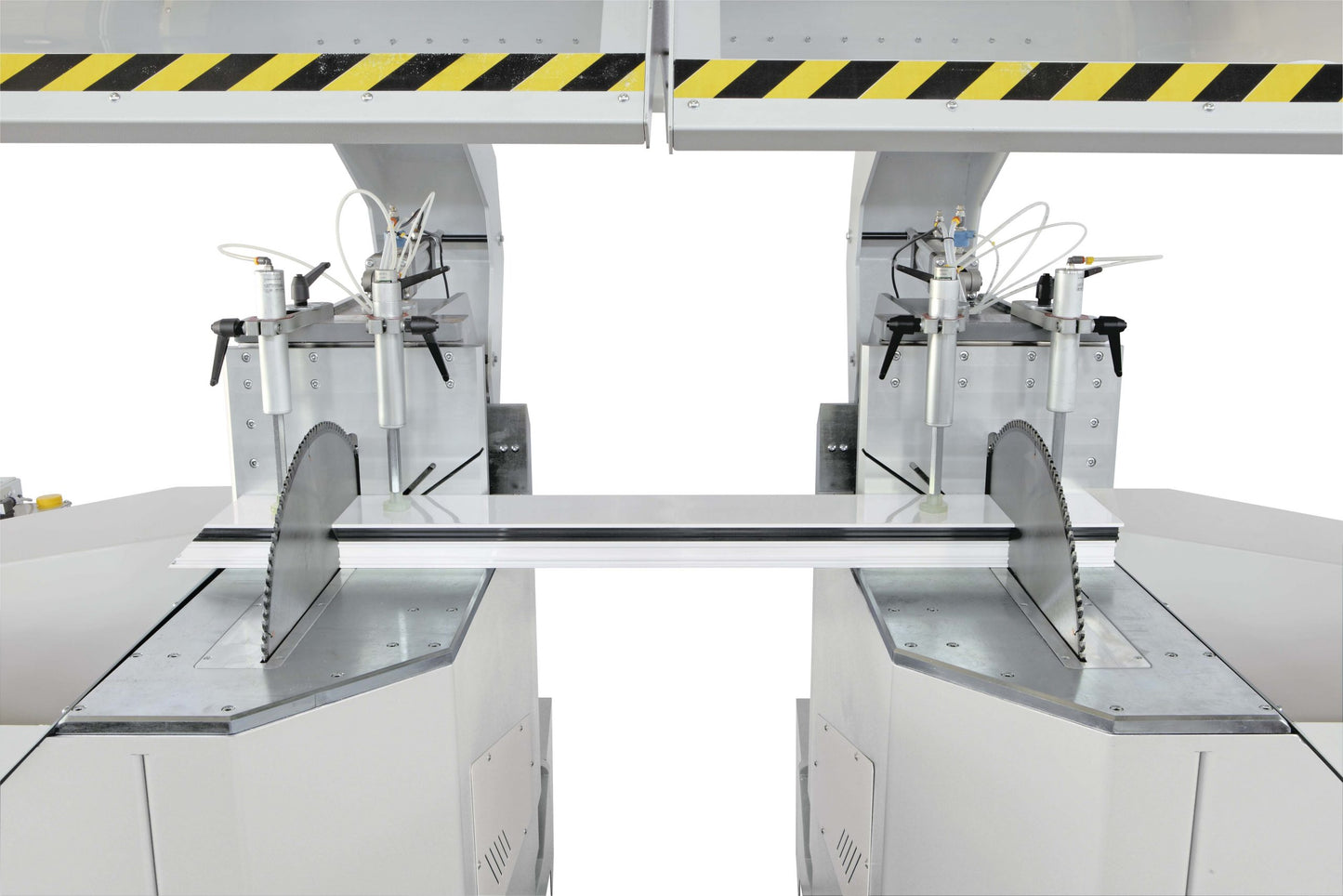

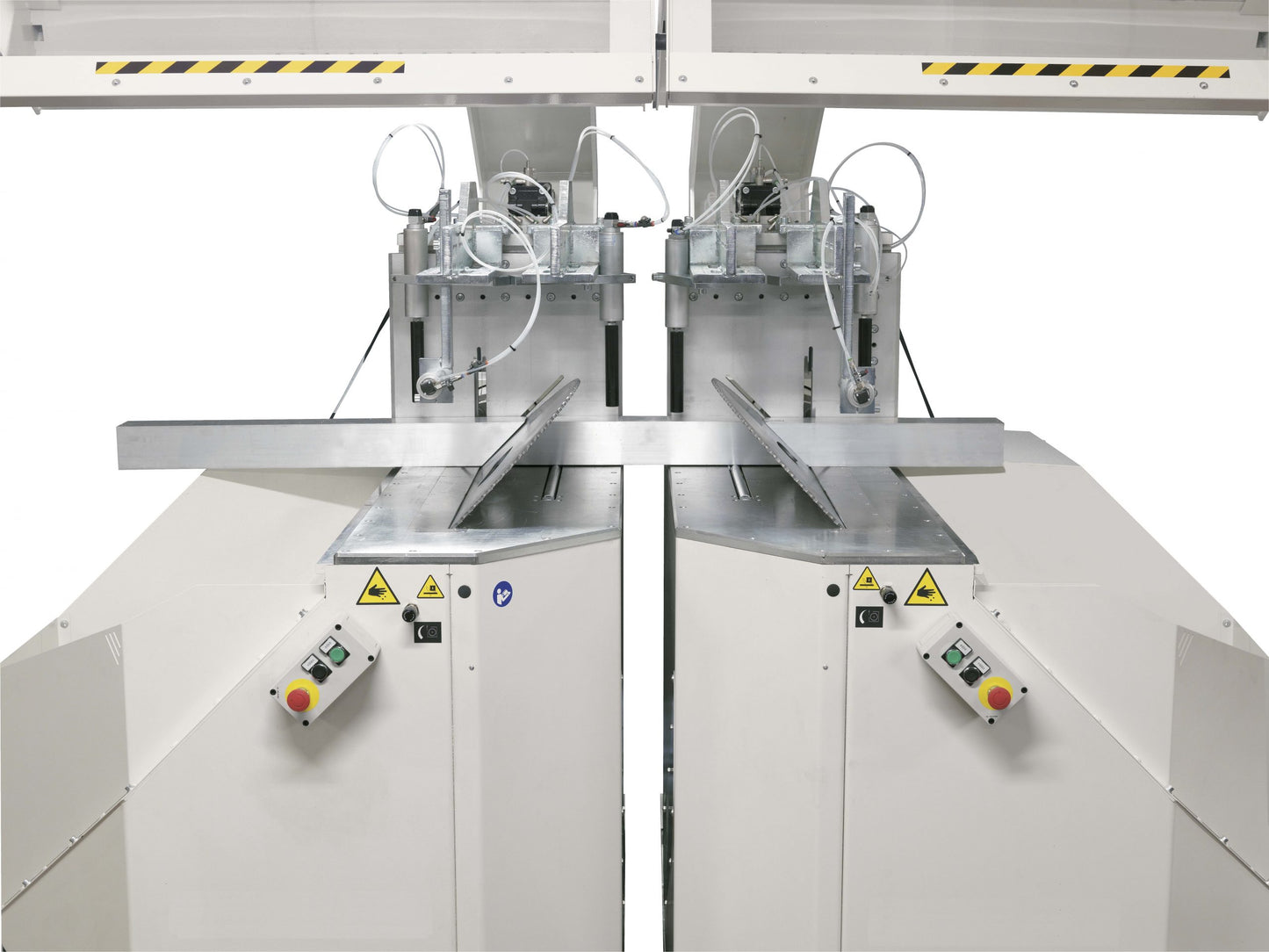

  • Secure Vertical Clamping: Equipped with 4 vertical pneumatic clamps to firmly secure workpieces for precise compound angle cutting.
  • Precise 5-Axis Control: Axes movements are controlled by high-performance brushless motors, ensuring exceptional accuracy and repeatability for complex cutting geometries.

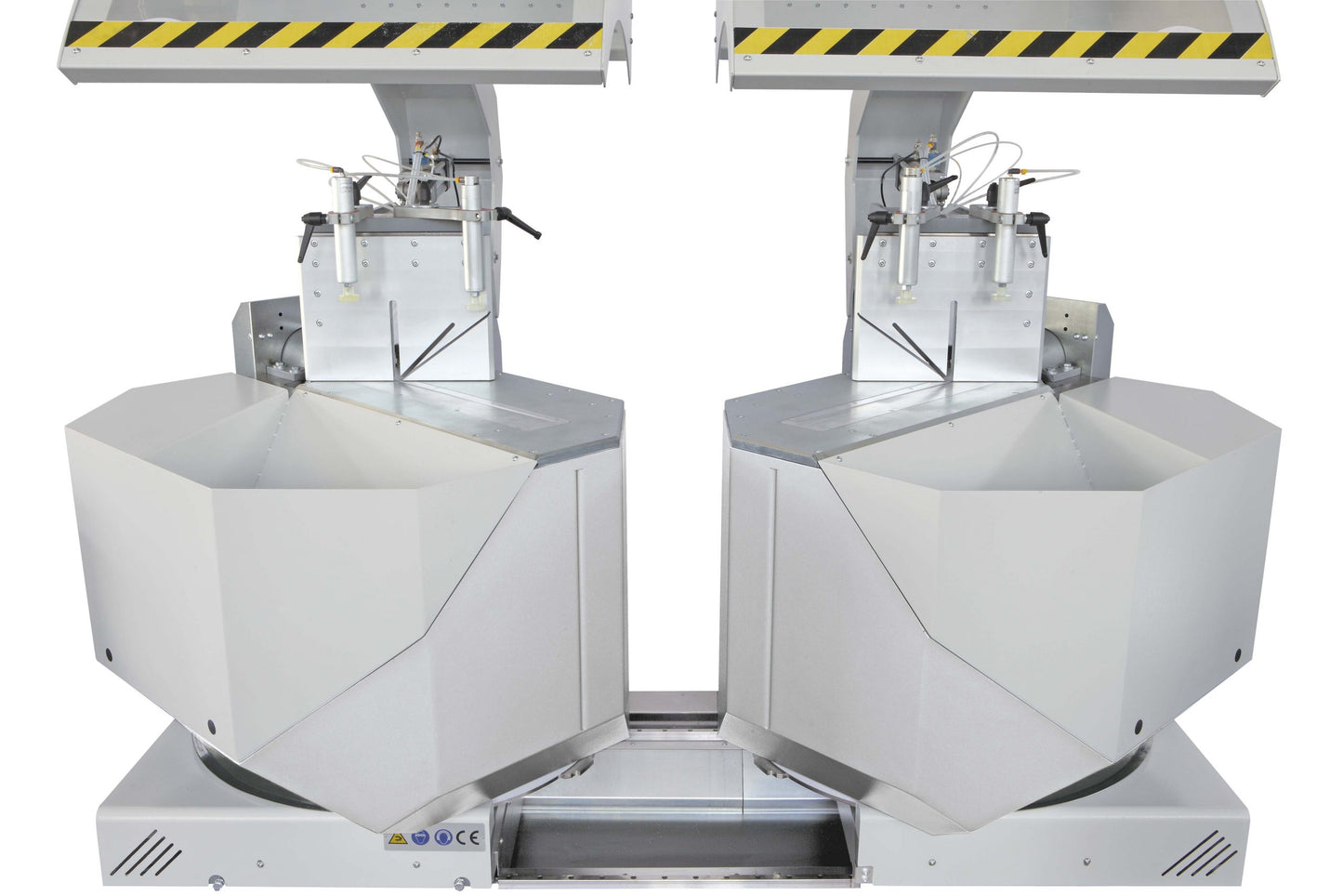

  • Independent Electronic Angle Control: Electronic pivoting and tilting of both cutting heads are independently controlled by advanced software, enabling intricate compound cuts.
  • Efficient Cutting Lubrication: Microdrop cutting lubrication system delivers pure oil directly to the cutting point, maximizing blade performance and extending blade life.

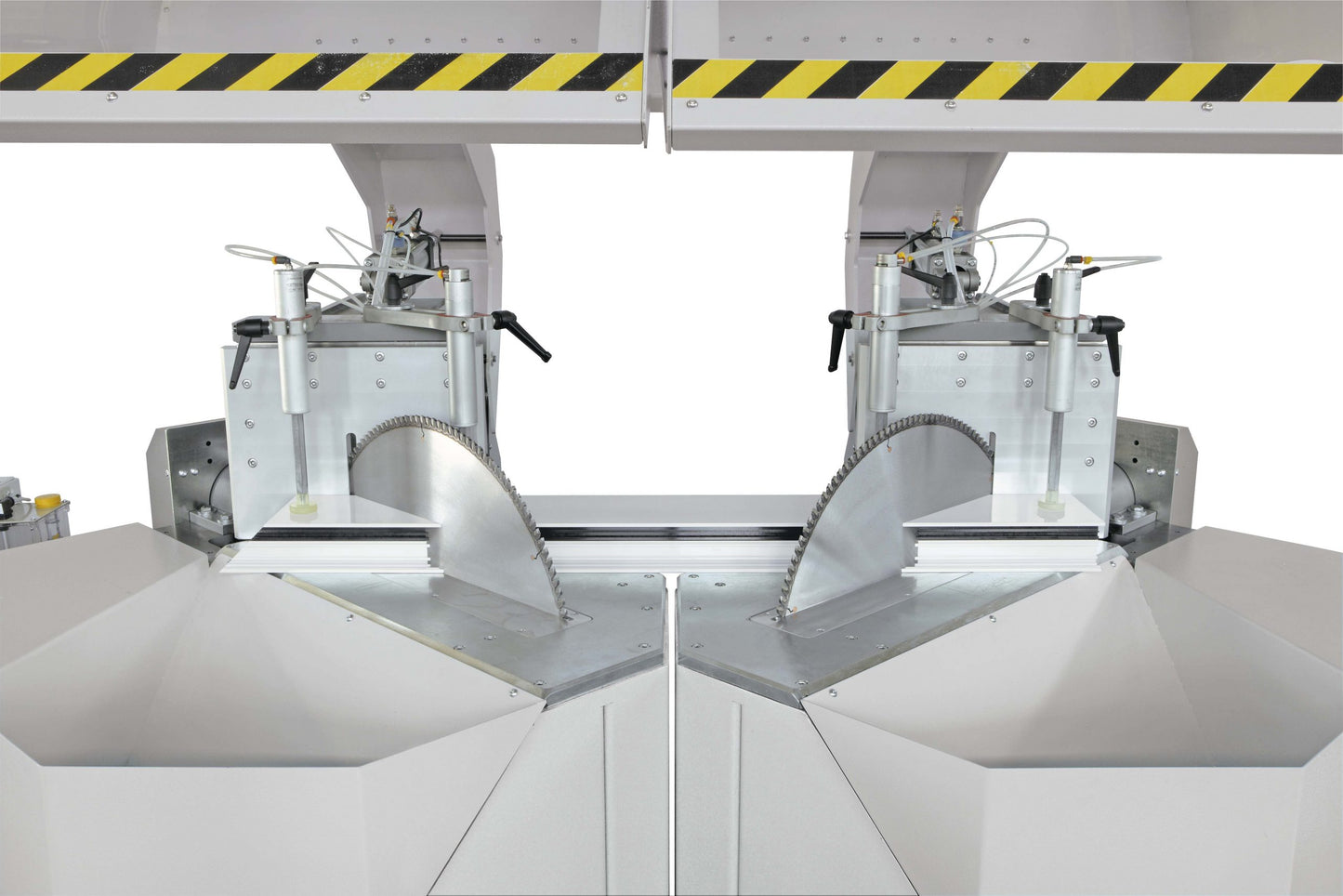

  • High-Performance Blades: Includes 2 high-quality Ø 600 mm ascending blades, optimized for clean and accurate cuts in compound angle applications.
  • Advanced 5-Axis Control Panel:

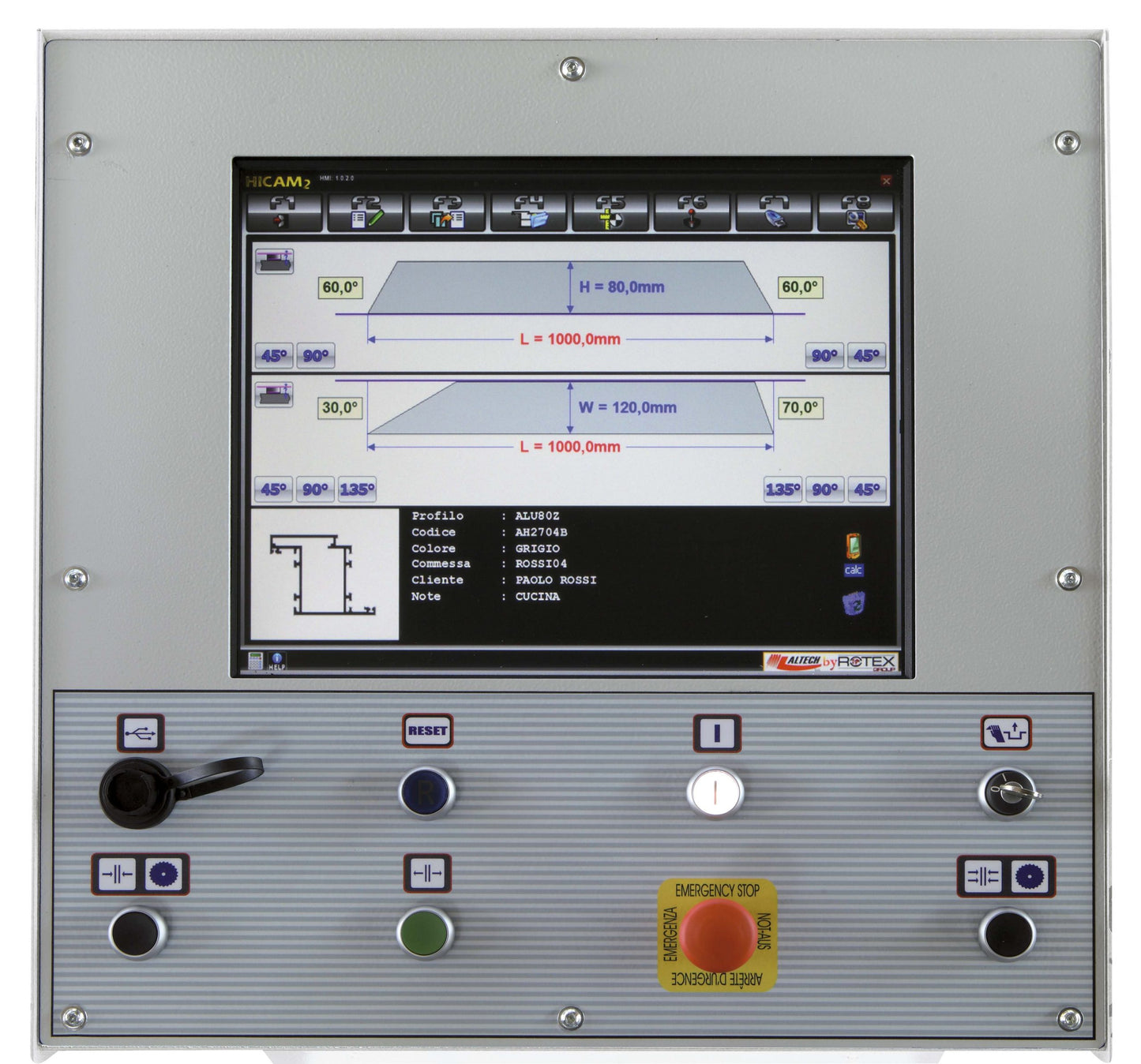

    • Latest generation electronic control unit with a user-friendly 10.4” color touchscreen interface, providing intuitive control over all machine functions.
    • Dedicated 5-axis Windows PC for seamless interface and comprehensive electronic axes management, enabling the execution of complex cutting programs.
    • HICAM 2 Software: Powerful and intuitive software suite for uploading and running intricate machining programs, managing detailed cutting lists, and visualizing profile/workpiece data in 3D for error-free operation.
    • Comprehensive Connectivity:** Ethernet, Wi-Fi, and teleassistance capabilities for remote support, diagnostics, and efficient data transfer, ensuring maximum uptime.
    • Convenient Network Ports:** Equipped with RJ 45 and USB ports for seamless integration into existing network infrastructure and easy data exchange.
  • Comprehensive Safety: Integral cutting area protections with automatic opening and closing mechanisms, ensuring a safe working environment and full compliance with stringent CE safety regulations.
  • Protected Electrical System: Features a robust electrical cabinet with IP 55 protection, safeguarding electrical components from dust and moisture for enhanced durability and operational safety.

General Specifications:

  • Blade Diameter: 600 mm
  • Motor Power (x2): 3 kW
  • Machine Weight: 3,400 kg
  • Machine Dimensions: 6,950 x 1,850 x 2,150 mm

Cutting Capacity:

Angle Cutting Capacity (Width x Height)
90° 200 x 200 mm
400 x 150 mm / 450 x 90 mm
45° 170 x 170 mm
310 x 100 mm / 275 x 150 mm

Positioning Axes:

  • X-axis (Mobile Head Stroke): 5,000 / 6,000 mm (depending on model)
  • X-axis Speed: 25 m/min
  • Tilting Angle (A and B axes): 90° - 135°
  • Pivoting Angle: 40° - 57.5°

Cutting Unit Specifications:

  • Blade Diameter: 600 mm
  • Shaft Diameter: 30 mm
  • Blade Revolutions: 2,800 rpm
  • Max Cutting Speed: 6 m/min
  • Blade Output Management: Oleopneumatic
  • Motor Power: 3 kW

Cutting Specifications:

  • Minimum Cutting Length (between blades): 450 mm
  • Maximum Cutting Length (between blades): 5,000 / 6,000 mm (depending on model)
  • Under and Oversize Cuts: Possible via software for optimized material utilization.

Power Supply:

  • Electric Power: 400 V / 60 Hz (three-phase)
  • Air Compressed Supply: 7 Bar
  • Air Consumption per Cycle: Not specified
  • CSA Compliant

Optional Extras:

  • Extension Length 1 m, significantly increasing the maximum cutting length for processing longer profiles.
  • Additional High-Performance Blade Ø 600 mm, ensuring continuous operation and minimizing downtime for blade changes.
  • Profile Final Support, ensuring improved accuracy and preventing material sag at the end of the cutting cycle.
  • Couple of Horizontal Clamps, providing additional securement options for specific profile geometries.
  • Motorized Belt Conveyor for Swarf Removal, automating the efficient removal of cutting waste, maintaining a clean and safe workspace.
  • Fixed Head Roller Conveyor 2.5 m, providing continuous support for long profiles on the fixed head side, improving cutting quality.
  • Label Printer for easy and accurate identification and tracking of cut pieces, streamlining downstream processes.
  • Safety Protection with Photocells, providing an additional layer of operator safety by automatically stopping the machine if the cutting area is breached.
  • Oil Tank 25 l, increasing the capacity of the lubrication system for extended periods of uninterrupted operation.
  • Autotransformer for Special Voltage (230V/480/600V), ensuring seamless compatibility with various industrial power supply systems.

Ideal For:

  • High-volume, precision cutting of aluminum and PVC profiles requiring complex compound angles.
  • Applications in window, door, and facade manufacturing with intricate designs.
  • Manufacturing environments prioritizing maximum versatility, accuracy, and automation for complex profile machining.

Experience the ultimate in cutting technology with the Selecta A 5-Axis Double Head Cutting Machine!
