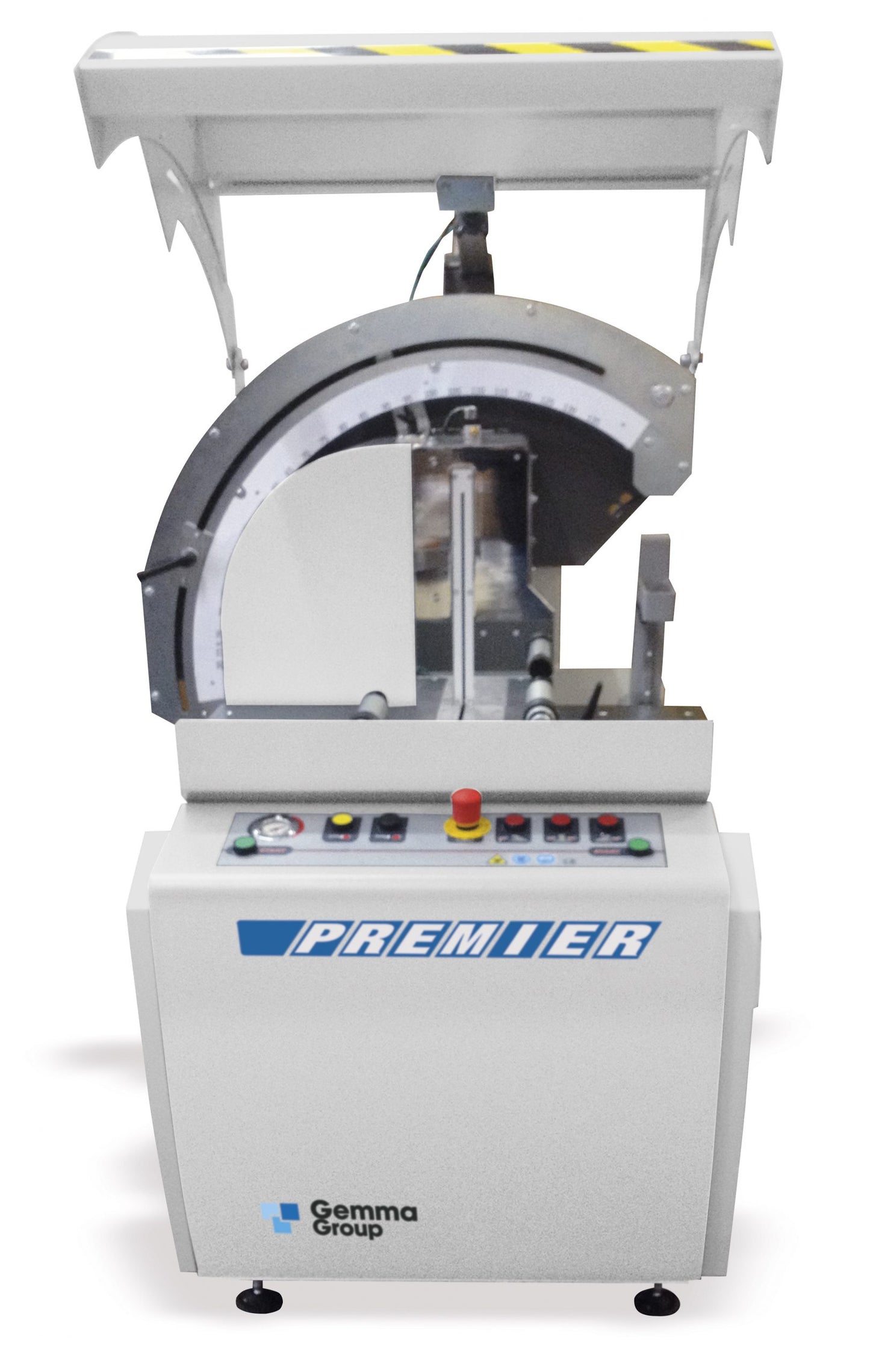

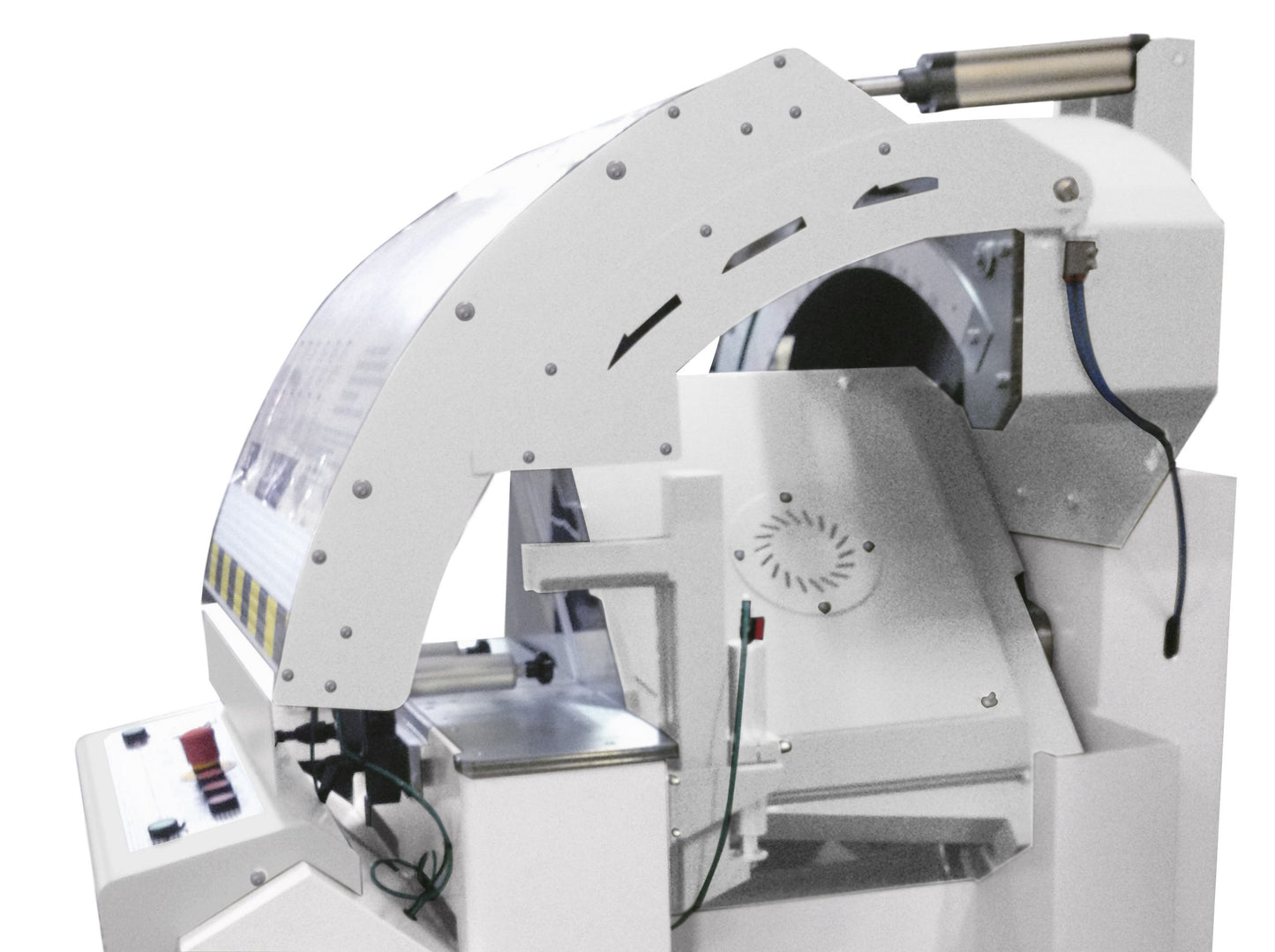

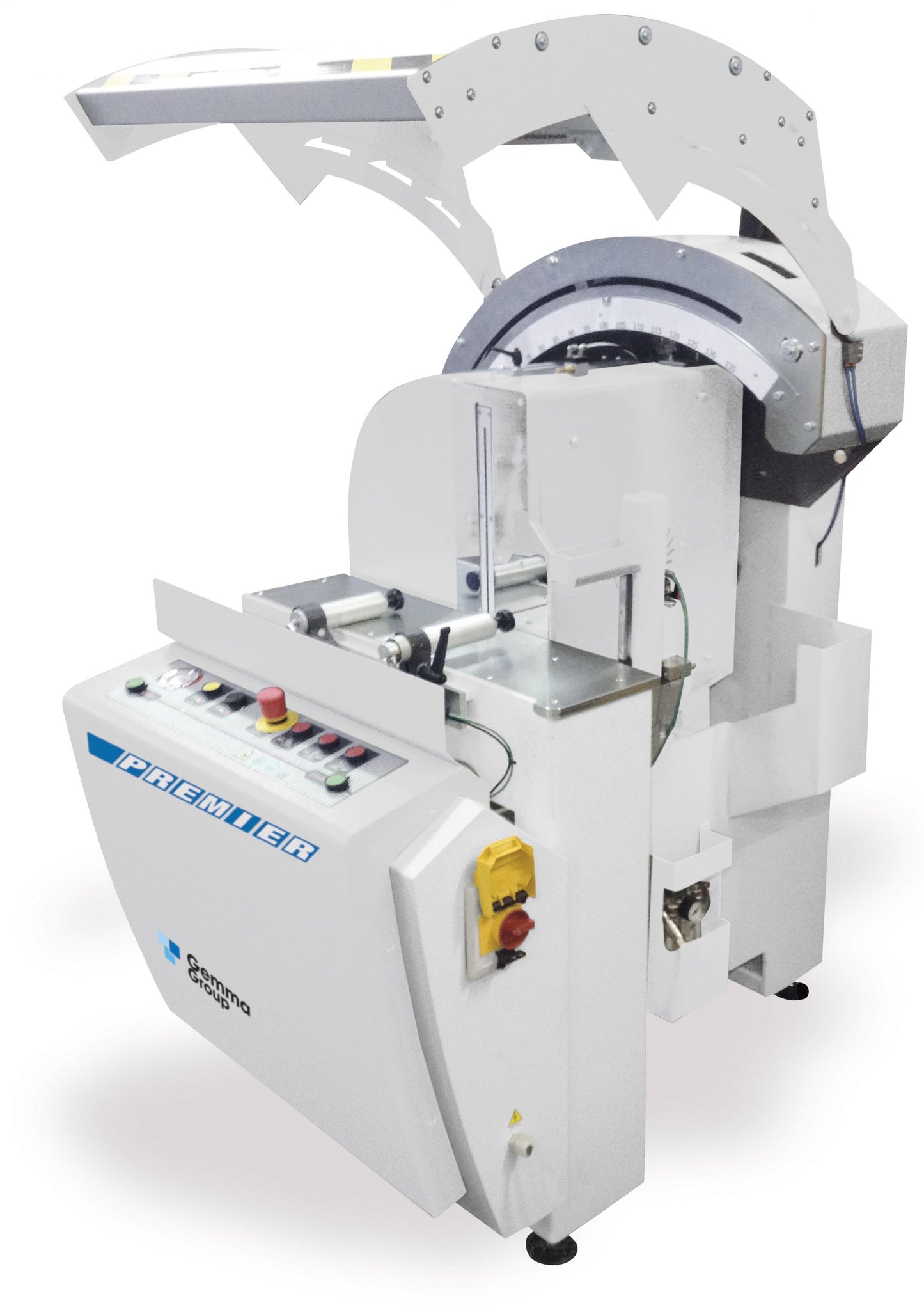

Premier – Single Head Frontal Cutting Machine (Ø 500/600 mm Blade)

The Premier Frontal Cutting Machine offers precise and efficient single-head cutting for a variety of applications. Available with a Ø 500 mm or Ø 600 mm front blade, this machine features a robust structure and user-friendly controls for accurate angle cuts.

Key Features:

  • Solid and Stable: Features a durable electrowelded steel basement for reliable operation.
  • Secure Workpiece Clamping: Equipped with 2 horizontal pneumatic clamps to firmly hold the material.
  • Pneumatic Head Tilting: Allows for easy and precise adjustment of the cutting angle.
  • Quick Angle Selection: Mechanical stops enable fast and accurate selection of 45°, 90°, and 135° angles.
  • Clear Angle Indication: Cutting angles are displayed on a graduated rod for easy and accurate adjustments.
  • Efficient Cooling: Venturi lubrication system ensures optimal blade performance and longevity.
  • Included Blade: Comes with 1 high-quality blade (Ø 500 mm or Ø 600 mm, depending on the model).
  • Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.
  • Safe Operation: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.
  • Oleopneumatic Blade Output: Ensures smooth and controlled blade movement.
  • Wide Range of Cutting Angles: Capable of cutting angles from 20° to 135°.

General Specifications:

Feature 500 mm Blade Model 600 mm Blade Model
Motor Power 2.2 kW 4 kW
Machine Weight 520 kg 670 kg
Machine Dimensions 1,400x960x1,650 mm 1,550x960x1,650 mm

Cutting Capacity:

Angle 500 mm Blade (Width x Height) 600 mm Blade (Width x Height)
90° 155x155 mm / 180x150 / 250x100 mm 190x190 mm / 230x180 / 300x120 mm
45° 140x140 mm / 180x100 / 200x65 mm 170x170 mm / 160x180 / 210x120 mm

Cutting Unit Specifications:

  • Blade Diameter: 500 mm or 600 mm
  • Shaft Diameter: 30 mm
  • Blade Revolutions: 2,800 rpm/min
  • Max Cutting Speed: 6 m/min
  • Cutting Angles: 20° - 135°

Power Supply:

  • Electric Power: 400 V / 60 Hz (three-phase)
  • Air Compressed Supply: 7 Bar
  • Air Consumption per Cycle: 18 Nl
  • CSA Compliant

Ideal For:

  • Cutting aluminum and PVC profiles
  • Applications requiring precise angle cuts
  • Workshops needing a reliable single-head cutting solution

Choose the Premier Frontal Cutting Machine for accurate and efficient cutting operations!
