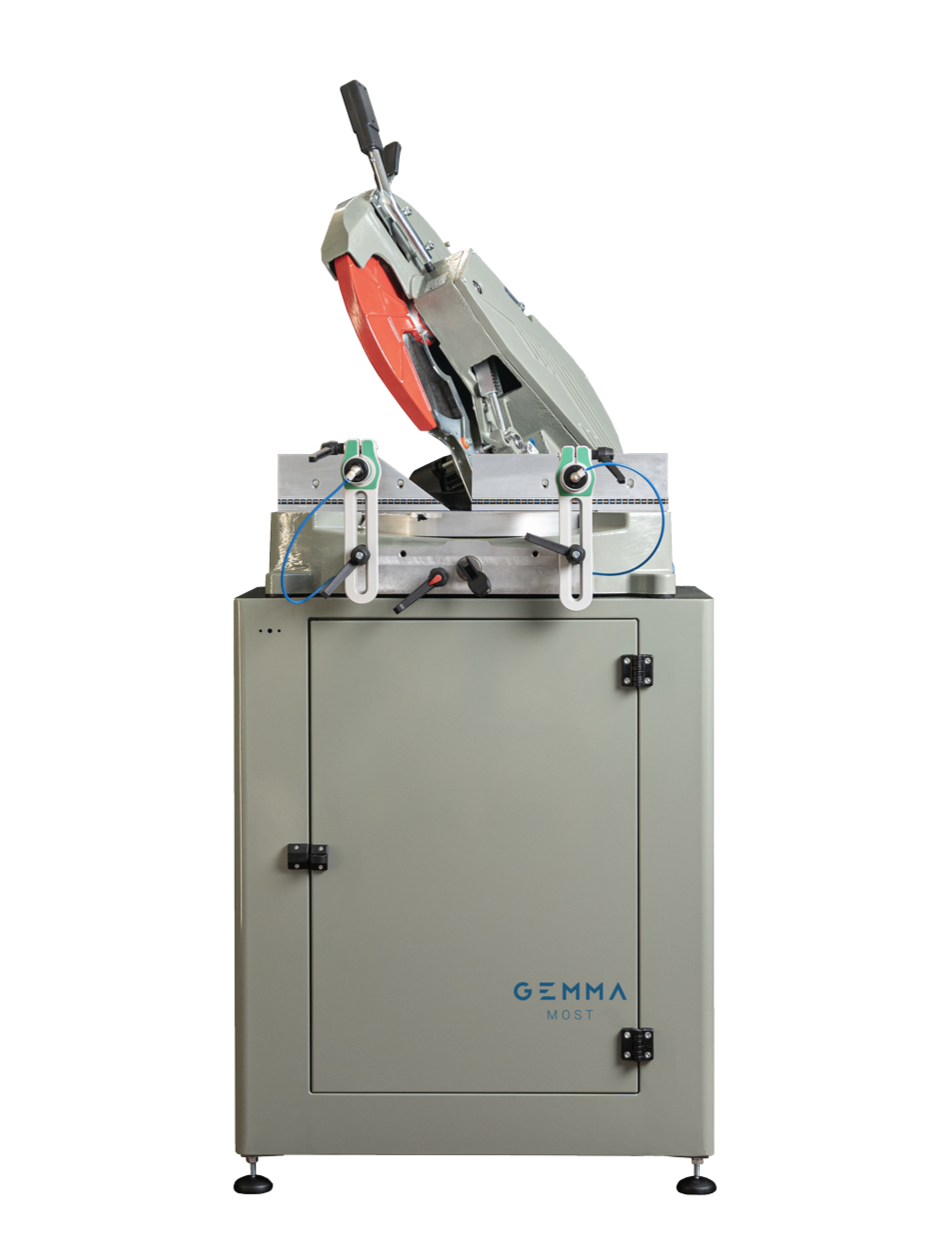

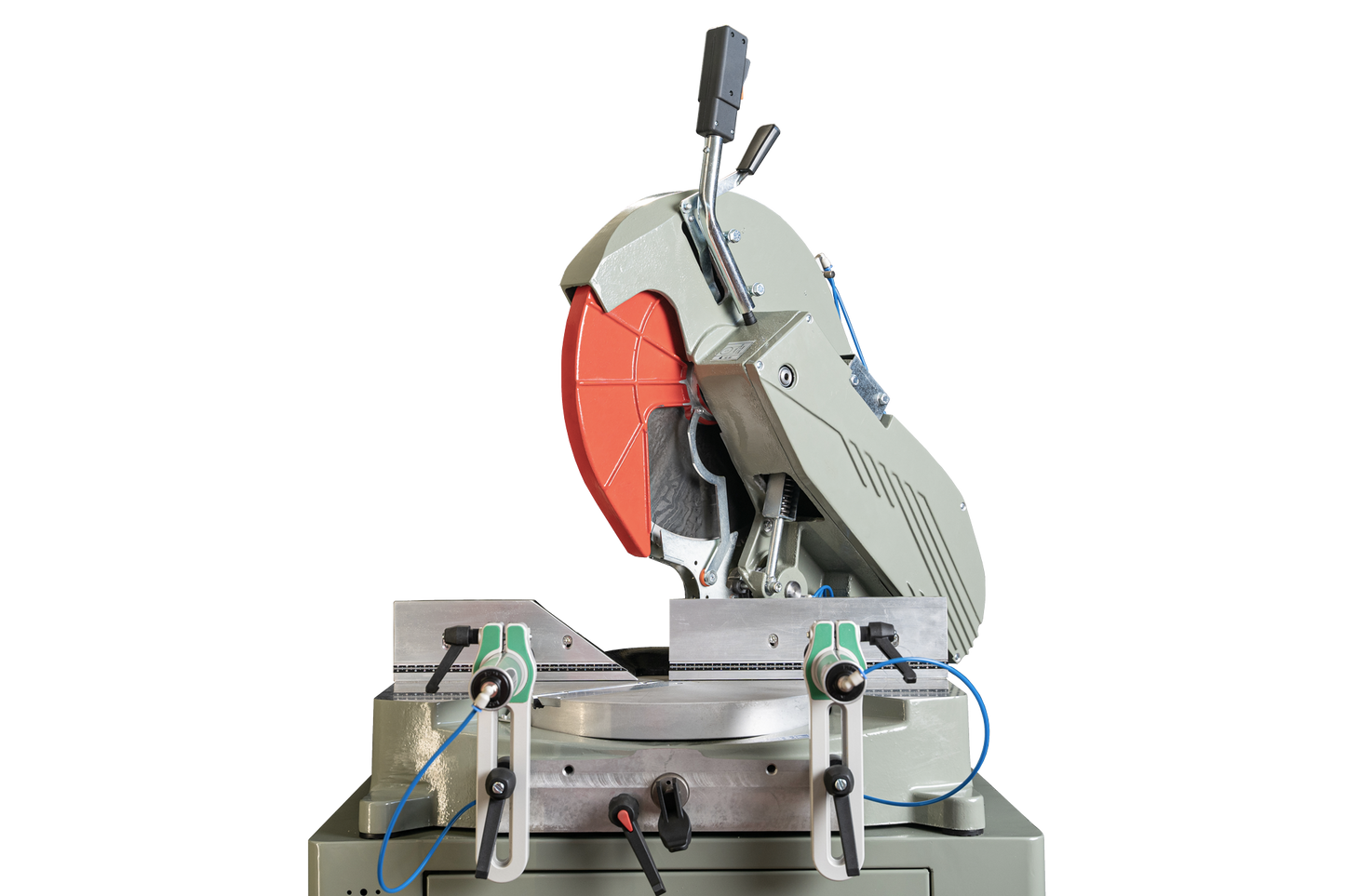

Most – Single Head Downstroke Cutting Machine (Ø 400 mm Blade)
The Most Downcut Cutting Machine offers a compact and efficient solution for precise cutting with a downward stroke. Featuring a pivoting working table and quick angle selection, it's ideal for accurate cuts in various applications.
Key Features:
Robust and Stable: Features a durable electrowelded steel basement for reliable performance.

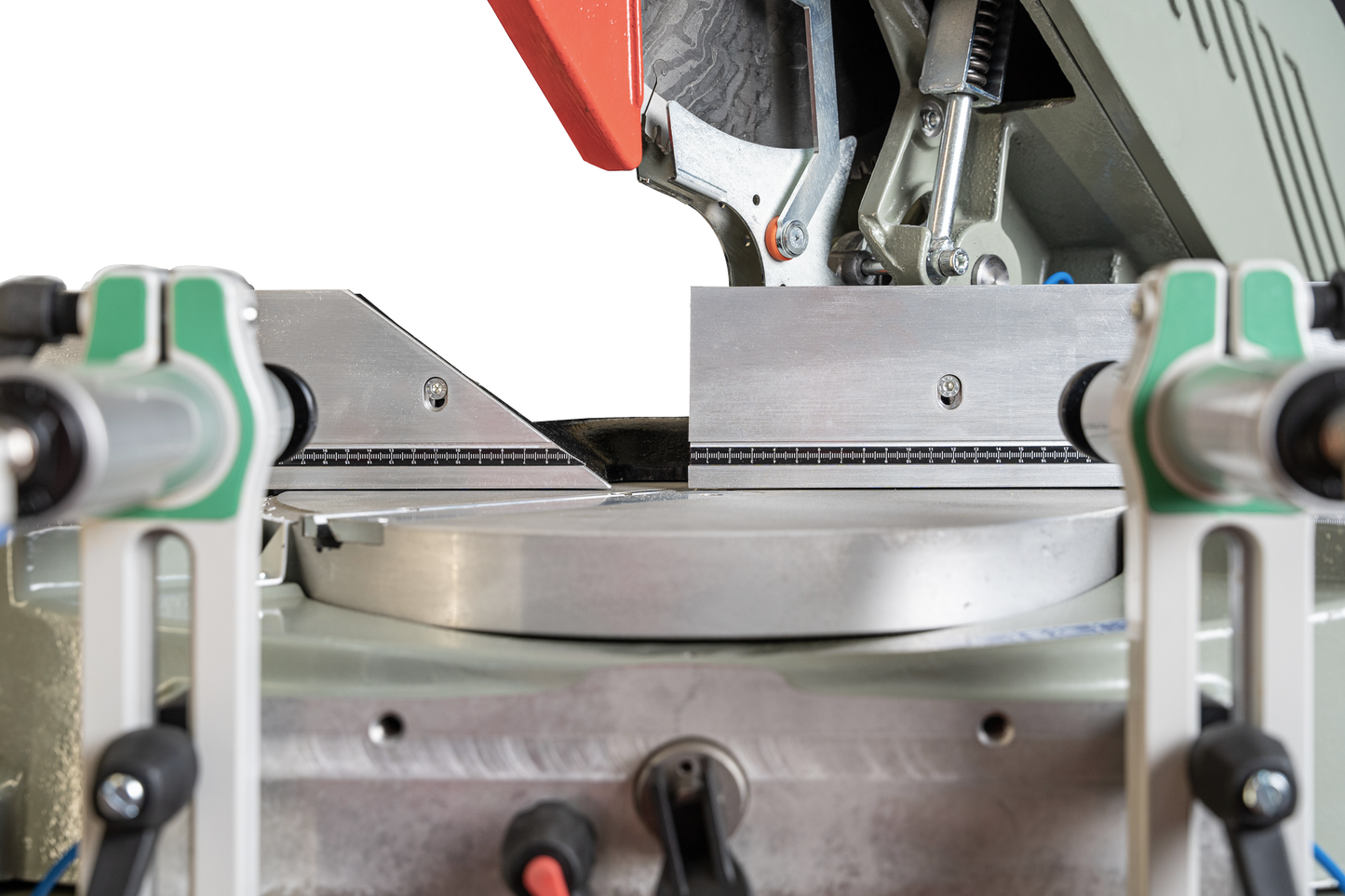

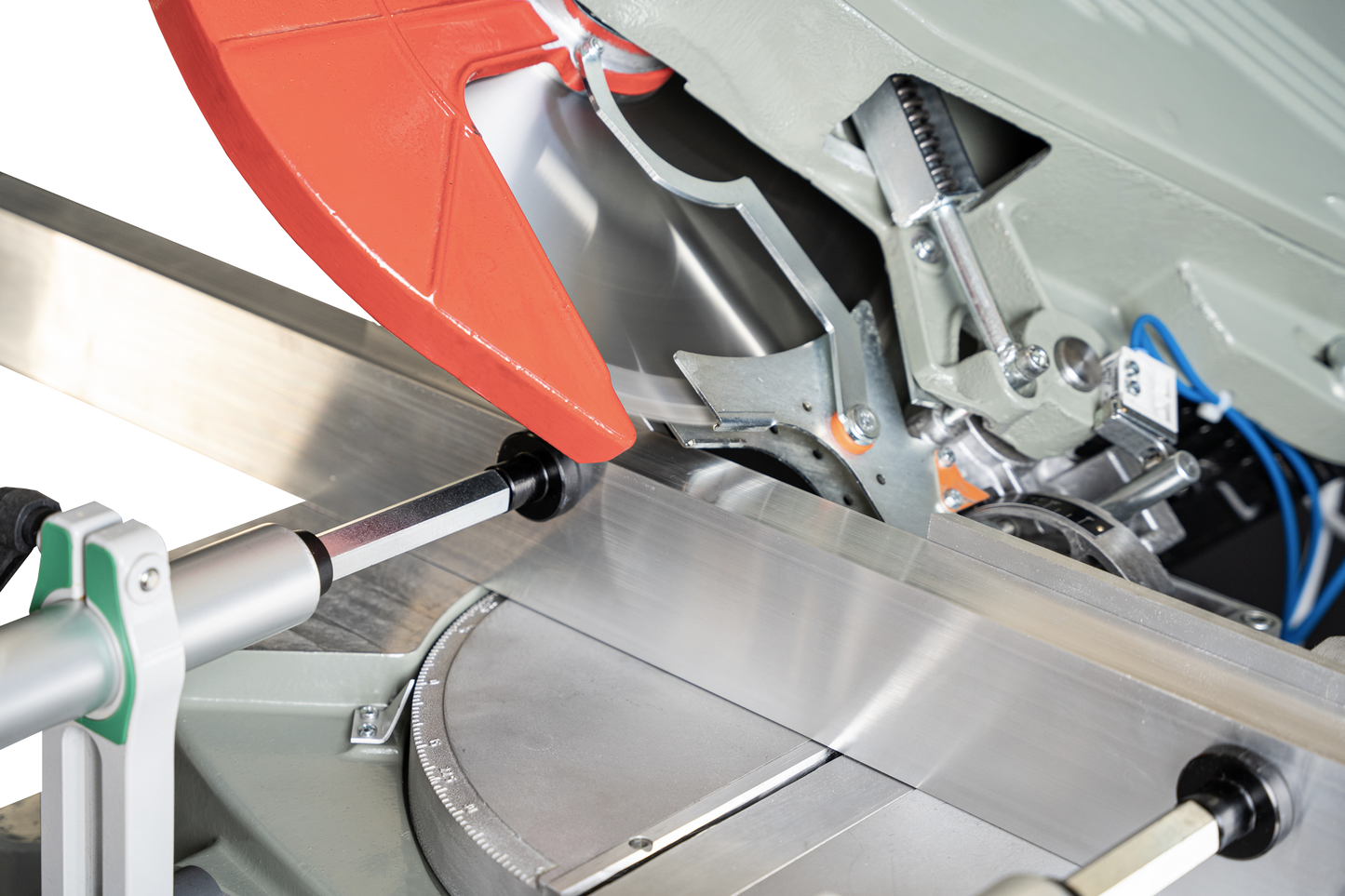

Secure Workpiece Clamping: Equipped with 2 horizontal pneumatic clamps to firmly hold the material.
Versatile Working Table: Pivoting working table adjustable from +45° to -45° for angled cuts.
Quick Angle Selection: Mechanical stops enable fast and accurate selection of 45°, 90°, and 135° angles.
Precise Depth Control: Depth-adjustable back stop with linear guides ensures accurate cutting depth.
Trimming Capability: Includes a sliding square for precise trimming operations.
Tilting Head: Cutting head can be tilted up to 45° on the left for bevel cuts.

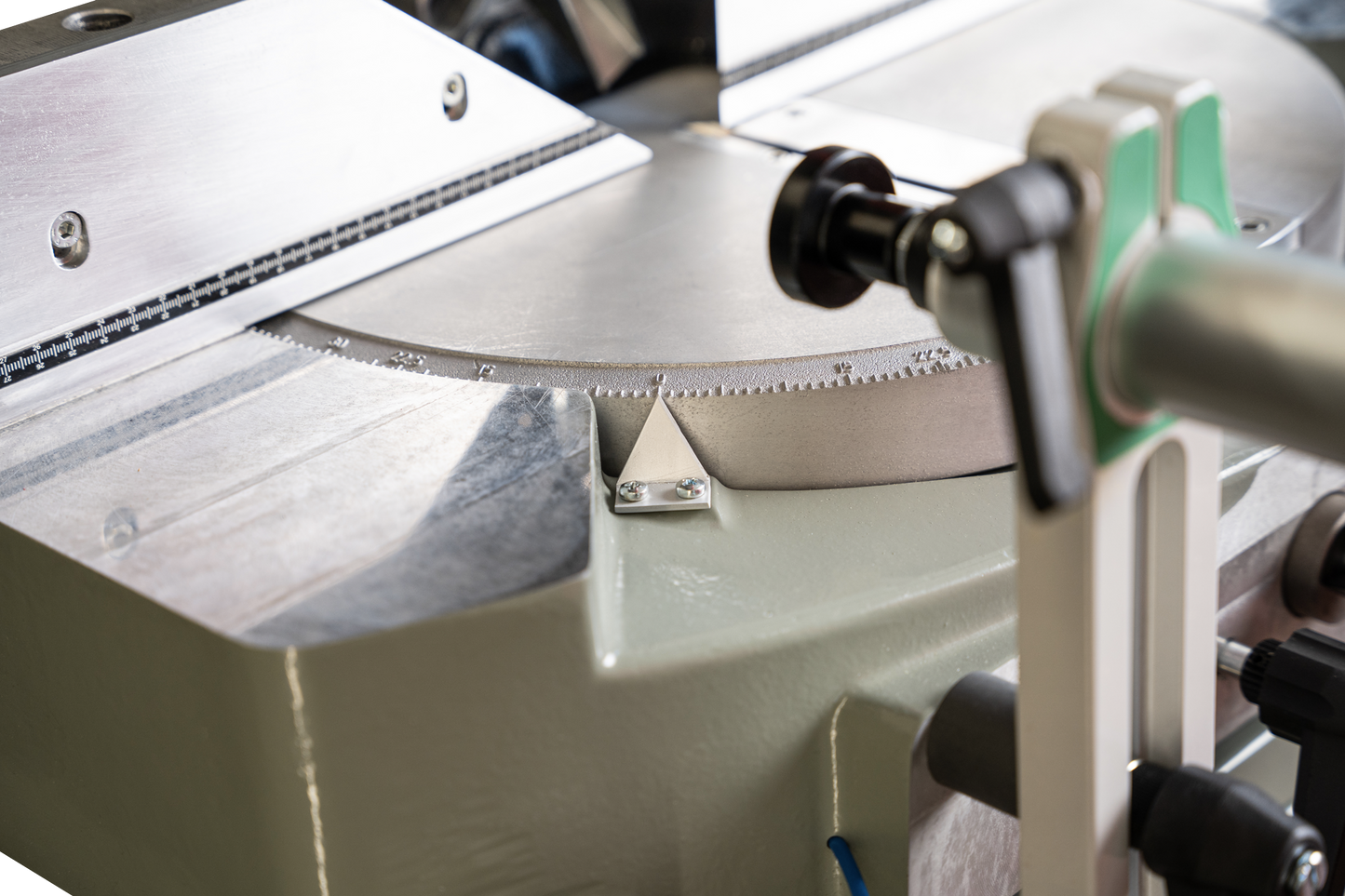

Clear Angle Indication: Working table angle can be easily set using a protractor indicator.
Efficient Cooling: Venturi lubrication system ensures optimal blade performance and longevity.
Included Blade: Comes with 1 high-quality Ø 400 mm blade.
Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.
Safe Operation: Cutting area protections and full compliance with CE safety regulations.
Manual Blade Output: Simple and direct manual control of the blade.
General Specifications:
Blade Diameter: 400 mm
Motor Power: 2.2 kW
Machine Weight: 90 kg
Machine Dimensions: 1,200 x 780 x 1,650 mm
Cutting Capacity:
Angle
Cutting Capacity (Width x Height)
90°
115 x 115 mm / 210 x 115 mm
Cutting Unit Specifications:
Blade Diameter: 400 mm
Shaft Diameter: 30 mm
Blade Revolutions: 2,850 rpm
Max Cutting Speed: 6 m/min
Head Tilting: Up to 45° (left)
Blade Output Management: Manual
Power Supply:
Electric Power: 400 V / 60 Hz (three-phase)
Air Compressed Supply: 7 Bar
Air Consumption per Cycle: 7 Nl
CSA Compliant
Ideal For:
Cutting aluminum and PVC profiles
Applications requiring angled cuts and trimming
Workshops with limited space needing a versatile machine
Experience cutting with the compact and versatile Most Downstroke Cutting Machine!
