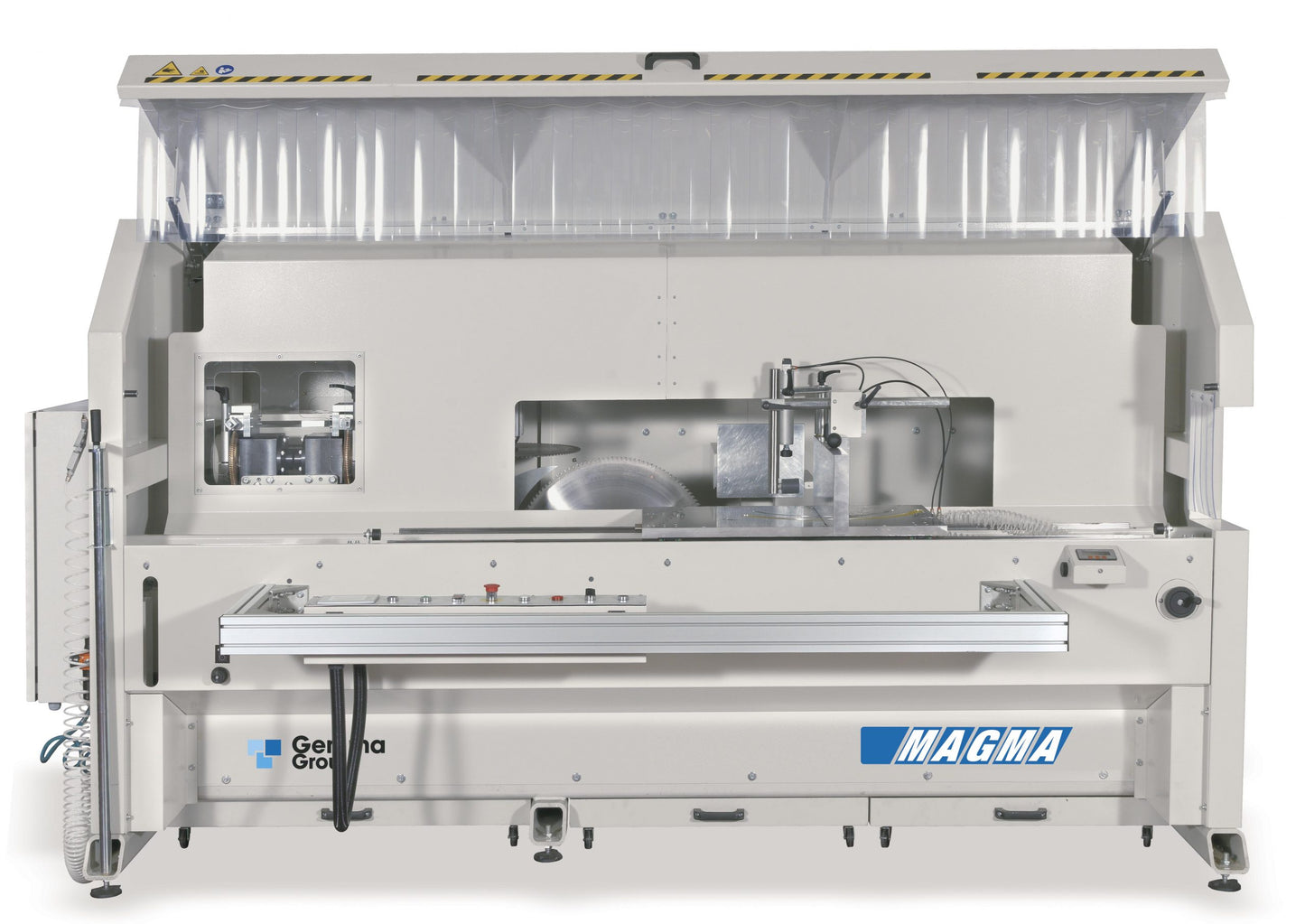

The Magma Notching Saw delivers exceptional precision and efficiency for notching operations. Its robust design, sliding support table, and adjustable features make it ideal for accurate and repeatable cuts at various angles.
Key Features:
Durable Construction: Features a stable electrowelded steel basement for long-lasting performance.

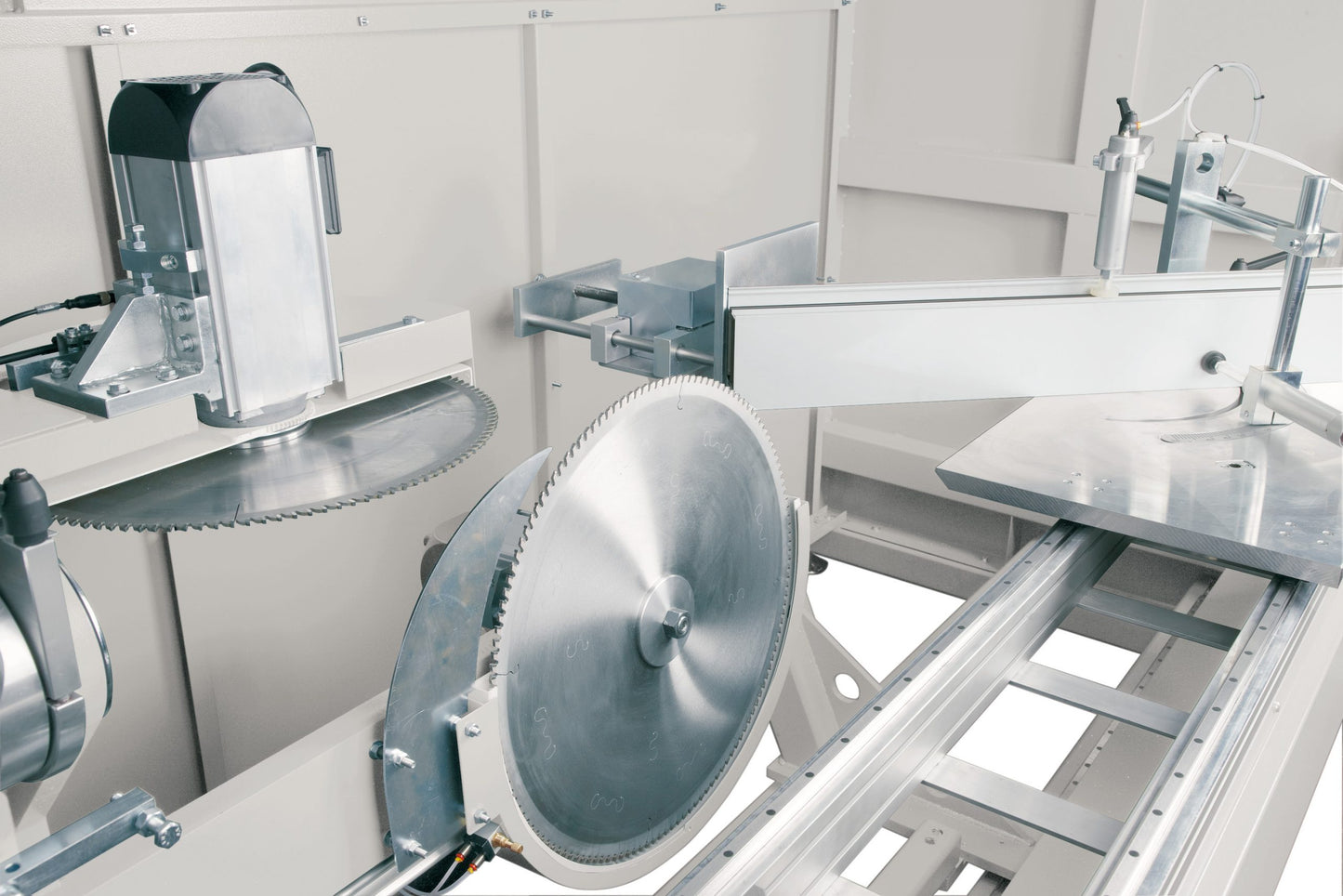

Smooth Material Handling: Equipped with a support table that slides effortlessly on linear guides.
Secure Profile Clamping: Offers both vertical and horizontal pneumatic clamping for stable workpiece positioning.

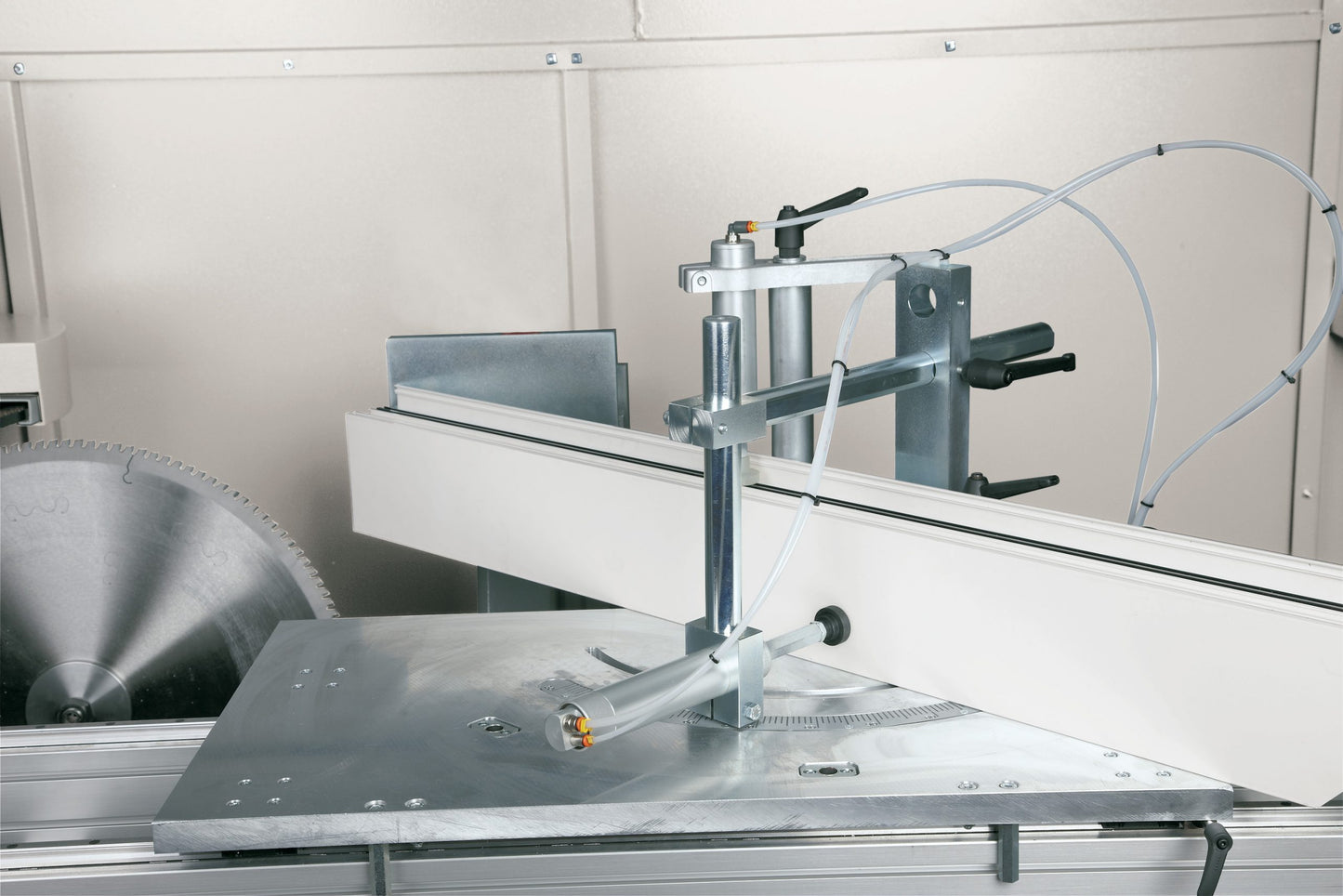

Adjustable Support: Includes a profile support table with a tilting square for versatile material handling.
Quick Angle Selection: Features mechanical stops for fast and accurate selection of 45°, 90°, and 135° angles.

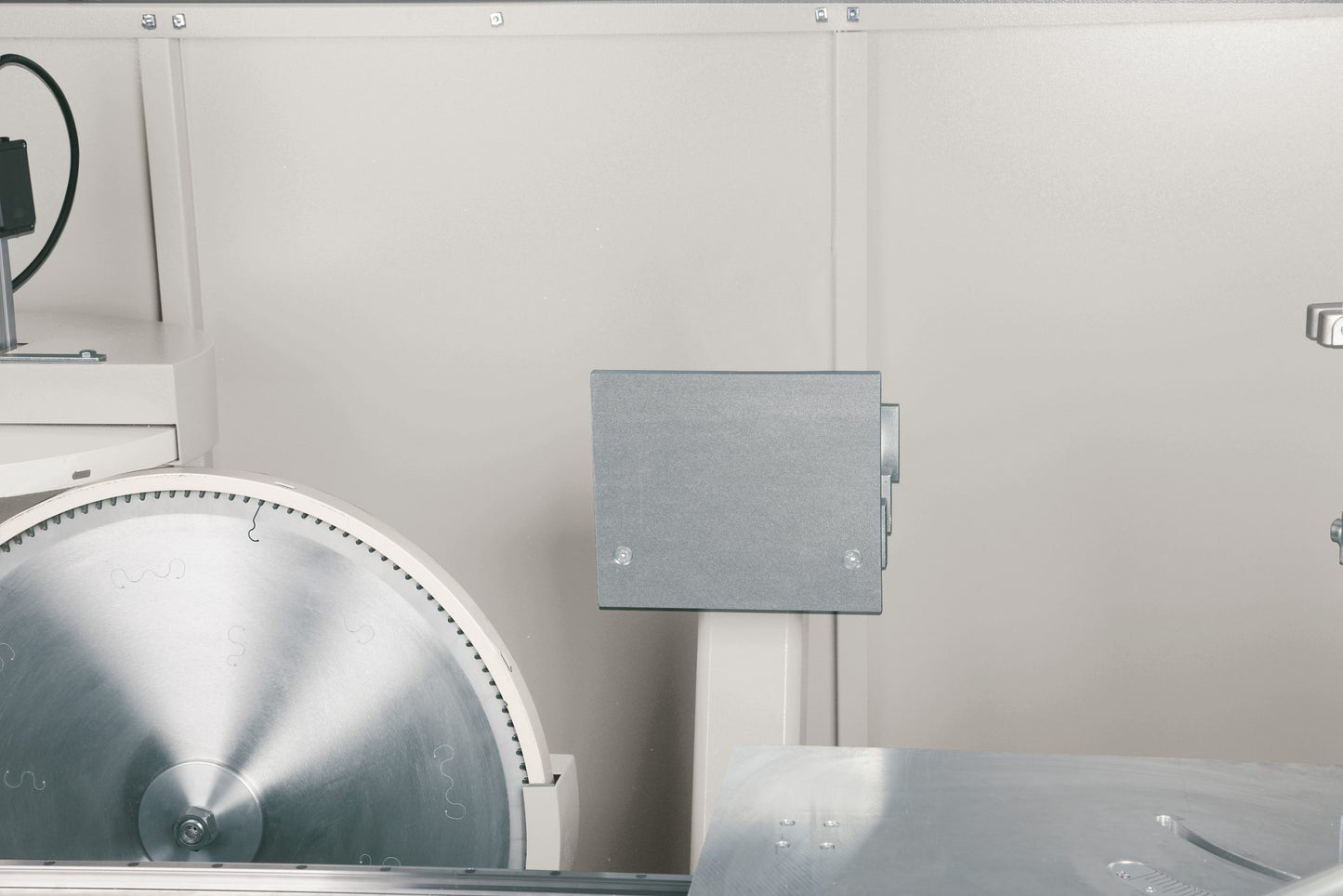

Adjustable Cutting Depth: Depth-adjustable back stop with linear guides ensures precise cutting depth control.

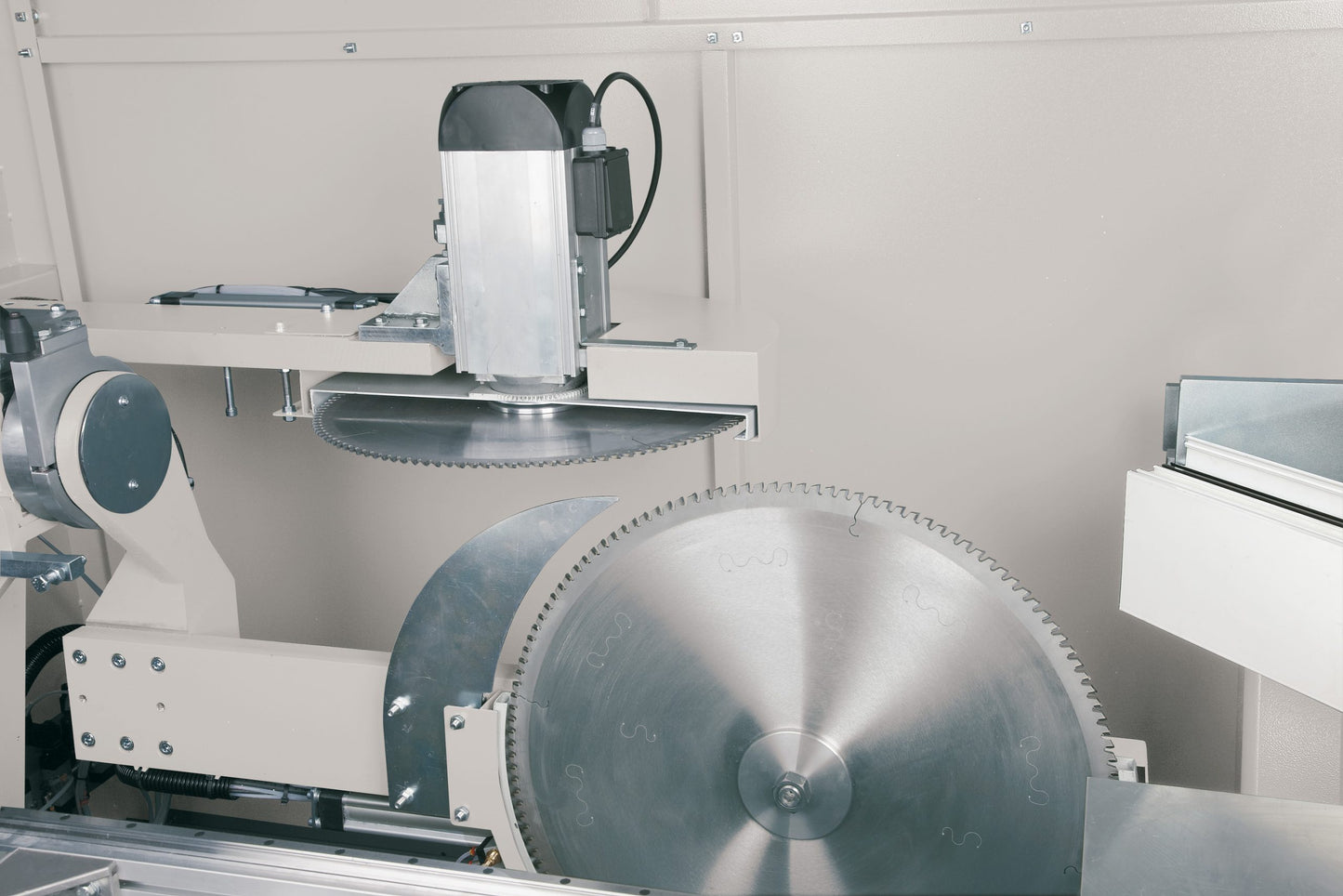

Powerful Double Cutting Unit:
Orthogonal movement of the double cutting unit for efficient notching.

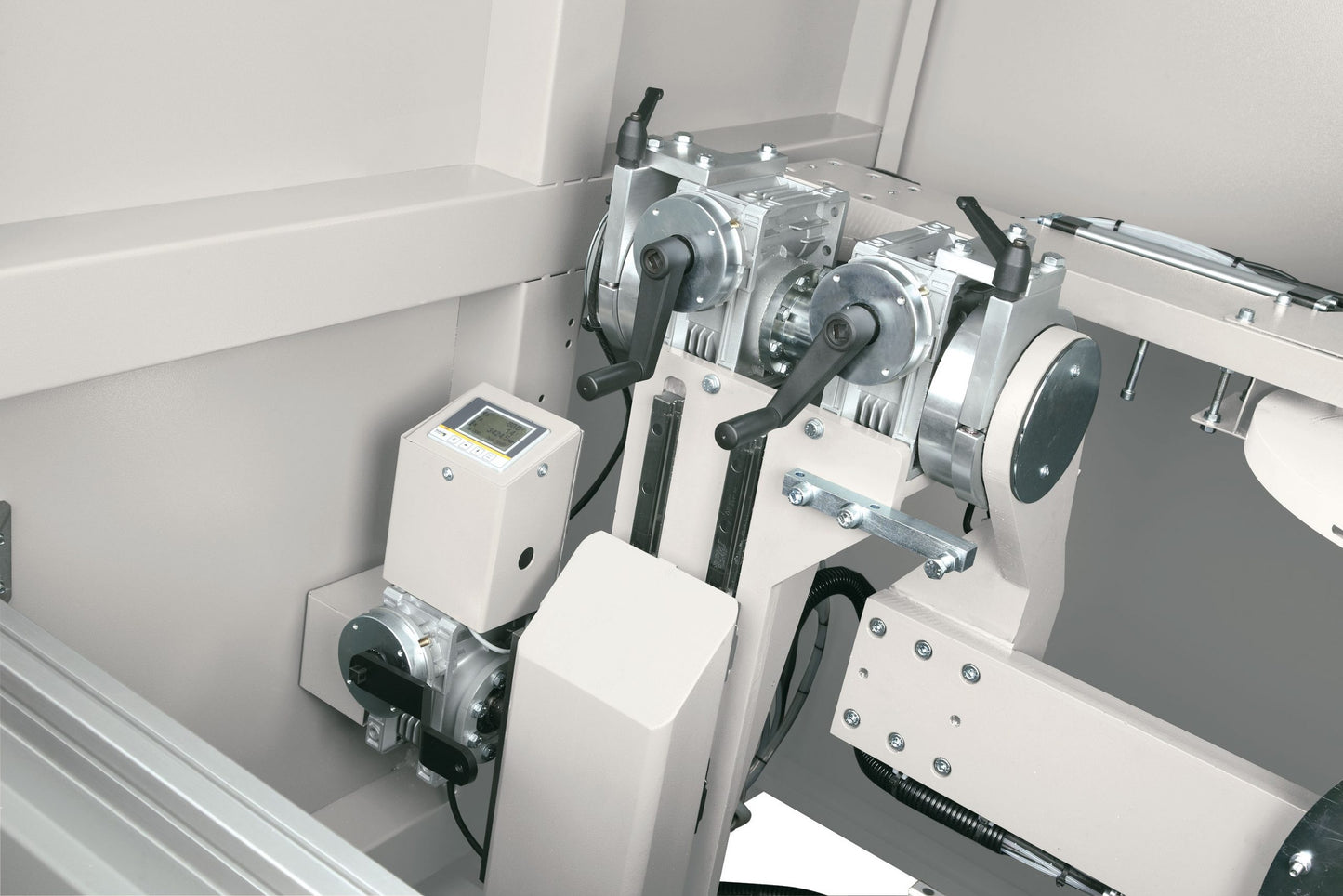

Integrated display to view blade height, depth, and tilting for precise adjustments.
Efficient Lubrication: Venturi lubrication system optimizes blade performance and lifespan.
Included Blades: Comes with two high-quality blades (⌀ 500 mm and ⌀ 600 mm).

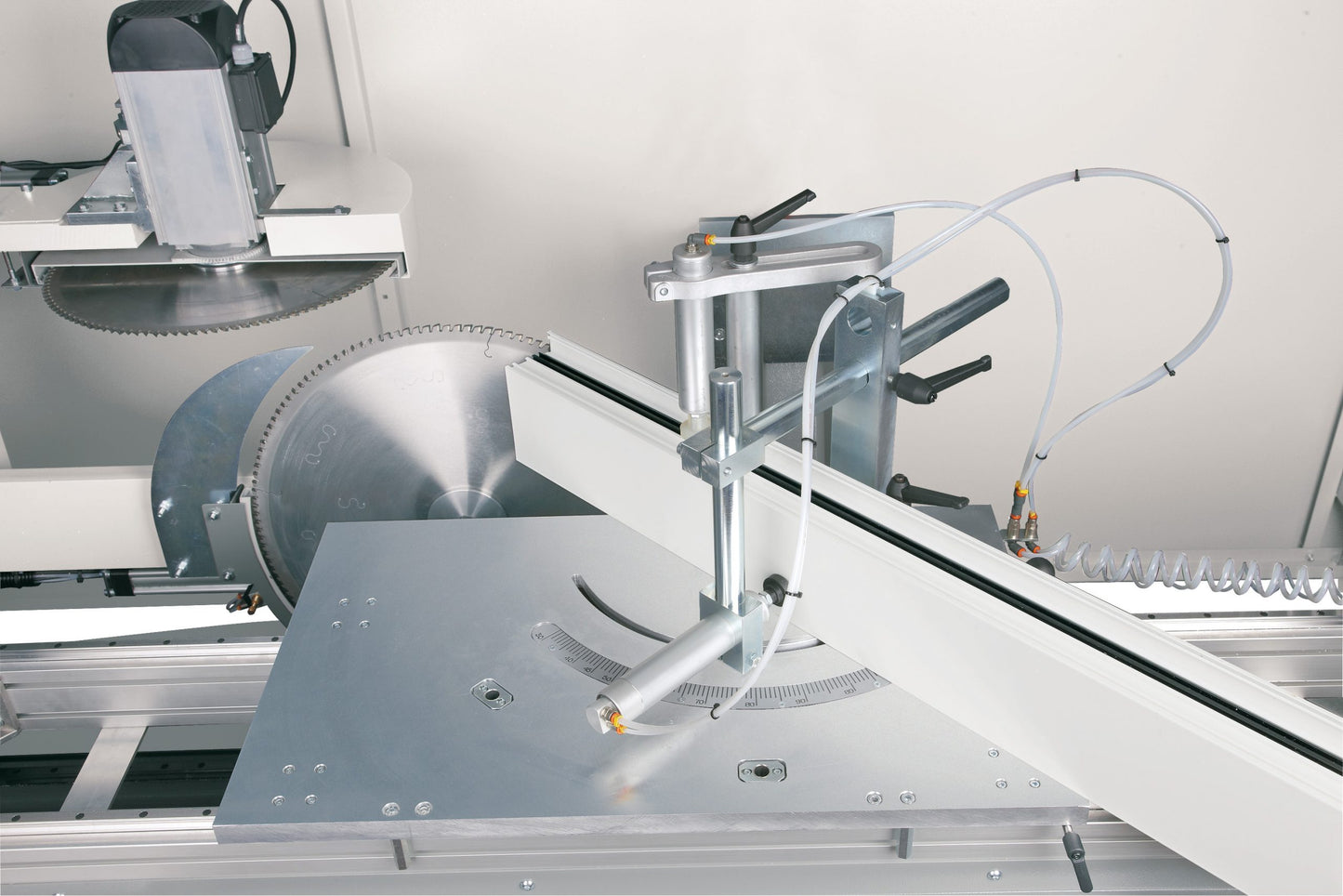

Versatile Angle Cutting: Pivoting square adjustable from 30° to 90° to -30° for a wide range of cutting angles.

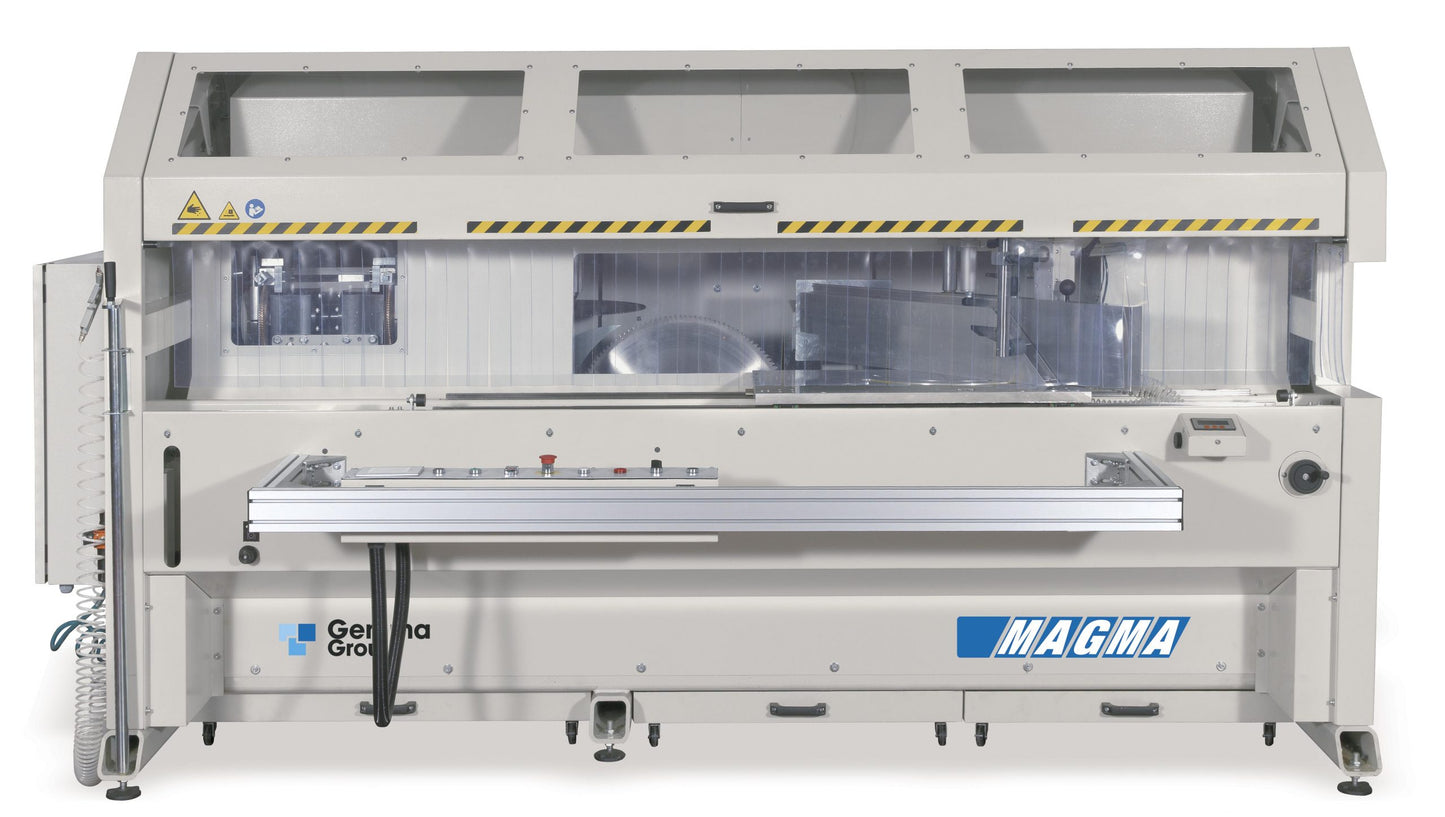

Enhanced Safety: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.
Technical Specifications:
Blade Diameter: 500 / 600 mm
Shaft Diameter: 30 mm
Blade Revolutions: 2,850 rpm
Max Cutting Speed: 6 m/min
Max Cutting Depth:
90° Horizontal: 185 mm / Vertical: 235 mm
45° Horizontal: 185 mm / Vertical: 235 mm
30° Horizontal: 130 mm / Vertical: 235 mm
Max Piece Height: 280 mm
Max Cutting Width:
90°: 300 mm
45°: 190 mm
30°: 100 mm
Power Supply: 400 V / 60 Hz (three-phase)
Motor Power: 3 kW
Air Compressed Supply: 7 Bar
Air Consumption per Cycle: 40 Nl
CSA Compliance
Ideal For:
Aluminum and PVC profile processing
High-volume notching applications
Workshops demanding precise and repeatable angle cuts
Experience unparalleled notching accuracy and efficiency with the Magma Notching Saw!
