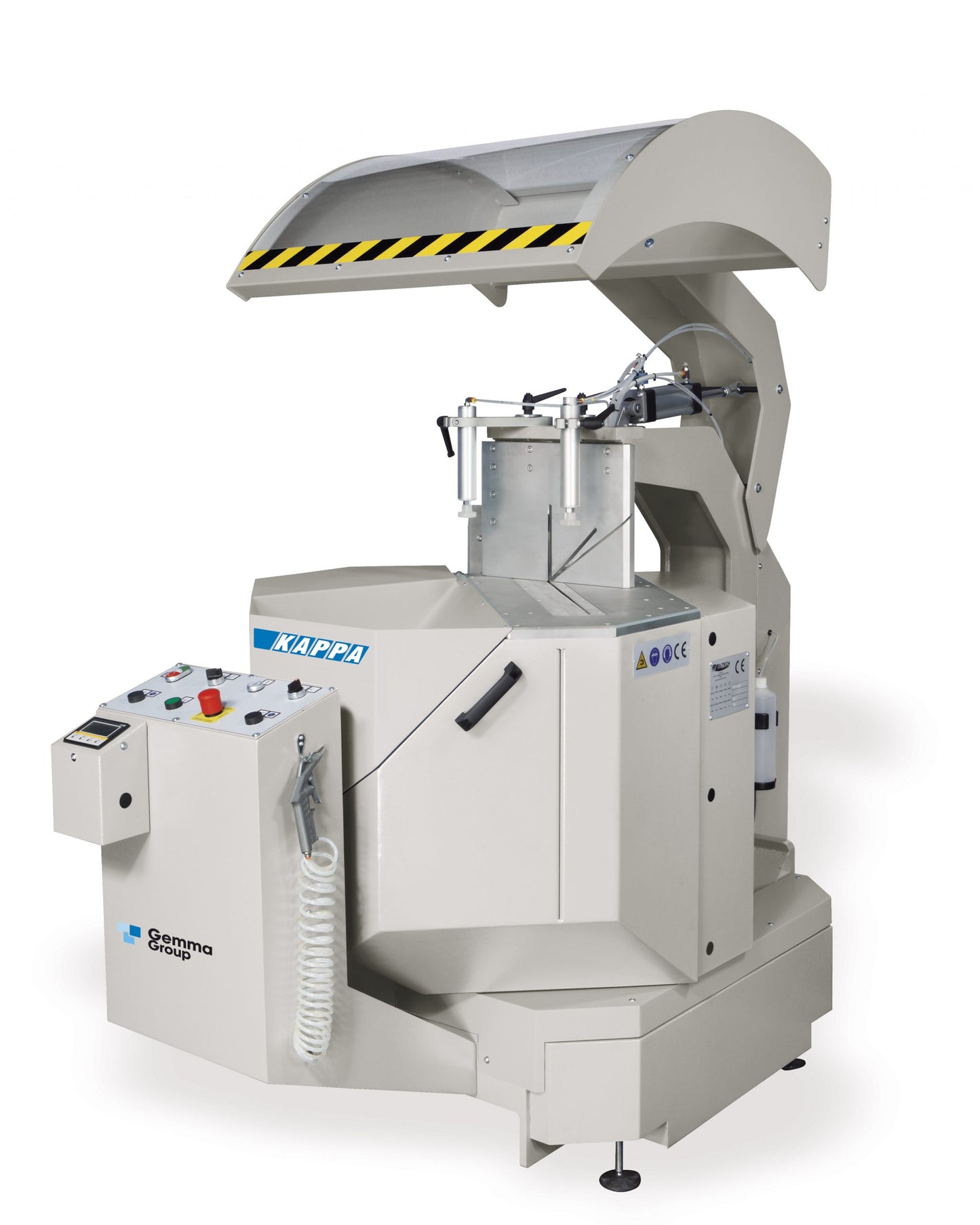

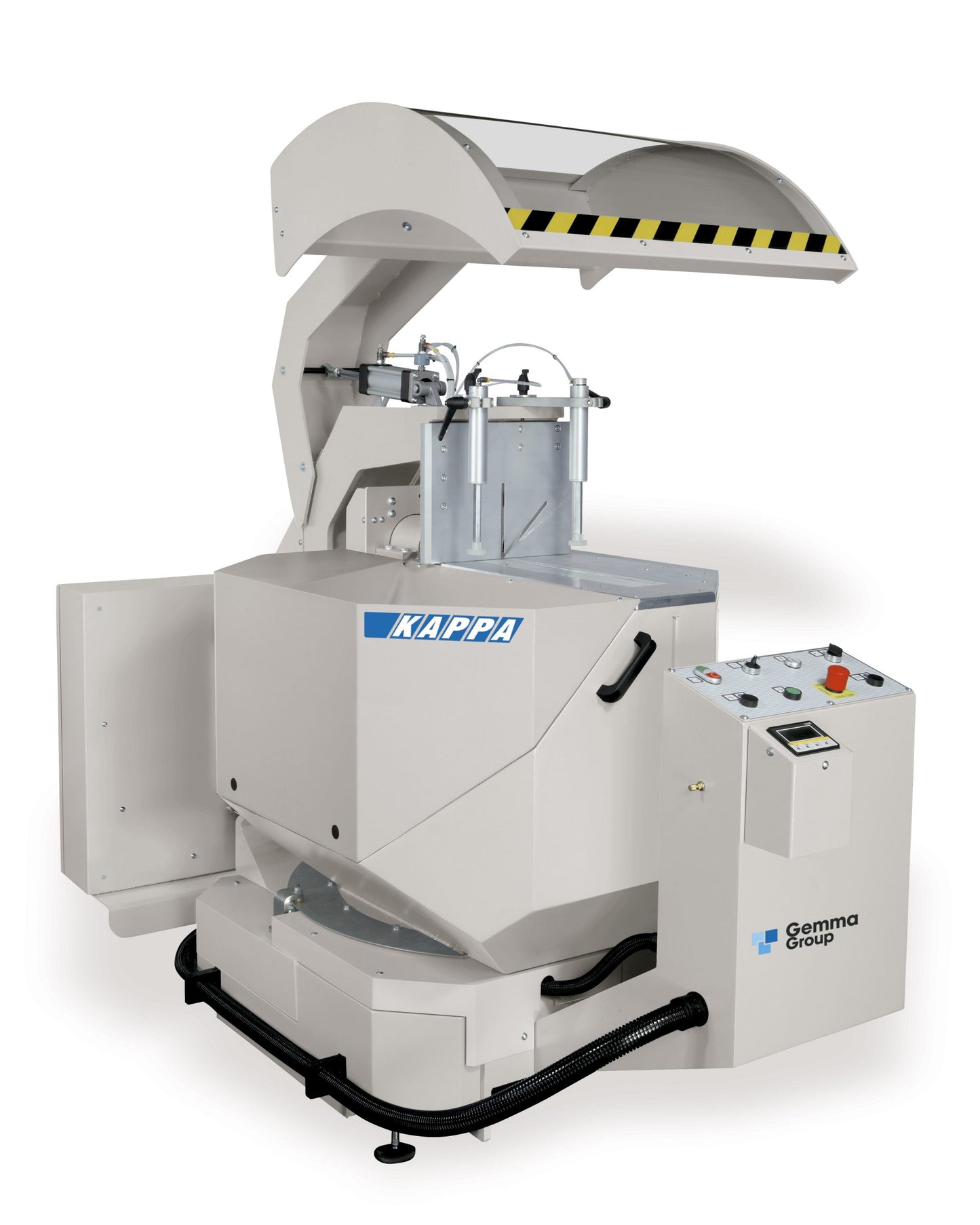

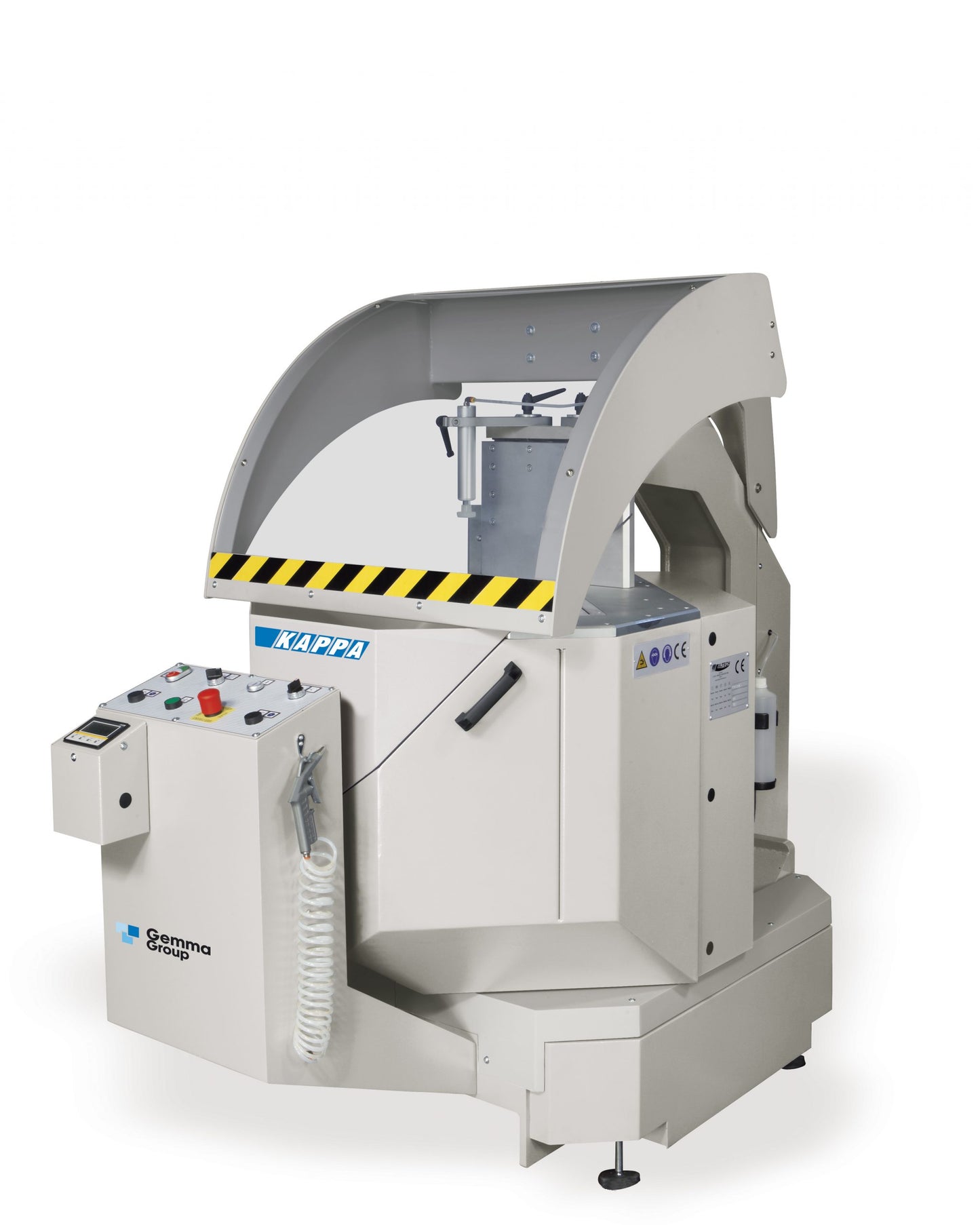

Kappa – Advanced Single Head Cutting Machine for Compound Cuts (Ø 600 mm Blade)
The Kappa Single Head Cutting Machine is engineered for precision and versatility, enabling complex compound cuts with its tilting and pivoting Ø 600 mm upward stroke blade. Ideal for applications requiring intricate angles, the Kappa delivers exceptional accuracy and efficiency.
Key Features:
Robust and Stable: Features a heavy-duty electrowelded steel basement for maximum stability during complex cutting operations.

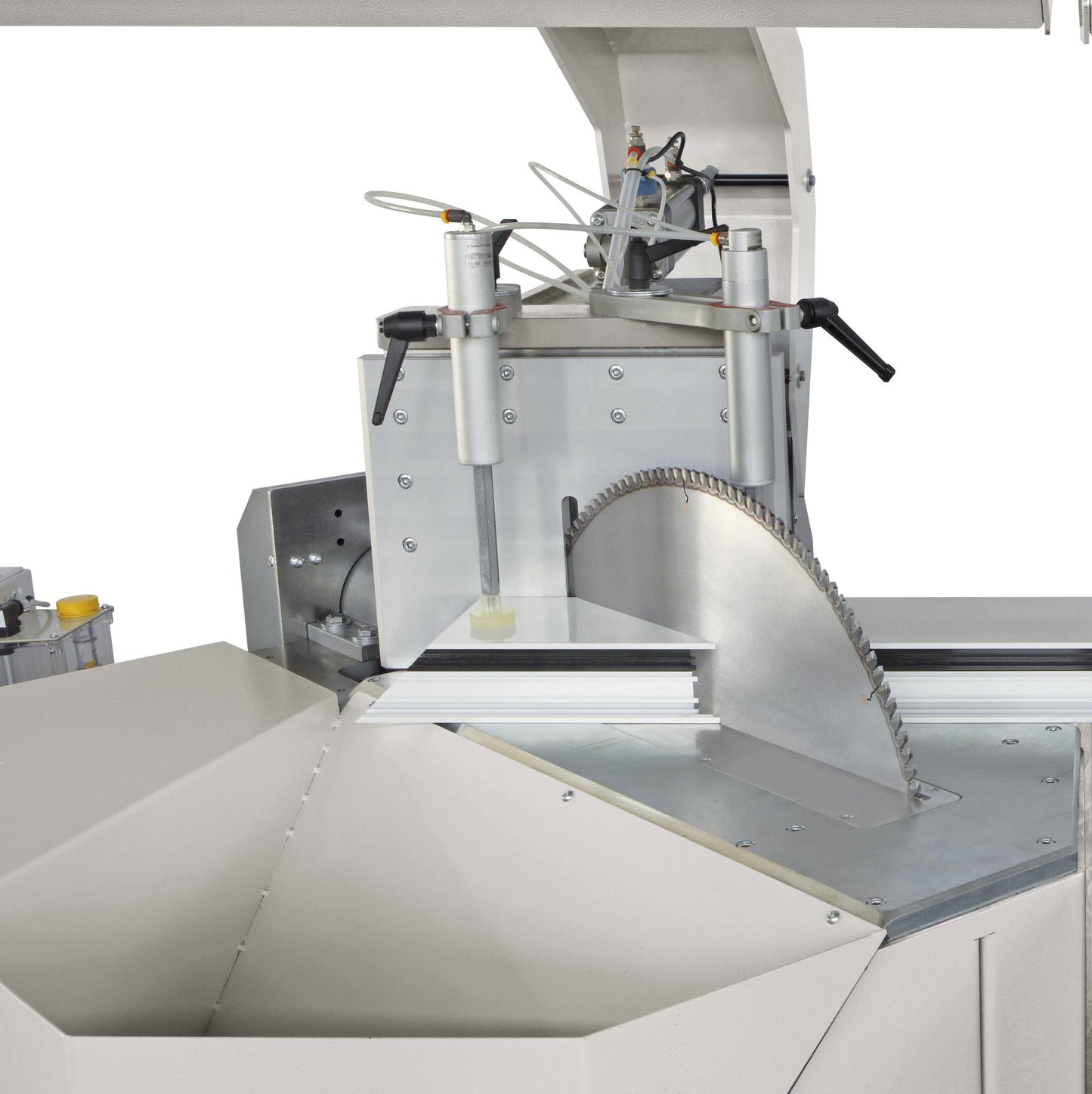

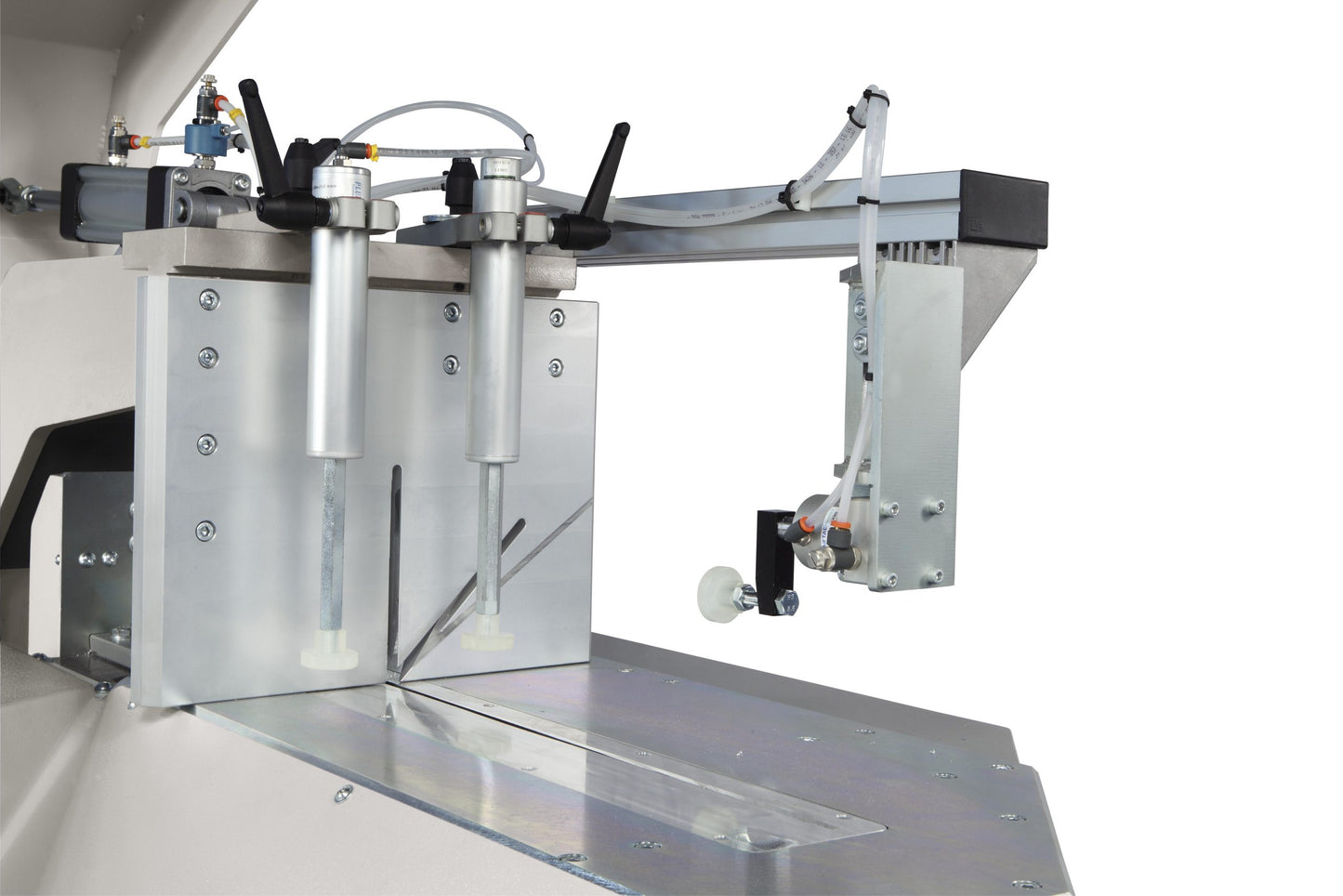

Secure Vertical Clamping: Equipped with 2 vertical pneumatic clamps to firmly hold the workpiece for accurate compound cuts.

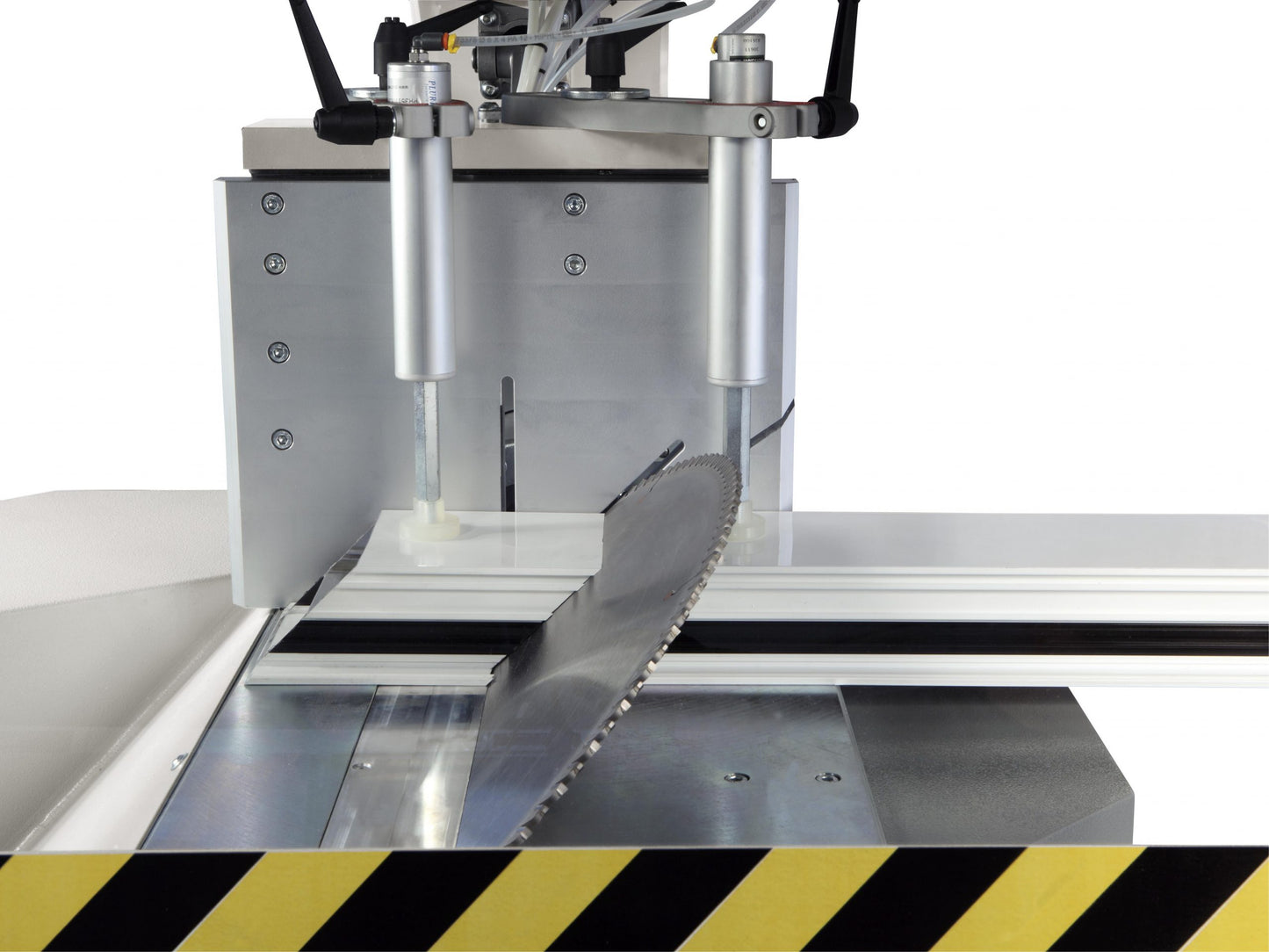

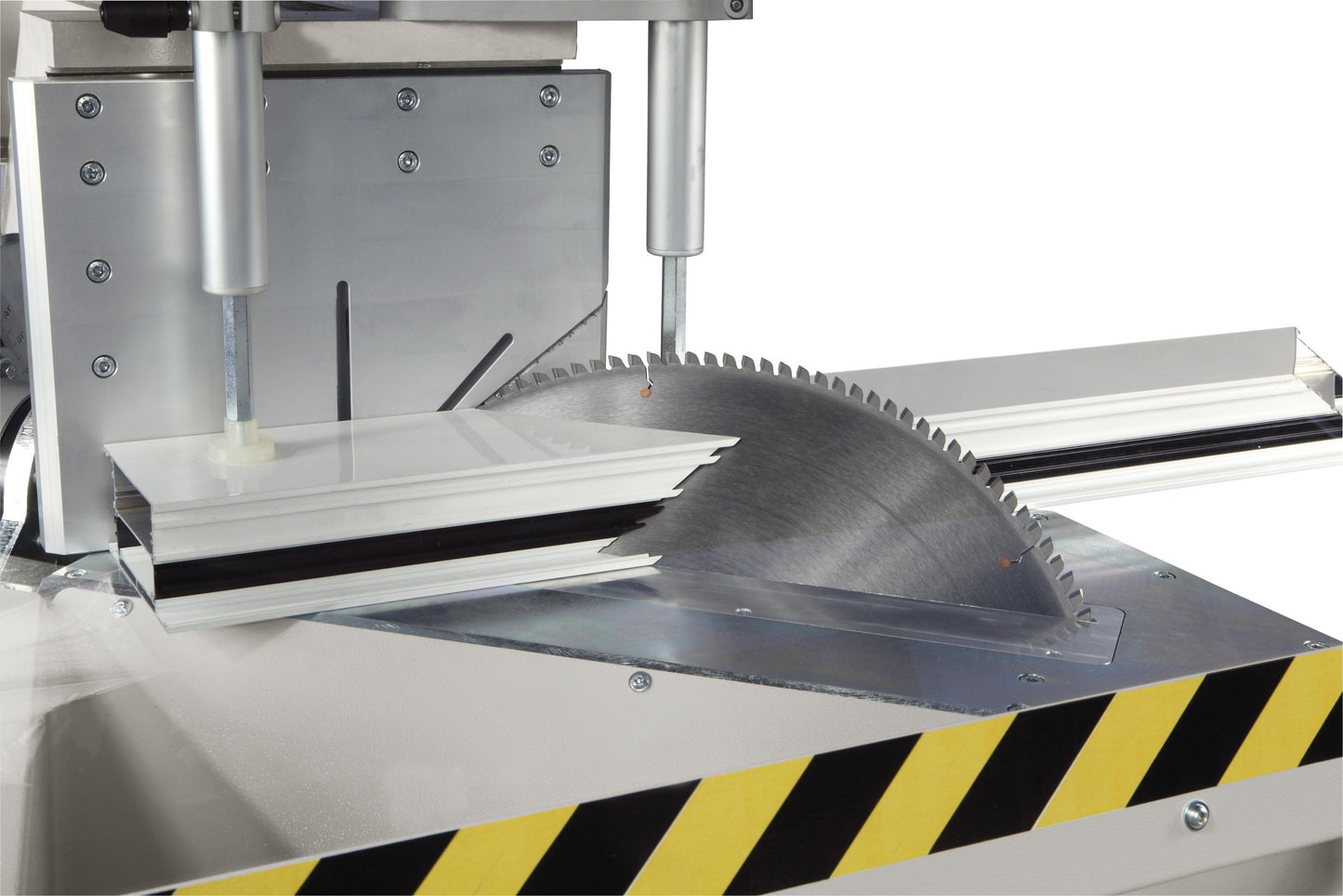

Tilting and Pivoting Head: Allows for precise head tilting and pivoting, enabling intricate compound angle cuts.
Quick Angle Selection: Mechanical stops provide fast and accurate selection of common angles (45° and 90°).

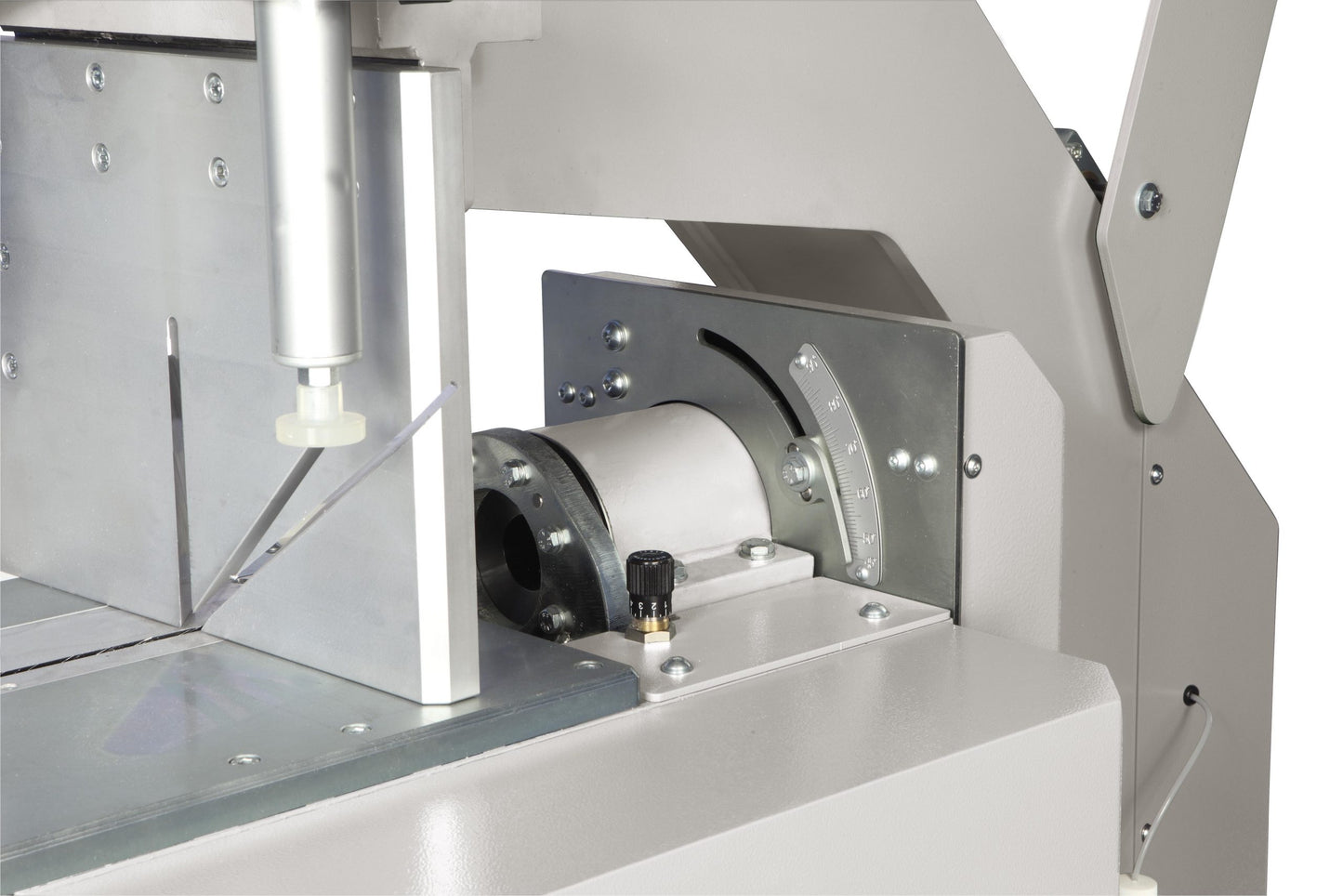

Precise Angle Setting: Working table angle can be accurately set using a protractor indicator and a clear display.
Manual Operator Group Positioning: Ensures precise manual positioning of the cutting unit for compound cuts.

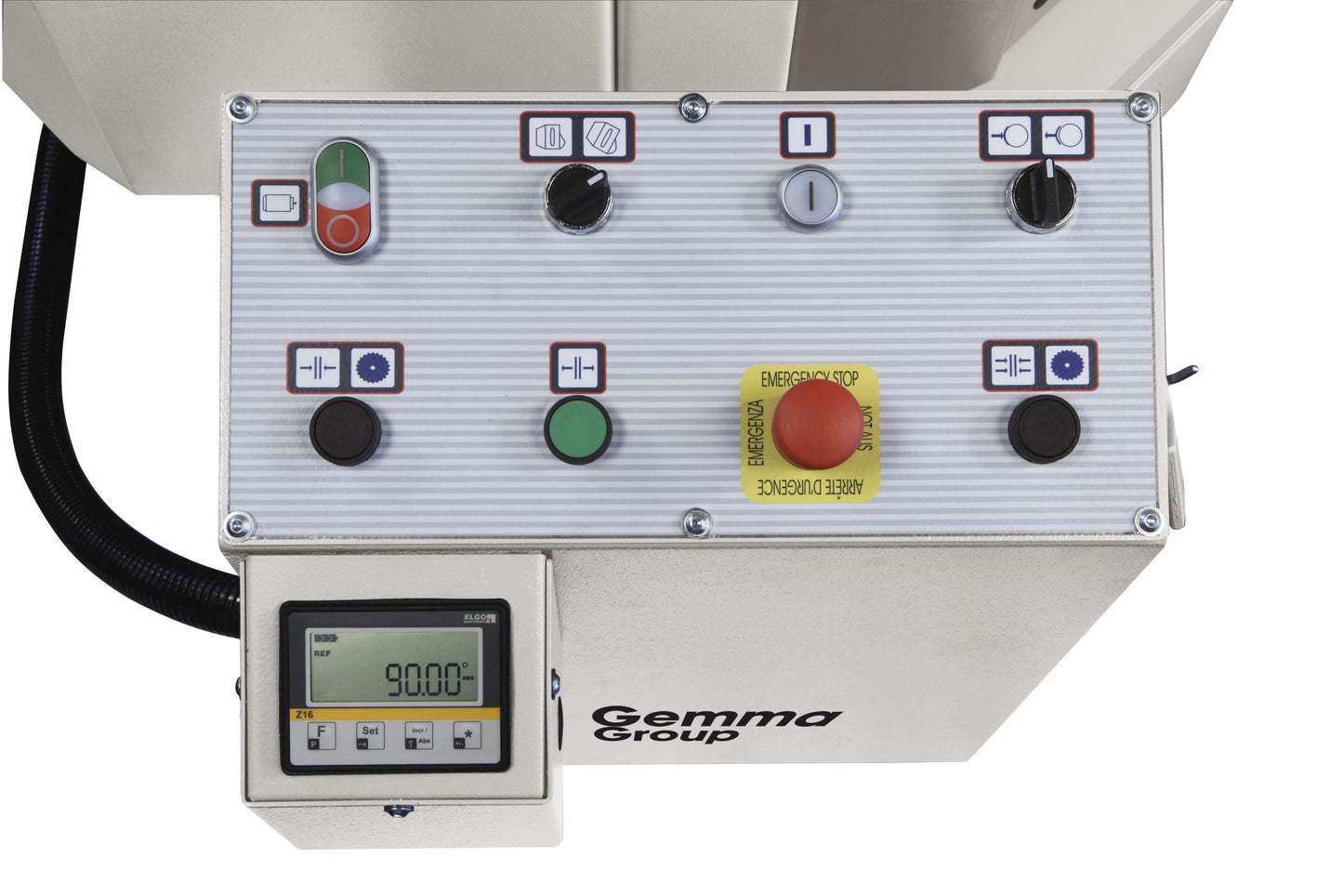

Digital Pivoting Angle Display: Provides a clear digital readout of the current pivoting angle for enhanced accuracy.
Efficient Cooling: Venturi lubrication system ensures optimal blade performance and longevity, even during complex cuts.
Included High-Capacity Blade: Comes with 1 high-quality Ø 600 mm blade for demanding applications.
Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.

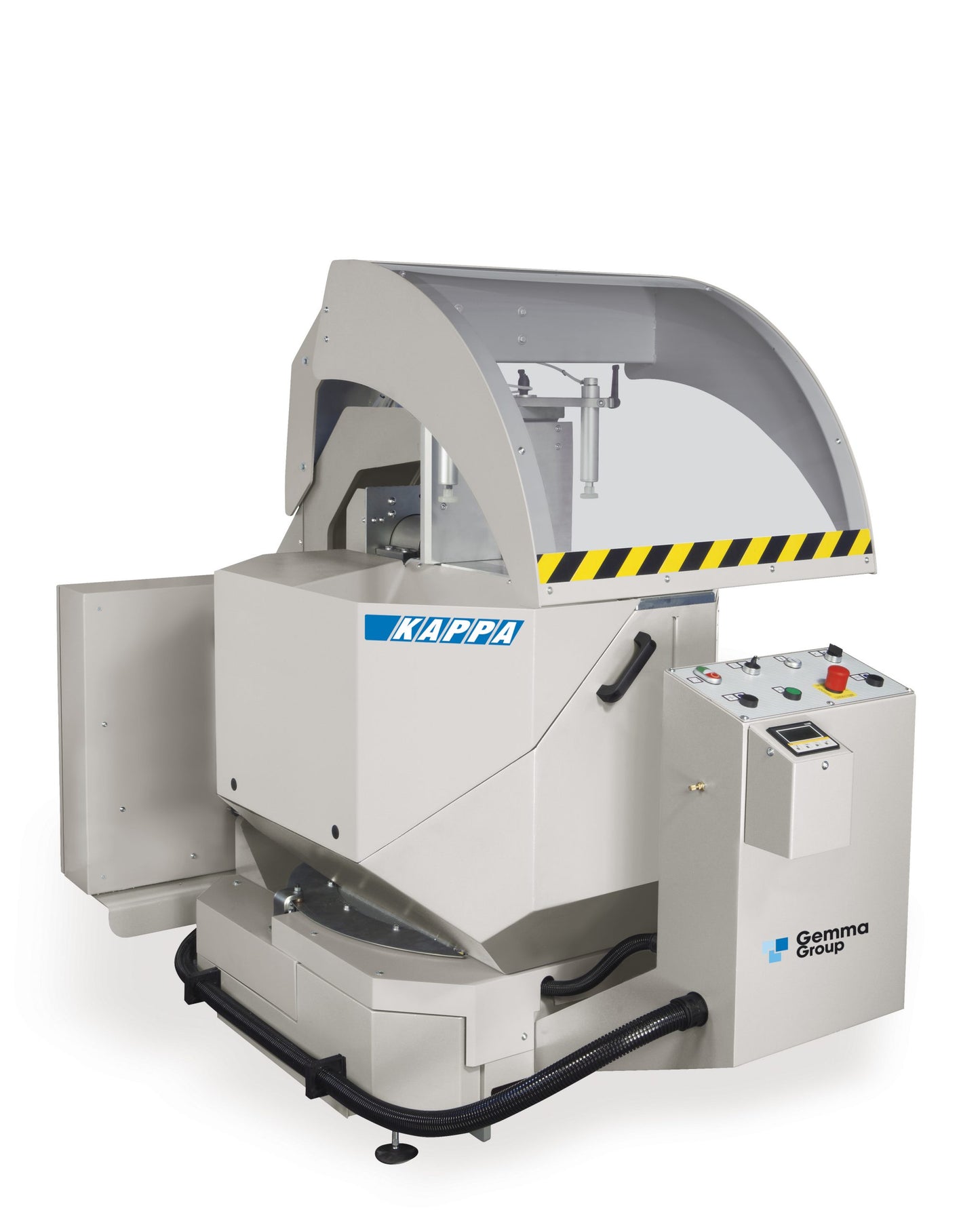

Safe Operation: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.
Smooth Blade Movement: Oleopneumatic blade output management ensures controlled and consistent cutting, crucial for compound angles.
General Specifications:
Blade Diameter: 600 mm
Motor Power: 3 kW
Machine Weight: 1,050 kg
Machine Dimensions: 2,200 x 1,200 x 1,700 mm
Cutting Unit Specifications:
Blade Diameter: 600 mm
Shaft Diameter: 30 mm
Blade Revolutions: 2,800 rpm
Max Cutting Speed: 6 m/min
Tilting Angles: 90° - 135°
Pivoting Angles: 40° - 157.5°
Blade Output Management: Oleopneumatic
Power Supply:
Electric Power: 400 V / 60 Hz (three-phase)
Air Compressed Supply: 7 Bar
Air Consumption per Cycle: 22 Nl
CSA Compliant
Ideal For:
Cutting aluminum and PVC profiles requiring compound angles
Applications in window and door manufacturing with complex designs
Workshops demanding high precision and versatility in angle cutting
Unlock advanced cutting capabilities with the Kappa Compound Cut Cutting Machine!
