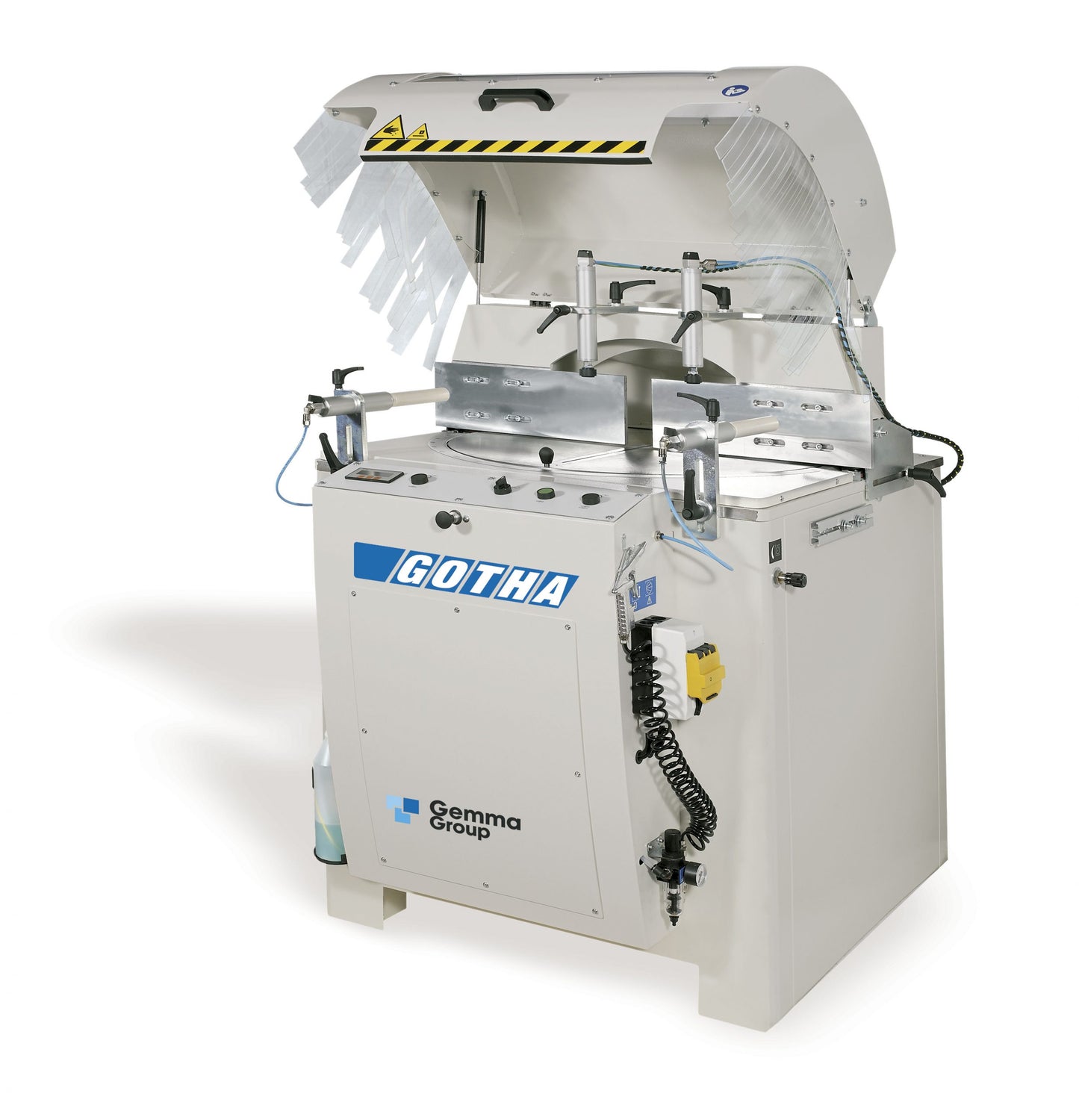

Gotha – High-Capacity Upward Cutting Machine (Ø 600 mm Blade)

The Gotha Upward Cutting Machine delivers powerful and precise single-head cutting with a large Ø 600 mm upward stroke blade. Featuring a pivoting working table, digital angle display, and a wide cutting range, it's ideal for demanding cutting applications.

Key Features:

• Heavy-Duty Construction: Features a robust electrowelded steel basement for exceptional stability and durability.

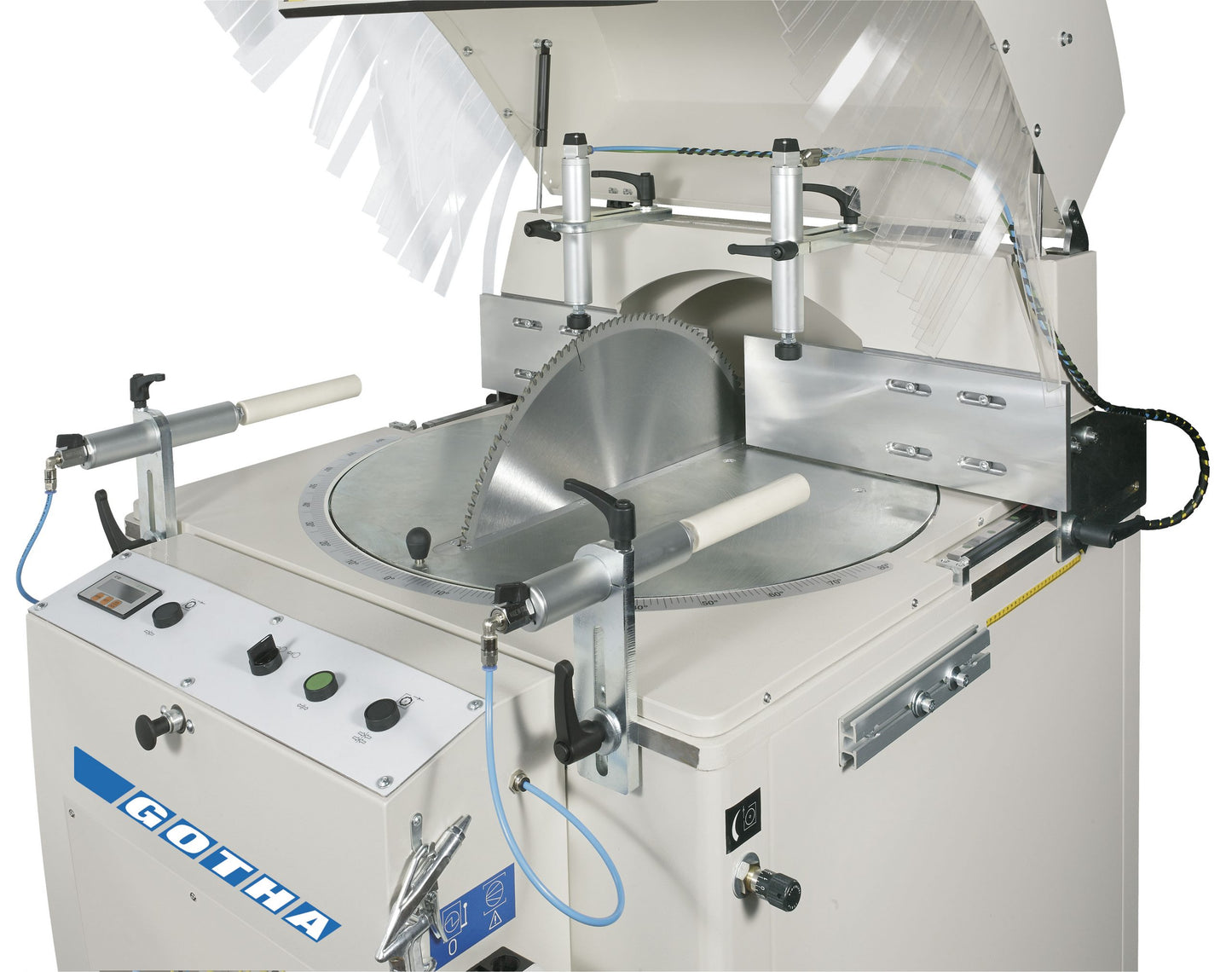

• Secure Workpiece Clamping: Equipped with 2 vertical pneumatic clamps to firmly secure larger materials.
• Versatile Pivoting Table: Allows for easy and precise adjustment of the working table for angled cuts.
• Quick Angle Selection: Mechanical stops enable fast and accurate selection of common angles (45°, 90°, 135°).
• Precise Depth Control: Depth-adjustable back stop with linear guides ensures accurate and repeatable cutting depths.
• Extensive Cutting Angle Range: Capable of cutting angles from 10° to 170°, including intermediate angles for maximum versatility.

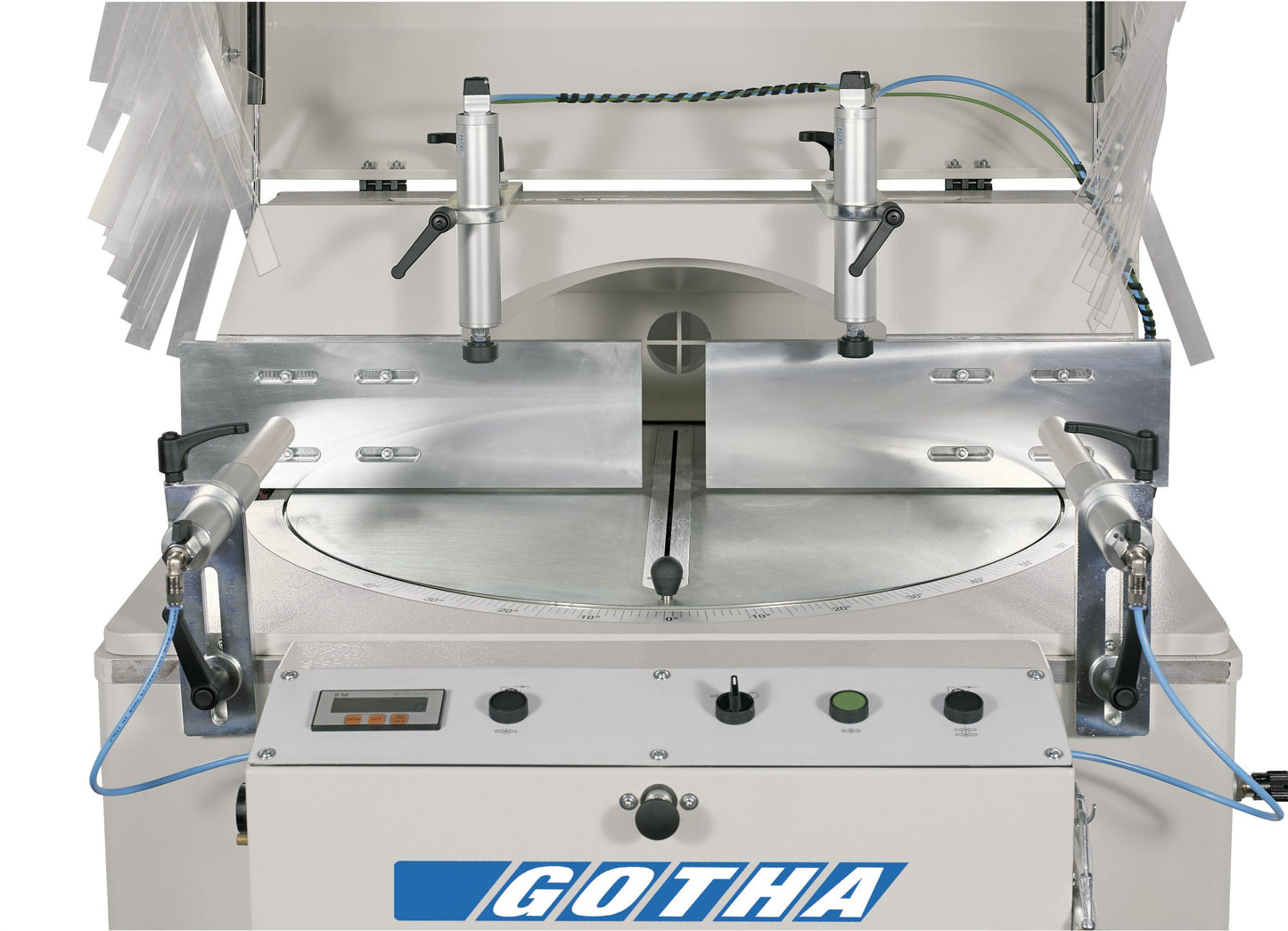

• Digital Angle Display: Provides a clear and precise digital readout of the current cutting angle.
• Efficient Cooling: Venturi lubrication system ensures optimal blade performance and extends its lifespan, especially for larger cuts.

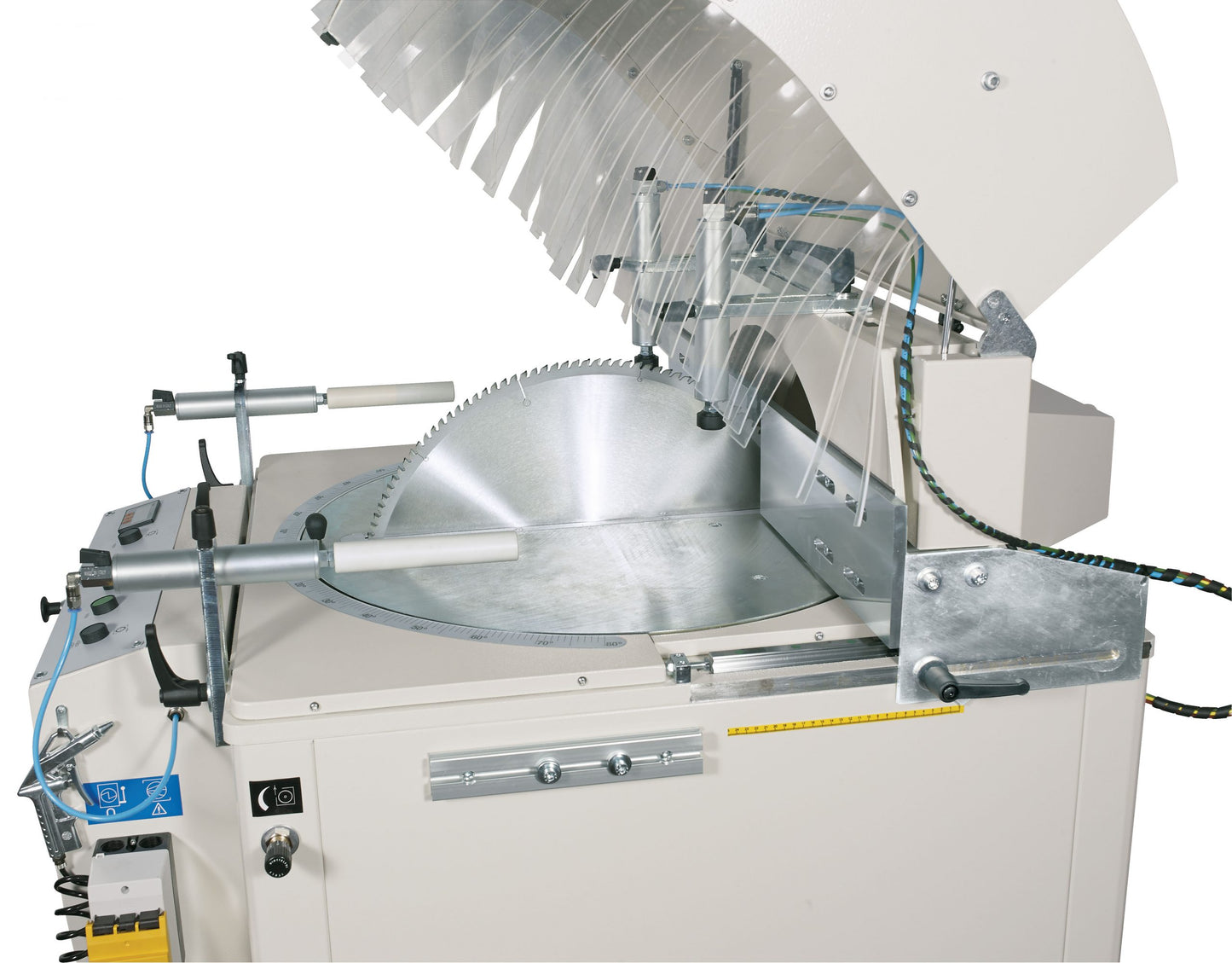

• Included Large Blade: Comes with 1 high-quality Ø 600 mm blade for increased cutting capacity.
• Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.

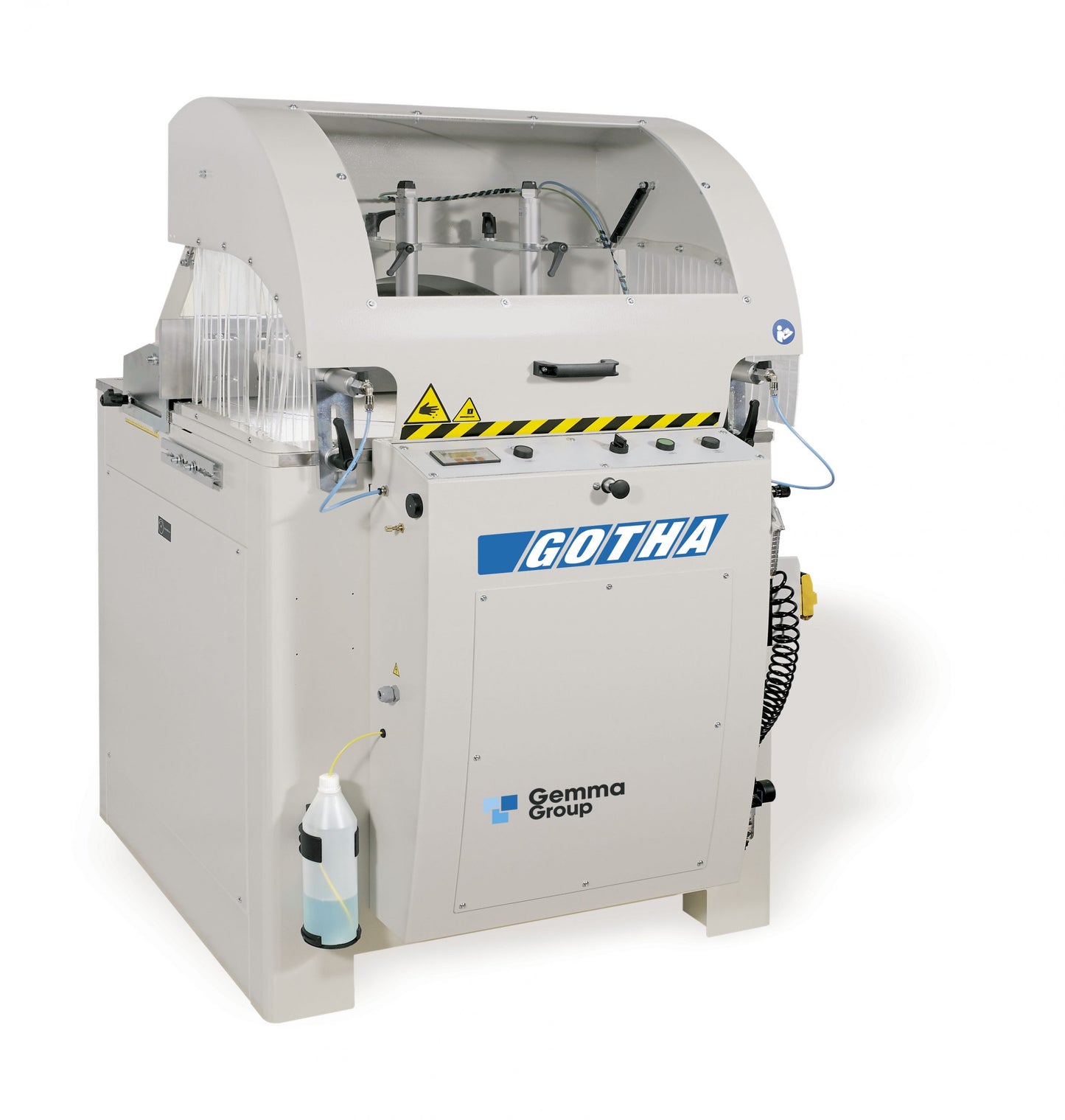

• Safe Operation: Integral cutting area protections with manual opening and closing, and full compliance with CE safety regulations.
• Smooth Blade Movement: Oleopneumatic blade output management ensures controlled and consistent cutting of larger profiles.

General Specifications:

• Blade Diameter: 600 mm
• Motor Power: 3 kW
• Machine Weight: 310 kg
• Machine Dimensions: 1,100 x 1,230 x 1,650 mm

Cutting Capacity:

Cutting Unit Specifications:

• Blade Diameter: 600 mm
• Shaft Diameter: 30 mm
• Blade Revolutions: 2,800 rpm
• Max Cutting Speed: 6 m/min
• Cutting Angles: 10° - 170°
• Blade Output Management: Oleopneumatic

Power Supply:

• Electric Power: 400 V / 60 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 10 Nl
• CSA Compliant

Ideal For:

• Cutting larger aluminum and PVC profiles
• Industrial applications requiring a wide range of precise angle cuts
• Workshops needing high cutting capacity and digital angle accuracy

Maximize your cutting potential with the powerful and precise Gotha Upward Cutting Machine!
