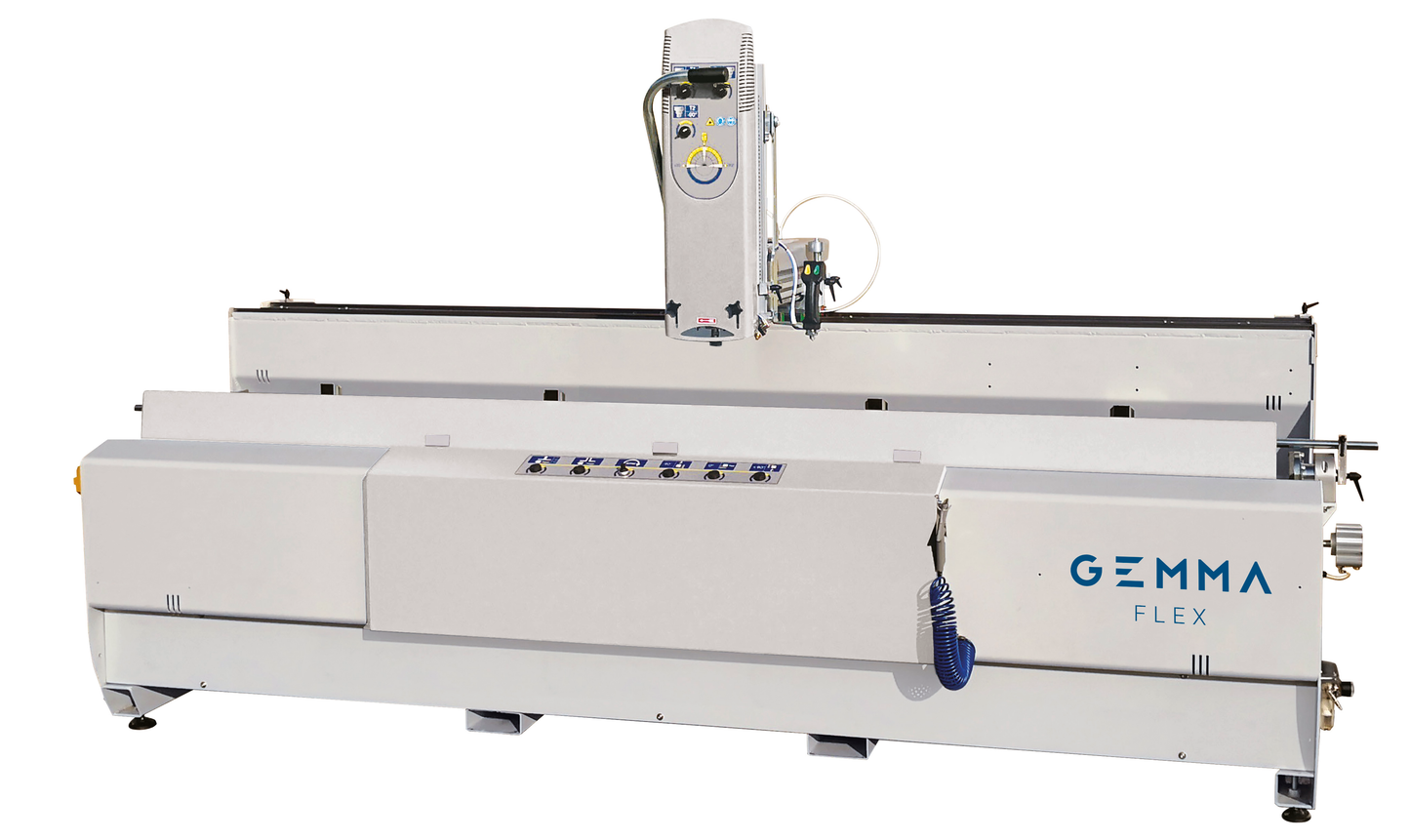

Flex L – High-Capacity Manual Copy Router

The Flex L Manual Copy Router provides exceptional reach and versatility for machining steel, stainless steel, iron, and aluminum. Featuring a large working area and an automatic pivoting table, it's designed for efficient and precise replication using copy templates.

Key Features:

• Robust and Stable: Features a heavy-duty electrowelded steel basement for maximum stability during operation.
• Precise Template Following: Equipped with 3 pneumatic probes with diameters 5/8/10 mm for accurate tracing of your copy templates.

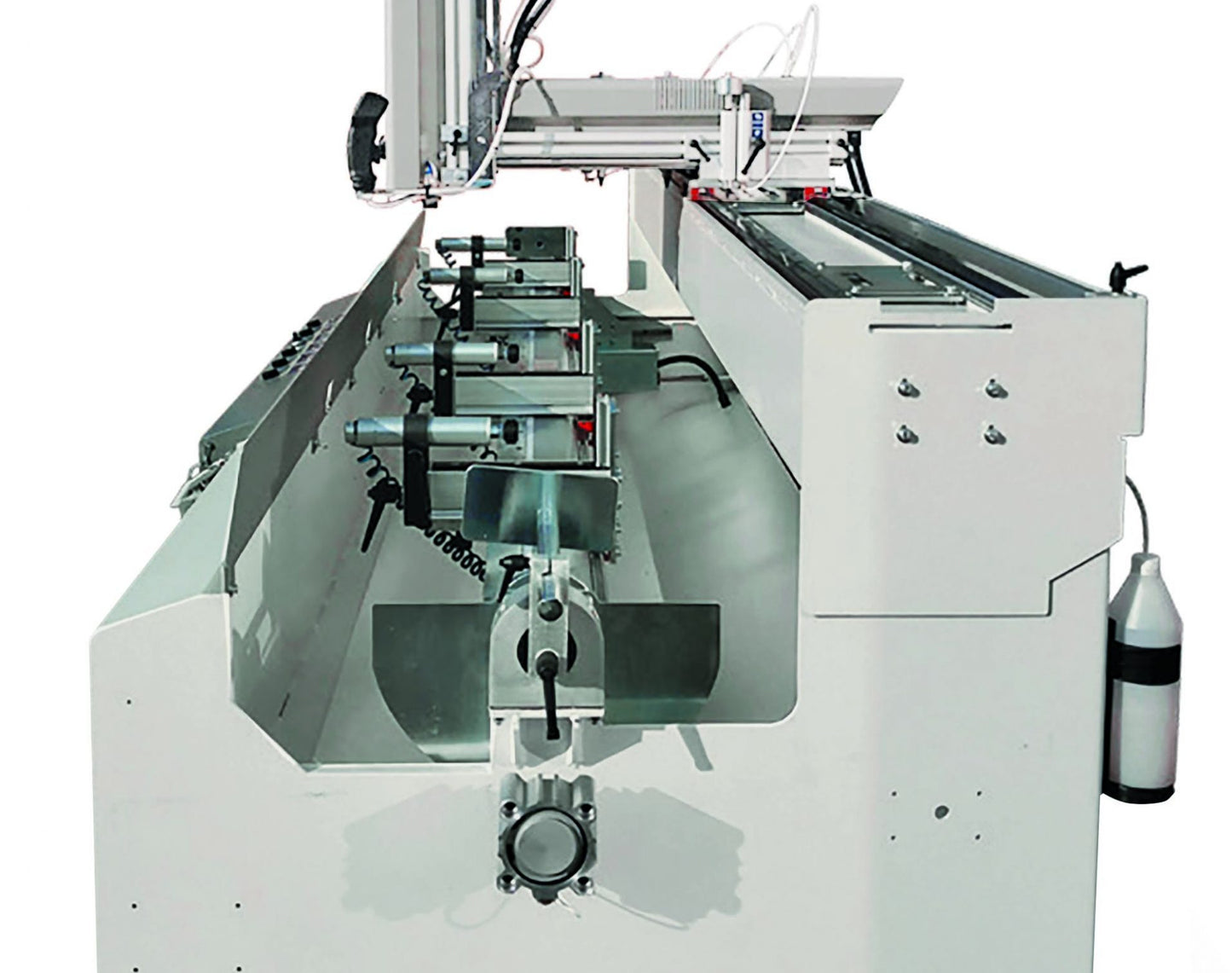

• Secure Workpiece Holding: Includes 4 horizontal pneumatic movable clamps to firmly secure even larger workpieces.
• Efficient Standard Machining: Designed for seamless integration with copy templates for repeatable results.
• Versatile High-Speed Cutting:
  • Powerful 3-phase electrospindle with adjustable speed (2,800 to 12,000 rpm) controlled via inverter and potentiometer.
  • Accepts Ø 8 mm cutters with the included ferrule and plier.
• Automated Table Positioning: Features an automatic working table that pivots -90°/0°/90°, enhancing workflow and precision.
• Accurate Adjustments: Longitudinal and transversal graduated rods with reference stops ensure precise positioning for every cut.
• Optimized Tooling Life: Integrated Venturi lubrication system provides efficient cooling and lubrication, extending the life of your cutters.
• Wide Material Application: Capable of machining steel, stainless steel, iron, and aluminum.
• Comprehensive Safety: Integral cutting area protections and full compliance with CE safety regulations as standard.

Technical Specifications:

• Axes Stroke:
  • X-axis: 3,000 mm (Impressive long reach for larger workpieces)
  • Y-axis: 400 mm
  • Z-axis: 350 mm
• Power Supply: 400 V / 60 Hz (three-phase)
• Cutter Rotation Speed: Adjustable (2,800 - 12,000 rpm)
• Motor Power: 1.1 kW
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 24 Nl
• CSA Compliance

Ideal For:

• Metal fabrication shops handling large components
• Industrial applications requiring extensive machining reach
• Workshops needing automated table positioning for complex cuts

Maximize your machining capabilities with the high-capacity and automated Flex L Manual Copy Router!
