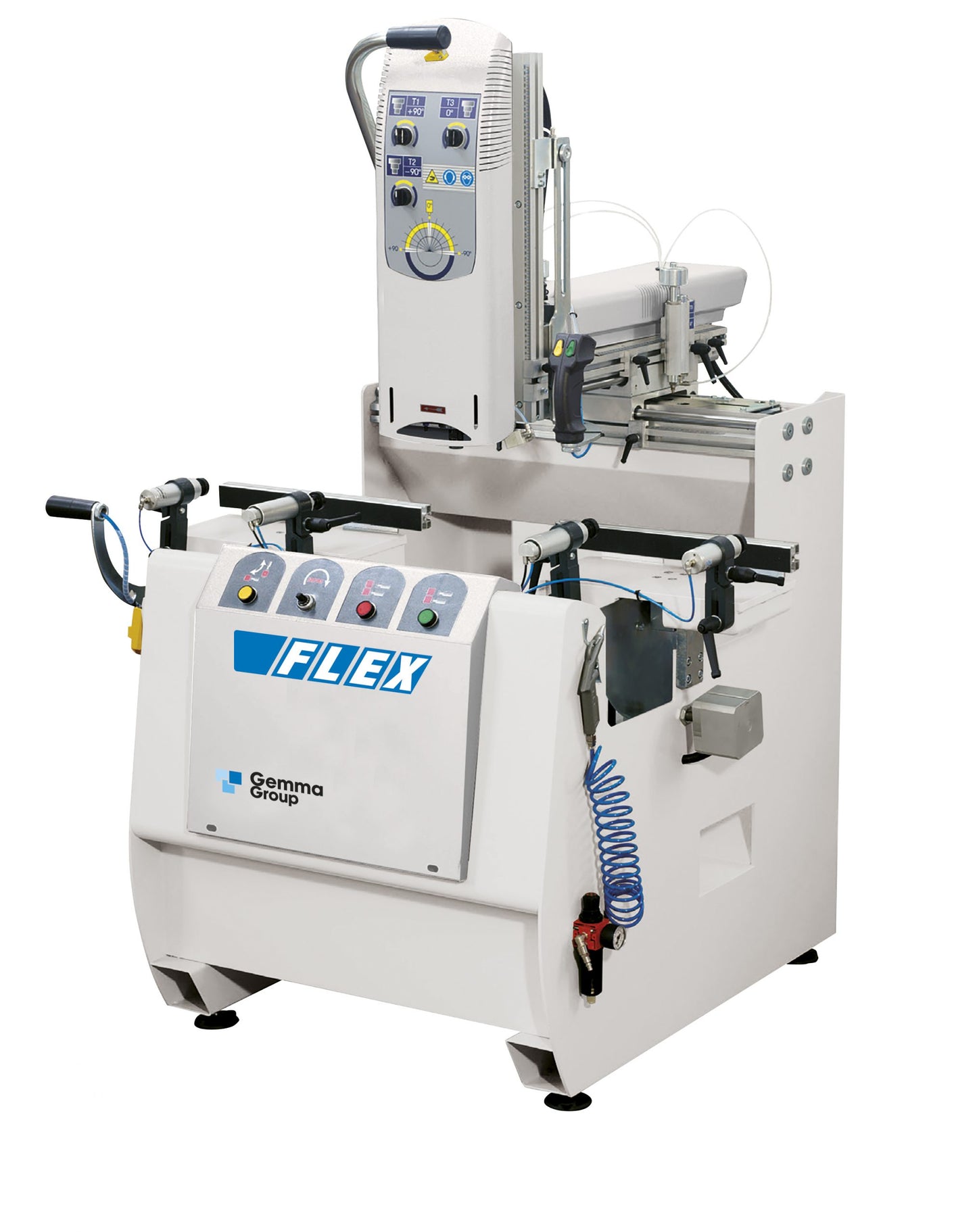

Flex – Manual Copy Router (Pantograph) : Precision and Versatility for Metalworking

Unlock precise and efficient machining for steel, stainless steel, iron, and aluminum with the Flex Manual Copy Router. This robust and user-friendly machine is designed for accurate replication using a copy template.

Key Features:

  • Durable Construction: Features a sturdy electrowelded steel basement for stability and long-lasting performance.
  • Precise Copying: Equipped with 3 pneumatic probes (diameters 5/8/10 mm) for accurate tracing of your copy templates.

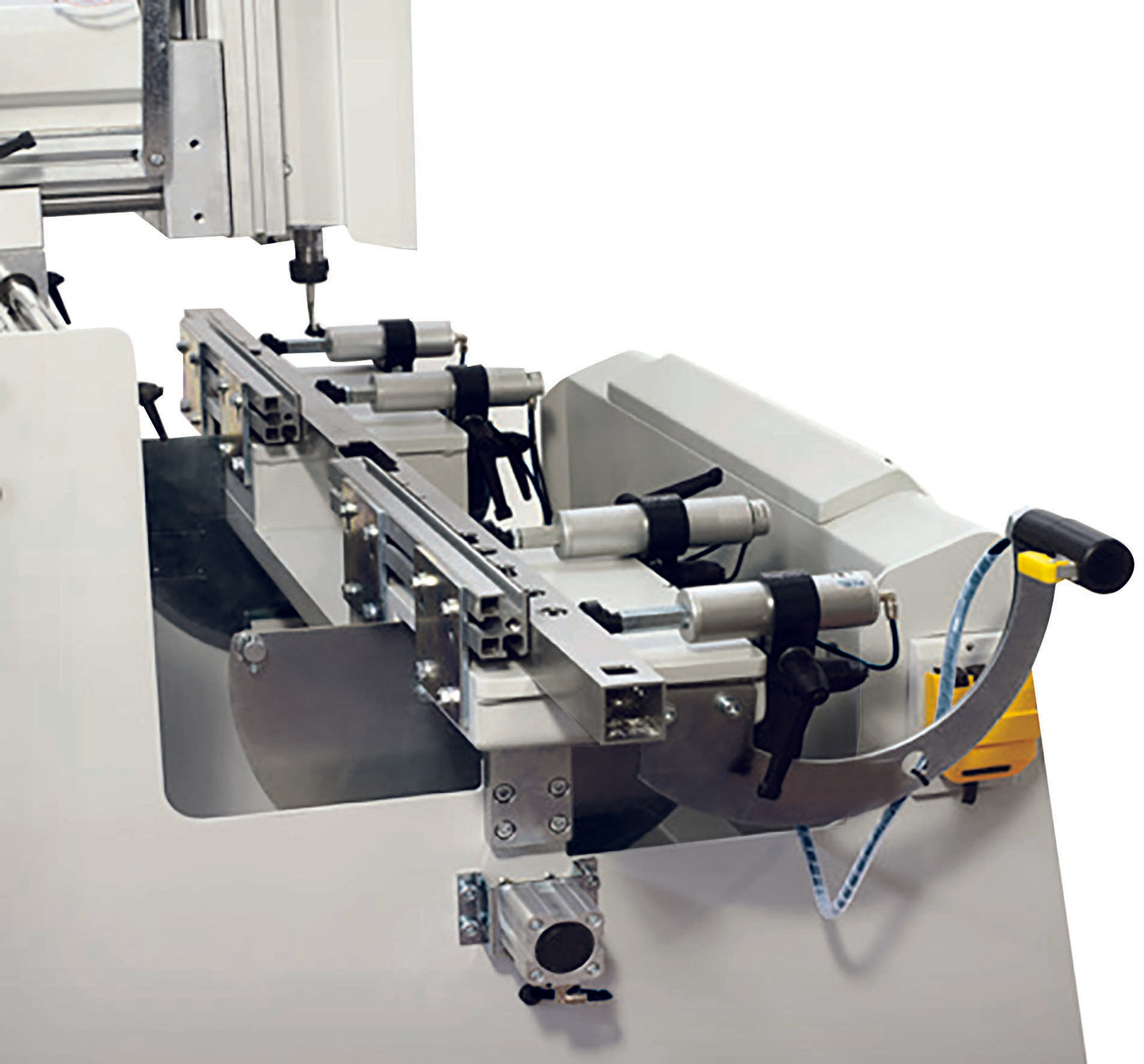

  • Secure Workpiece Holding: Includes 4 horizontal movable pneumatic clamps to firmly secure your material during machining.
  • Versatile Cutting Unit:
    • Powerful 3-phase electrospindle with adjustable speed (2,800 to 12,000 rpm) via inverter and potentiometer.
    • Accepts Ø 8 mm cutters with the included ferrule and plier.

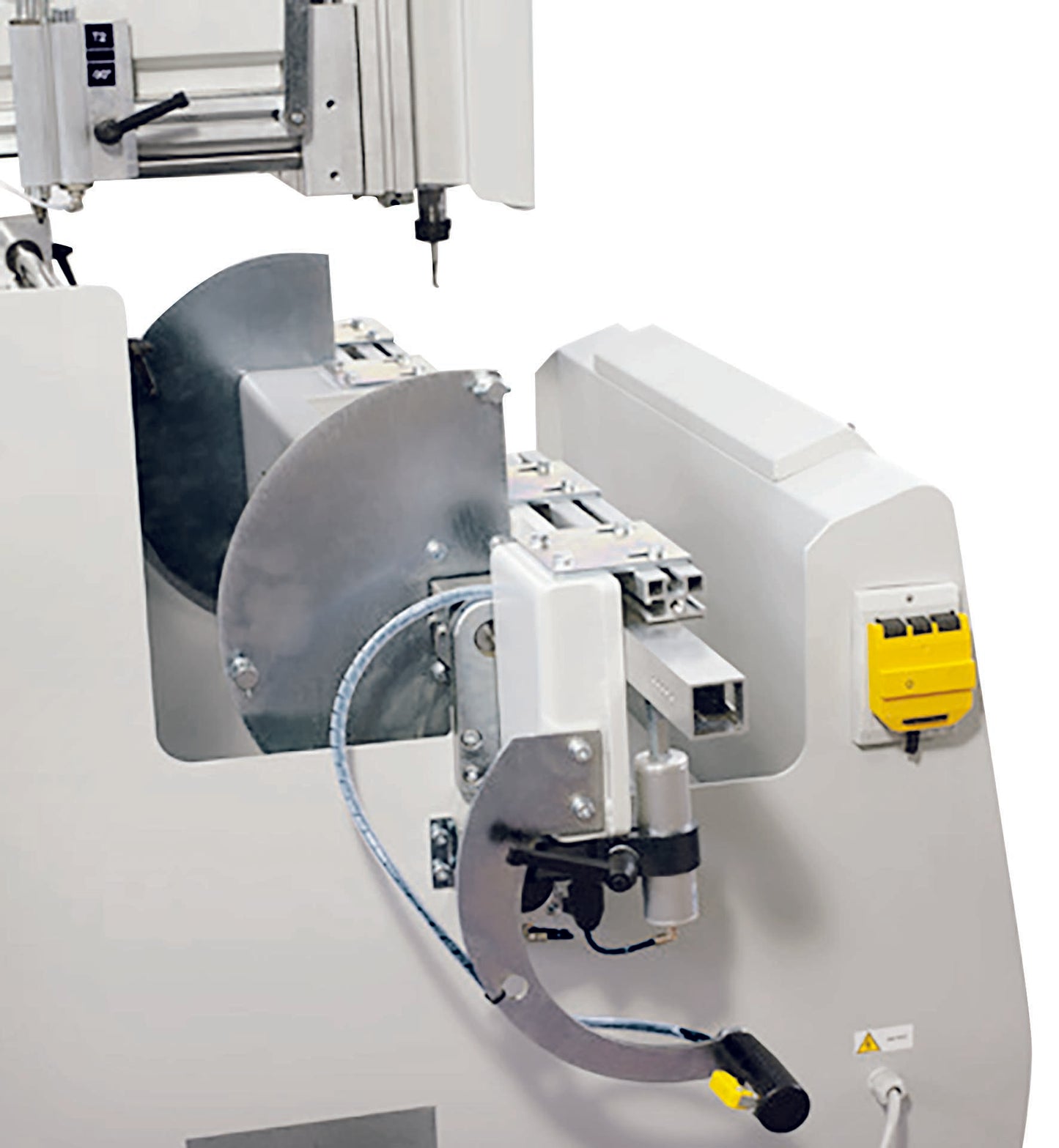

  • Flexible Working Table: Manual working table pivots from -90° to +90°, providing versatility for various machining angles.
  • Accurate Positioning: Features longitudinal and transversal graduated rods with reference stops for precise position adjustments.
  • Efficient Lubrication: Integrated Venturi lubrication system ensures smooth operation and extends tool life.
  • Wide Material Compatibility: Capable of working on steel, stainless steel, iron, and aluminum.
  • Enhanced Safety: Integral cutting area protections and compliance with CE safety regulations ensure a safe working environment.

Technical Specifications:

  • Axis Stroke:
    • X-axis: 575 mm
    • Y-axis: 350 mm
    • Z-axis: 200 mm
  • Power Supply: 400 V / 60 Hz (three-phase)
  • Cutter Rotation Speed: Adjustable (2,800 - 12,000 rpm)
  • Motor Power: 1.1 kW
  • Air Compressed Supply: 7 Bar
  • Air Consumption per Cycle: 5 Nl
  • CSA Compliance

Ideal For:

  • Metal fabricators
  • Workshops
  • Industrial applications requiring precise and repeatable machining.

Order your Flex Manual Copy Router today and experience the perfect blend of power, precision, and safety!
