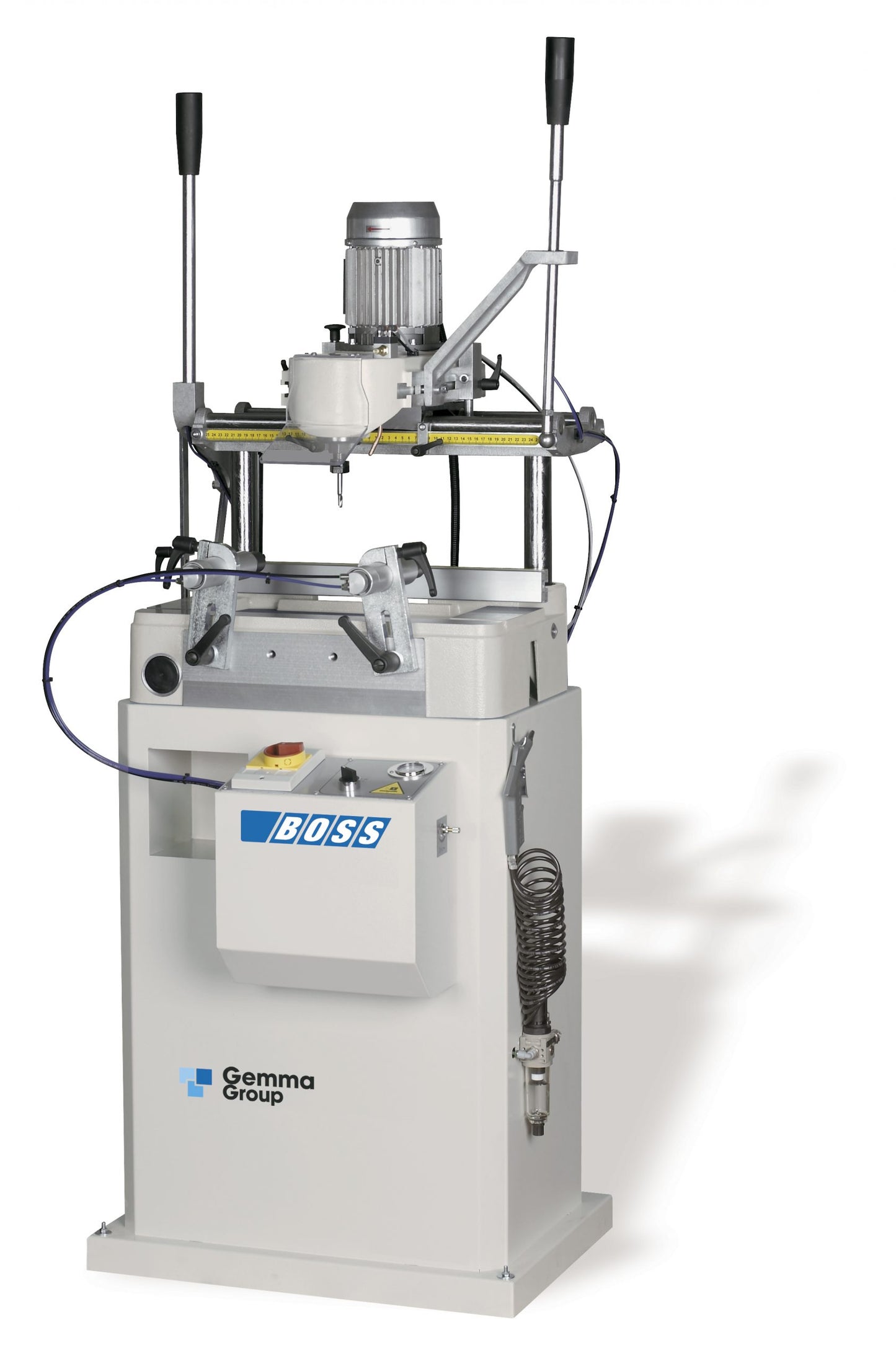

Boss – Compact Manual Copy Router

The Boss Manual Copy Router offers a compact and reliable solution for standard machining tasks. Its user-friendly design and robust construction make it an excellent addition to any workshop.

Key Features:

• Stable Base: Features a durable electrowelded steel basement for reliable operation.
• Versatile Probing: Equipped with 2 probes offering 3 diameters (5/8/10 mm) for accurate template tracing.
• Secure Clamping: Includes 2 horizontal pneumatic clamps to firmly hold your workpiece.
• Standard Machining: Designed for use with copy templates for consistent results.
• Fixed Speed Cutting: Features a 3-phase electrospindle with a fixed motor speed of 3,000 rpm.
• Tool Compatibility: Accepts Ø 8 mm cutters with the included plier.
• Precise Positioning: Longitudinal and transversal graduated rods with reference stops allow for accurate position adjustments.
• Efficient Lubrication: Venturi lubrication system ensures smooth cutting and extends tool life.
• Safe Operation: Cutting area protections and compliance with CE safety regulations as standard.

Technical Specifications:

• Axes Stroke:
  • X-axis: 330 mm
  • Y-axis: 130 mm
  • Z-axis: 150 mm
• Power Supply: 400 V / 60 Hz (three-phase)
• Rotation Speed: Fixed at 3,000 rpm
• Motor Power: 0.75 kW
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 3 Nl
• CSA Compliance

General Specifications: (No specific general specifications were provided in the original text, you might want to add dimensions or weight if available)

Ideal For:

• Smaller workshops with space constraints
• Standard routing and copying tasks on aluminum or light alloys
• Educational or prototyping environments

Get precise and consistent routing with the dependable Boss Manual Copy Router!
