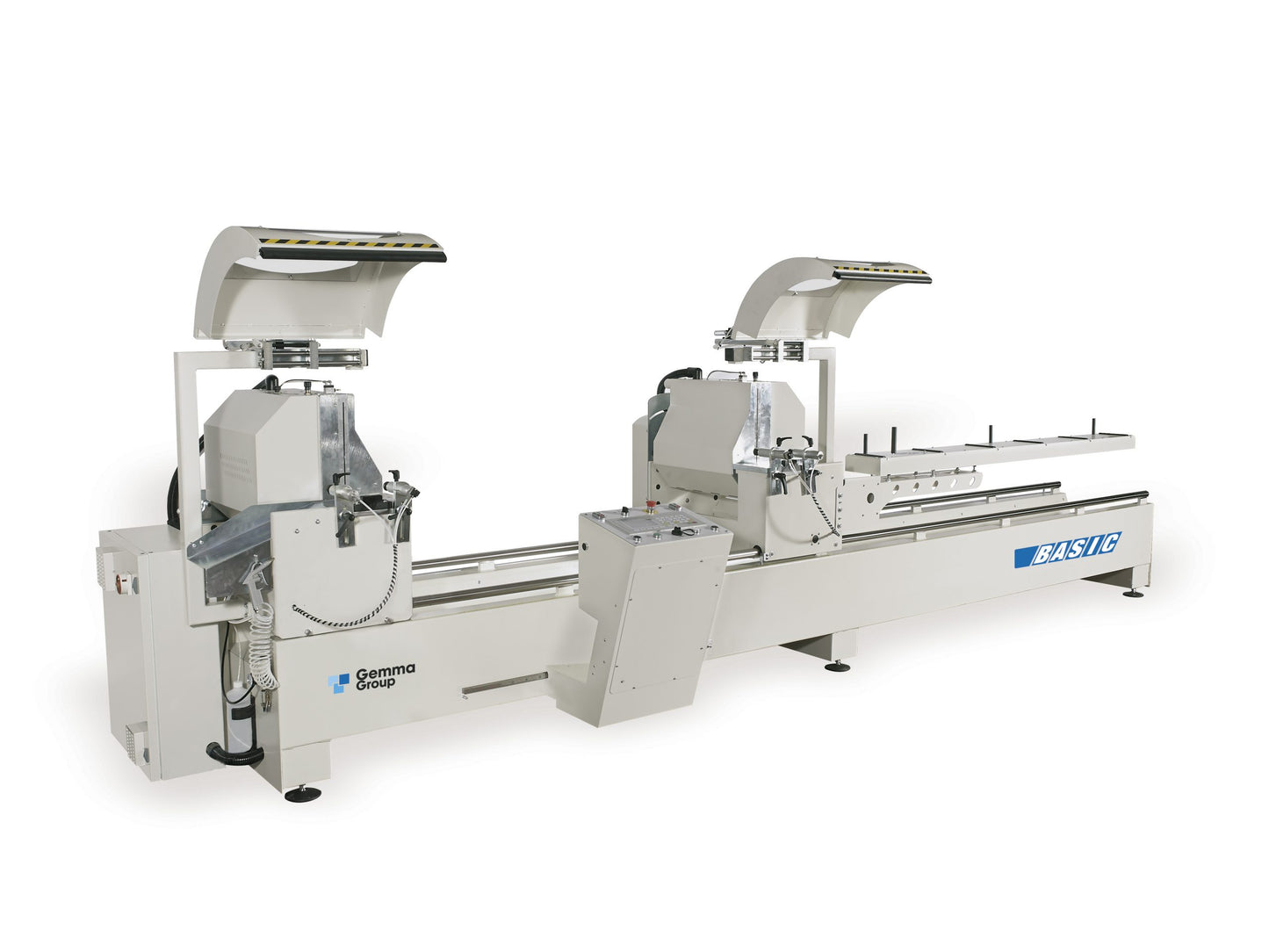

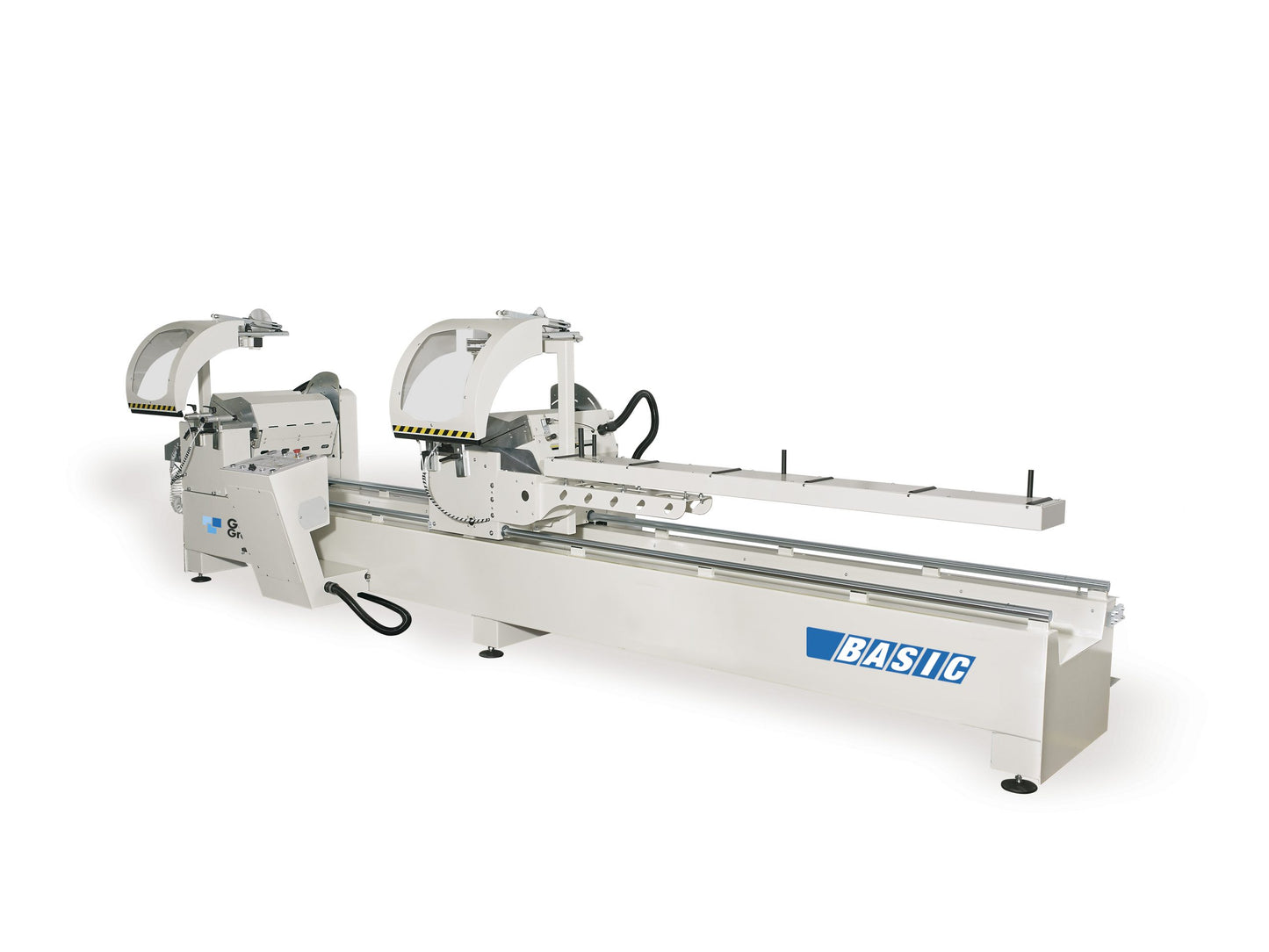

Basic P – Automatic Double Head Cutting Machine (Ø 500 mm Blades)

The Basic P is a robust and efficient automatic double head cutting machine designed for precise cutting of profiles with its fixed left unit and a mobile right unit featuring automatic movement. Its software-controlled pneumatic tilting and user-friendly interface make it ideal for accurate and high-throughput production.

Key Features:

• Heavy-Duty Structure: Features a stable electrowelded steel basement for reliable and accurate cutting operations.
• Integrated Feeding System: Combines a feeding roller conveyor with the mobile head for smooth and automated material processing.
• Secure Pneumatic Clamping: Equipped with 4 horizontal pneumatic clamps to firmly secure profiles during cutting.
• Precise Axis Control: Axes movements are controlled by brushless motors for accurate and repeatable positioning.
• Smooth Mobile Head Movement: The mobile head travels on round guides for consistent and precise positioning.
• Software-Controlled Angle Cutting: Pneumatic tilting for 20°, 45°, 90°, and 135° angles is directly controlled by the software.
• Mechanical Stops for Intermediate Angles: Allows for quick and easy setting of other desired cutting angles.
• Efficient Cutting Lubrication: Venturi cutting lubrication system uses pure oil for optimal blade performance and longevity.
• High-Performance Blades: Includes 2 high-quality Ø 500 mm blades for clean and accurate cuts.
• Advanced Control Panel:
  • Latest generation electronic control unit with a user-friendly 10.4” color touchscreen interface.
  • Dedicated 1-axis Windows PC for seamless interface and electronic axes management.
  • HICAM 2 Software: Powerful tool for uploading and running machining programs, managing lists, and visualizing profile/workpiece data.
  • Connectivity options: Ethernet, Wi-Fi, and teleassistance for remote support and data transfer.
  • Network ports: RJ 45 and USB for easy integration into existing networks.
• Comprehensive Safety: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.
• Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.

General Specifications:

• Blade Diameter: 500 mm
• Motor Power (x2): 1.8 kW
• Machine Weight: 1,200 kg
• Machine Dimensions: 6,000 x 1,650 x 1,700 mm

Cutting Capacity:

Positioning Axes:

• X-axis (Mobile Head Stroke): 4,600 mm
• X-axis Speed: 20 m/min

Cutting Unit Specifications:

• Blade Diameter: 500 mm
• Shaft Diameter: 30 mm
• Blade Revolutions: 2,800 rpm
• Max Cutting Speed: 6 m/min
• Tilting Angles: 20° - 135° (Software Controlled)
• Cutting Angles: 20° - 135°
• Blade Output Management: Oleopneumatic

Cutting Specifications:

• Minimum Cutting Length (between blades): 320 mm
• Maximum Cutting Length (between blades): 4,600 mm
• Under and Oversize Cuts: Possible via software

Power Supply:

• Electric Power: 400 V / 60 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 33 Nl
• CSA Compliant


Ideal For:

• High-volume cutting of aluminum and PVC profiles
• Applications requiring precise and automated double head cutting
• Manufacturing environments demanding software-controlled angle adjustments and efficient material flow

Maximize your productivity with the automated and precise Basic P Double Head Cutting Machine!
