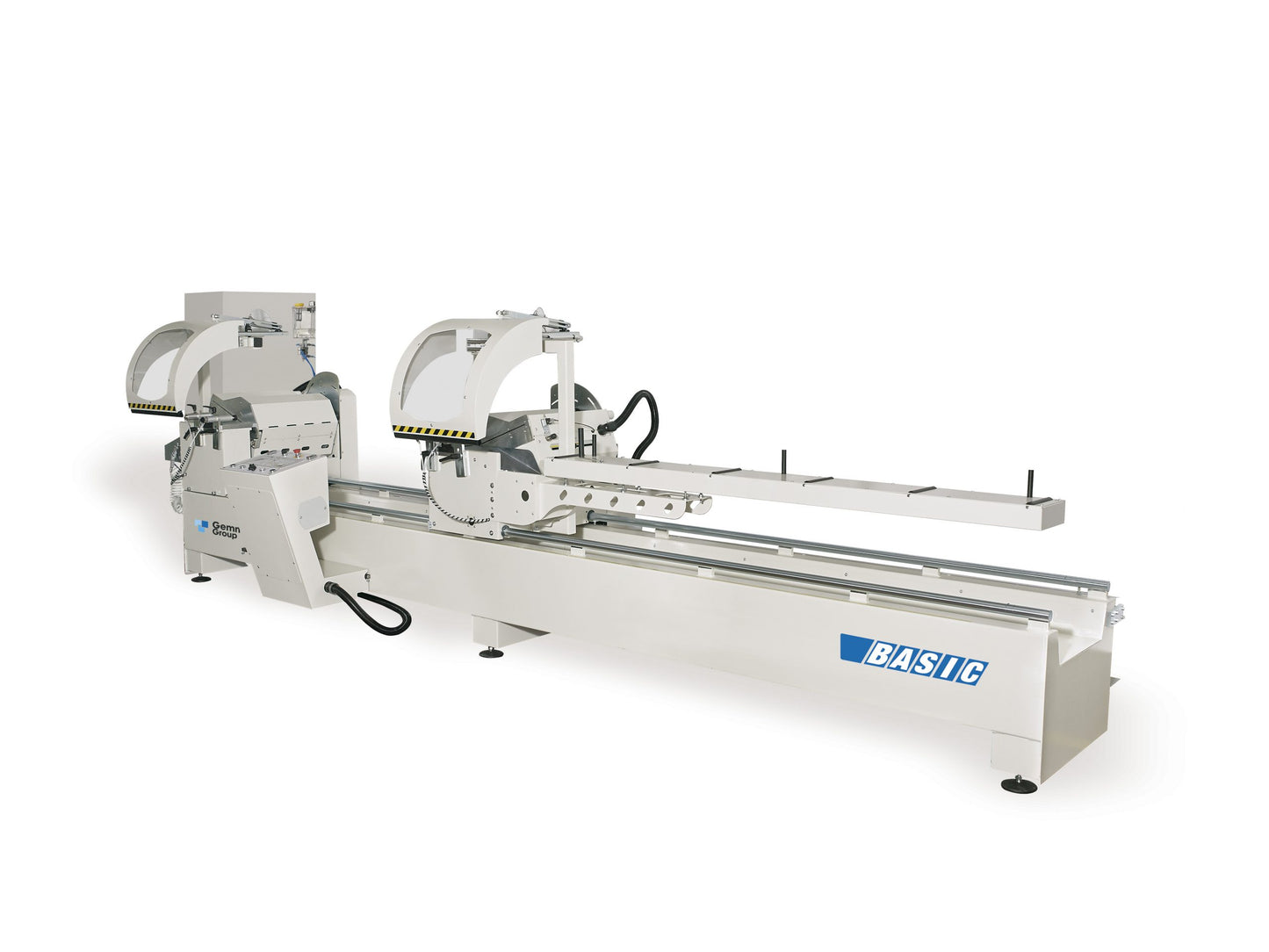

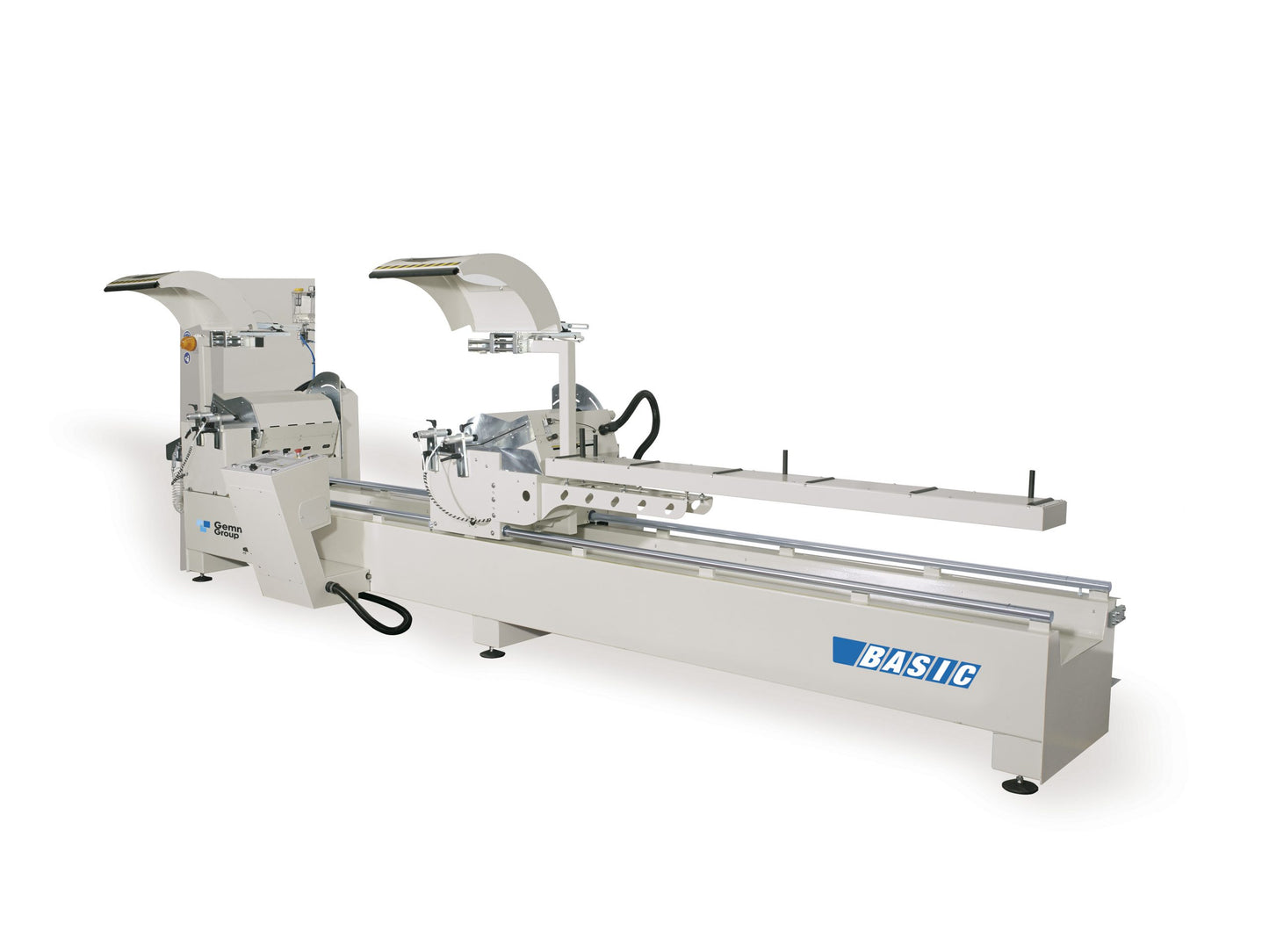

Basic A – Advanced Automatic Double Head Cutting Machine with Electronic Tilting (Ø 500 mm Blades)

The Basic A is a sophisticated automatic double head cutting machine designed for high-precision profile cutting. Featuring electronic tilting between 20° and 135° controlled by advanced software, along with a user-friendly 3-axis control system, it offers exceptional accuracy and versatility for demanding production environments.

Key Features:

• Robust and Stable: Features a durable electrowelded steel basement for reliable and accurate cutting operations.
• Integrated Feeding System: Combines a feeding roller conveyor with the mobile head for smooth and automated material processing.

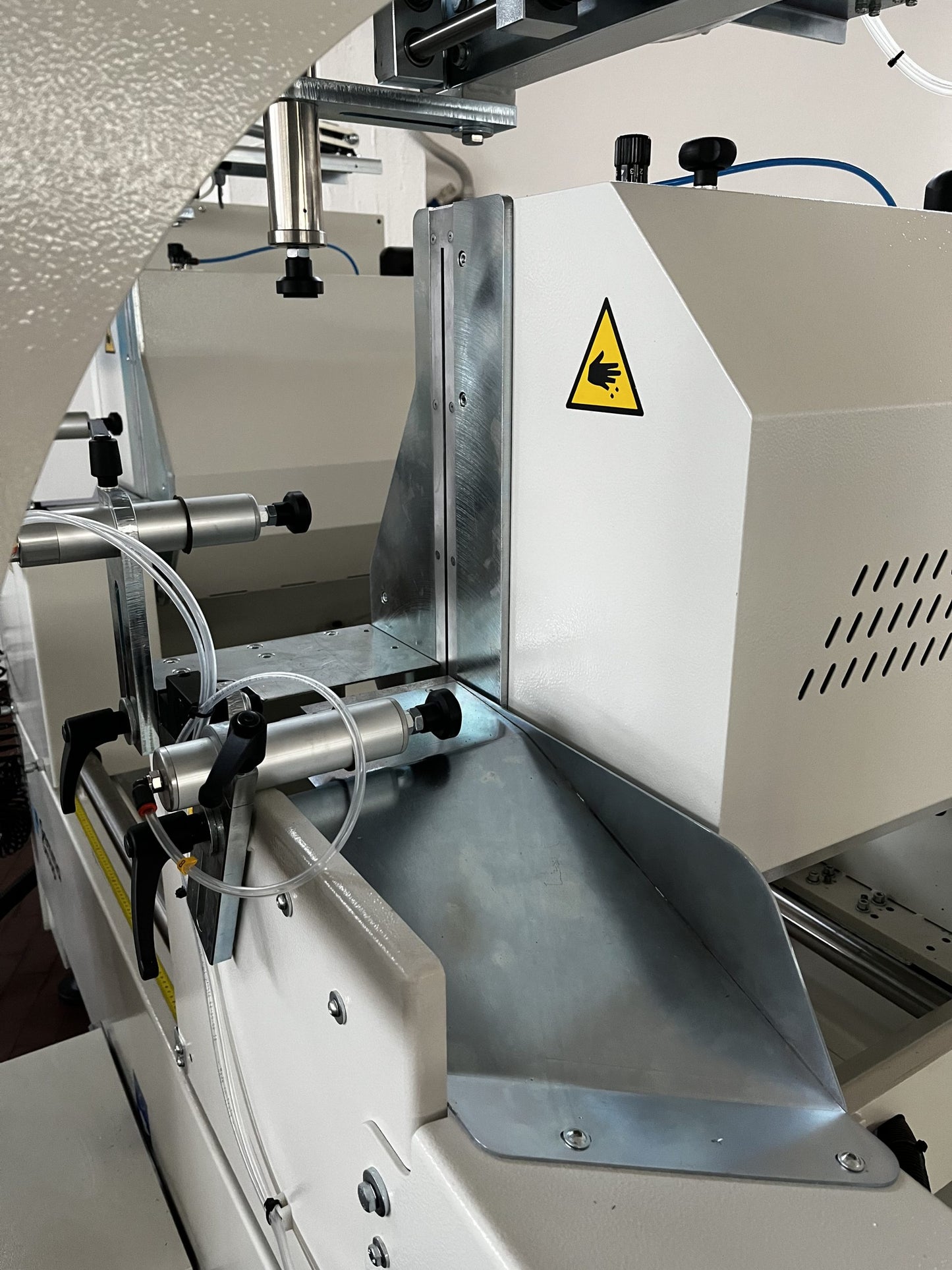

• Secure Pneumatic Clamping: Equipped with 4 horizontal pneumatic clamps to firmly secure profiles during cutting.
• Precise Axis Control: Axes movements are controlled by brushless motors for accurate and repeatable positioning.
• Smooth Mobile Head Movement: The mobile head travels on round guides for consistent and precise positioning.
• Electronic Angle Control: Precise tilting between 20° and 135° is electronically controlled via the intuitive software interface.

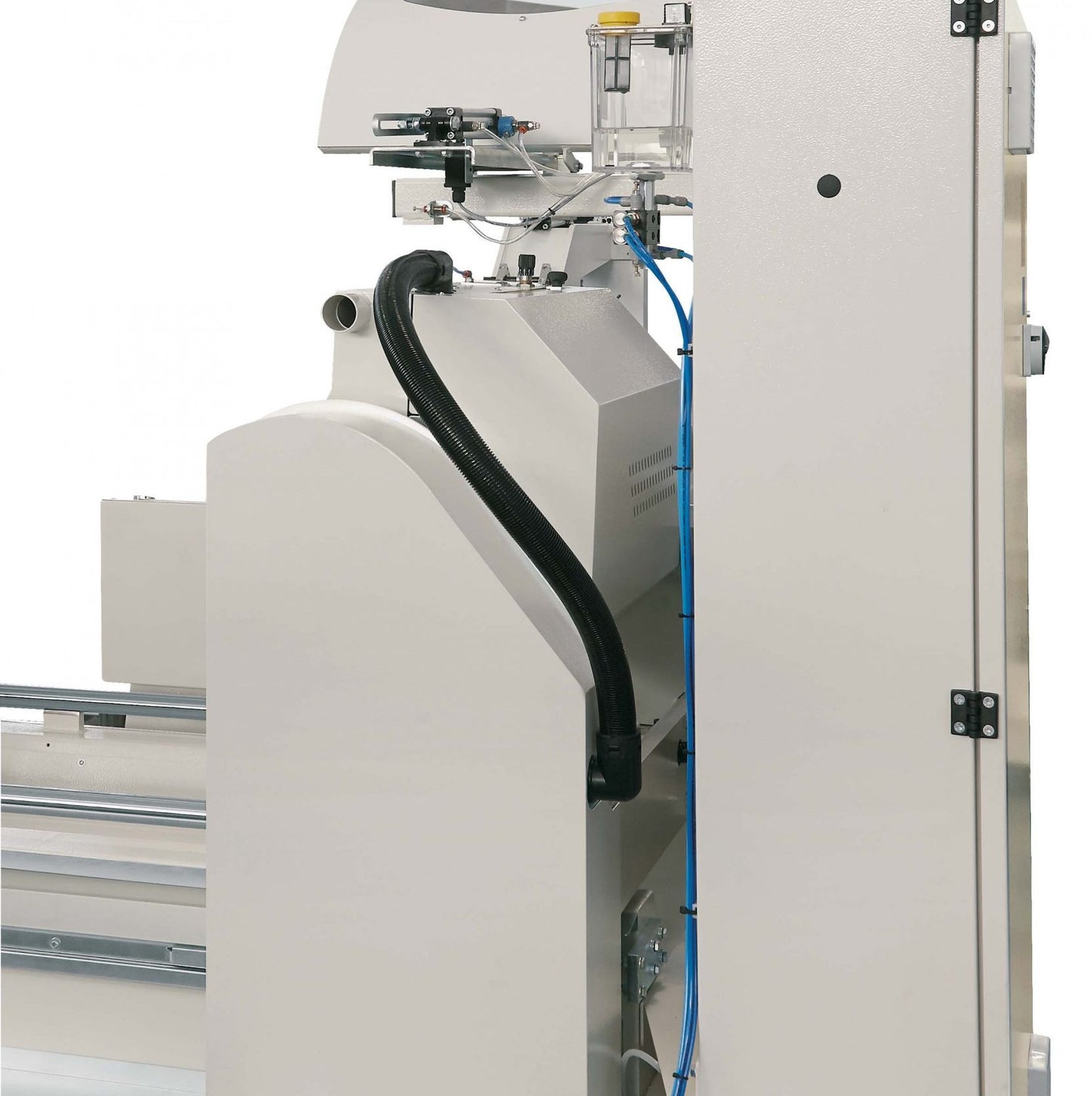

• Efficient Cutting Lubrication: Microdrop cutting lubrication system uses pure oil for optimal blade performance and longevity.
• High-Performance Blades: Includes 2 high-quality Ø 500 mm blades for clean and accurate cuts.

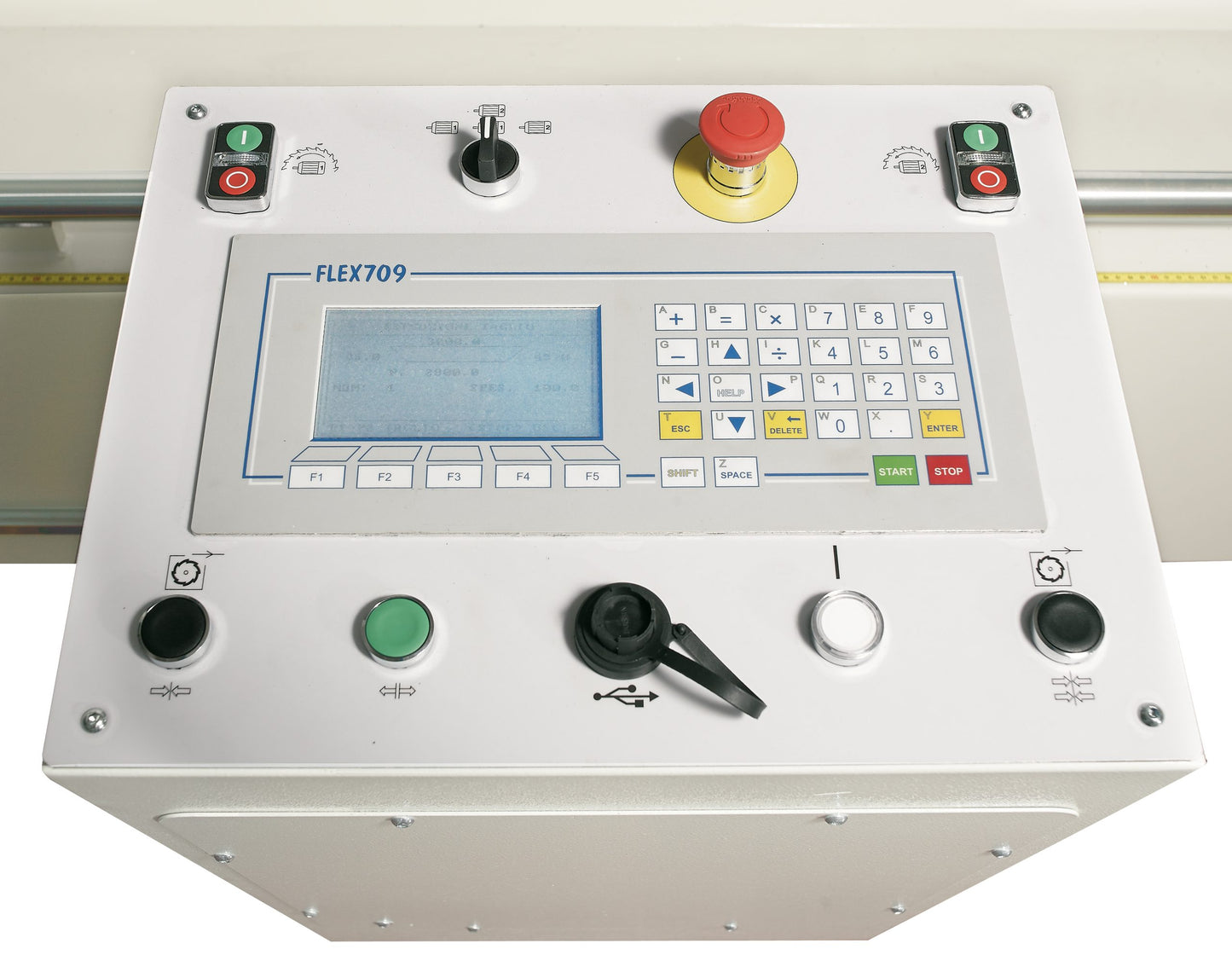

• Advanced 3-Axis Control Panel:

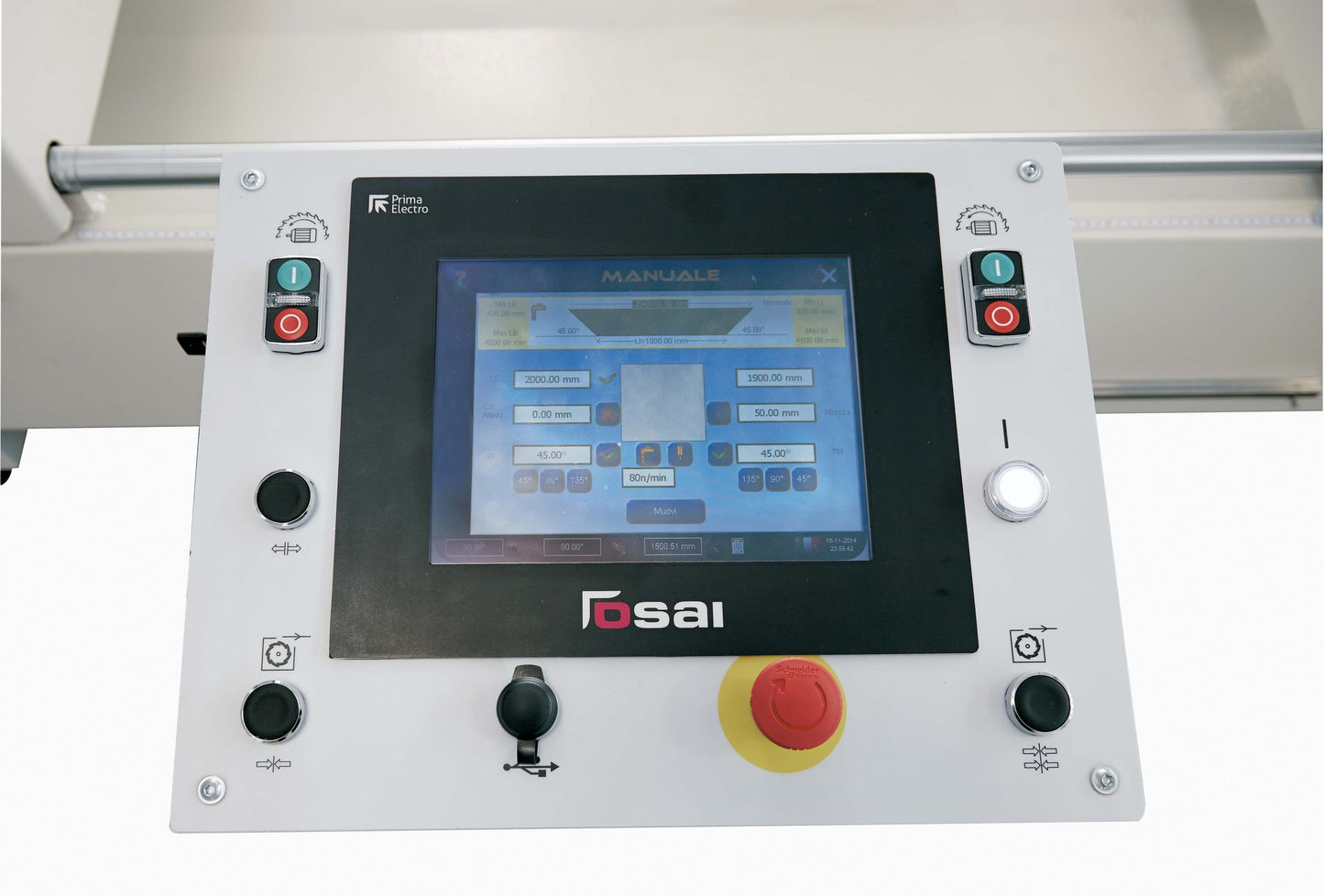

  • Latest generation electronic control unit with a user-friendly 10.4” color touchscreen interface.
  • Dedicated 3-axis Windows PC for seamless interface and comprehensive electronic axes management.
  • HICAM 2 Software: Powerful tool for uploading and running complex machining programs, managing lists, and visualizing profile/workpiece data.
  • Connectivity options: Ethernet, Wi-Fi, and teleassistance for remote support and efficient data transfer.
  • Network ports: RJ 45 and USB for easy integration into existing networks.
• Comprehensive Safety: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.

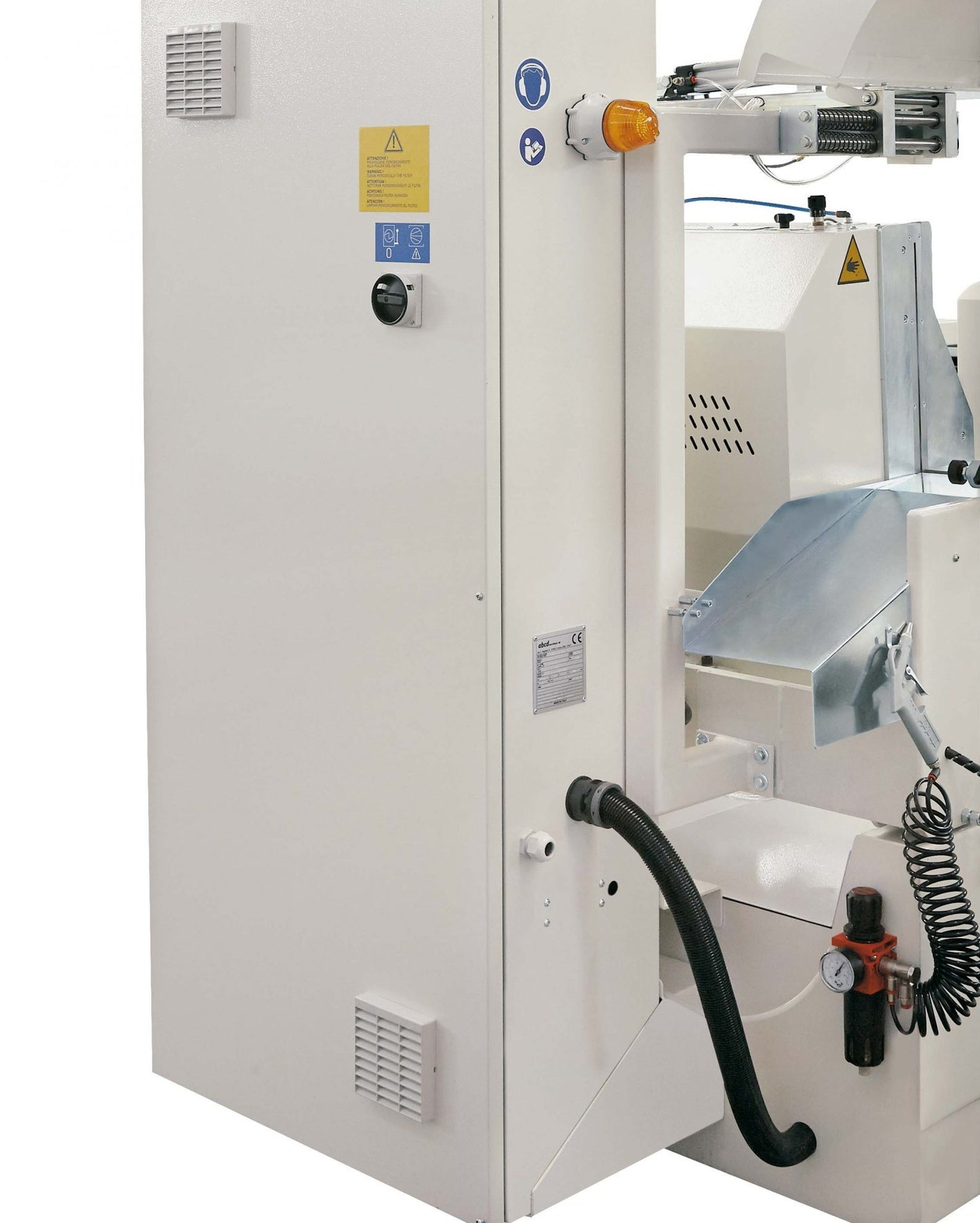

• Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.

General Specifications:

• Blade Diameter: 500 mm
• Motor Power (x2): 1.8 kW
• Machine Weight: 1,600 kg
• Machine Dimensions: 6,000 x 1,650 x 1,700 mm

Cutting Capacity:

Positioning Axis:

• X-axis (Mobile Head Stroke): 4,600 mm
• X-axis Speed: 20 m/min

Cutting Unit Specifications:

• Blade Diameter: 500 mm
• Shaft Diameter: 30 mm
• Blade Revolutions: 2,800 rpm
• Max Cutting Speed: 6 m/min
• Tilting Angles: 20° - 135° (Electronically Controlled)
• Cutting Angles: 20° - 135°
• Blade Output Management: Oleopneumatic

Cutting Specifications:

• Minimum Cutting Length (between blades): 320 mm
• Maximum Cutting Length (between blades): 4,600 mm
• Under and Oversize Cuts: Possible via software

Power Supply:

• Electric Power: 400 V / 60 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 28 Nl
• CSA Compliant

Optional Extras:

• Blade Ø 500 mm
• Central Intermediate Support for enhanced stability of longer profiles.
• Profile Final Support for improved cutting accuracy on the end of profiles.
• Couple of Vertical Clamps for External Cuts, providing additional securing options.
• Motorized Belt Conveyor for Swarf Removal, automating waste management.
• Automatic Device for Measuring Profile Height, for precise material input.
• Label Printer for easy identification of cut pieces.
• Safety Protection with Photocells for enhanced operator safety.
• Oil Tank 25 l for extended lubrication cycles.
• Autotransformer for Special Voltage (230V/480/600V), ensuring compatibility with various power supplies.

Ideal For:

• High-volume cutting of aluminum and PVC profiles requiring precise electronic angle adjustments.
• Applications demanding sophisticated 3-axis control and advanced programming capabilities.
• Manufacturing environments focused on automation, accuracy, and efficient material handling.

Experience unparalleled precision and automation with the Basic A Double Head Cutting Machine!
