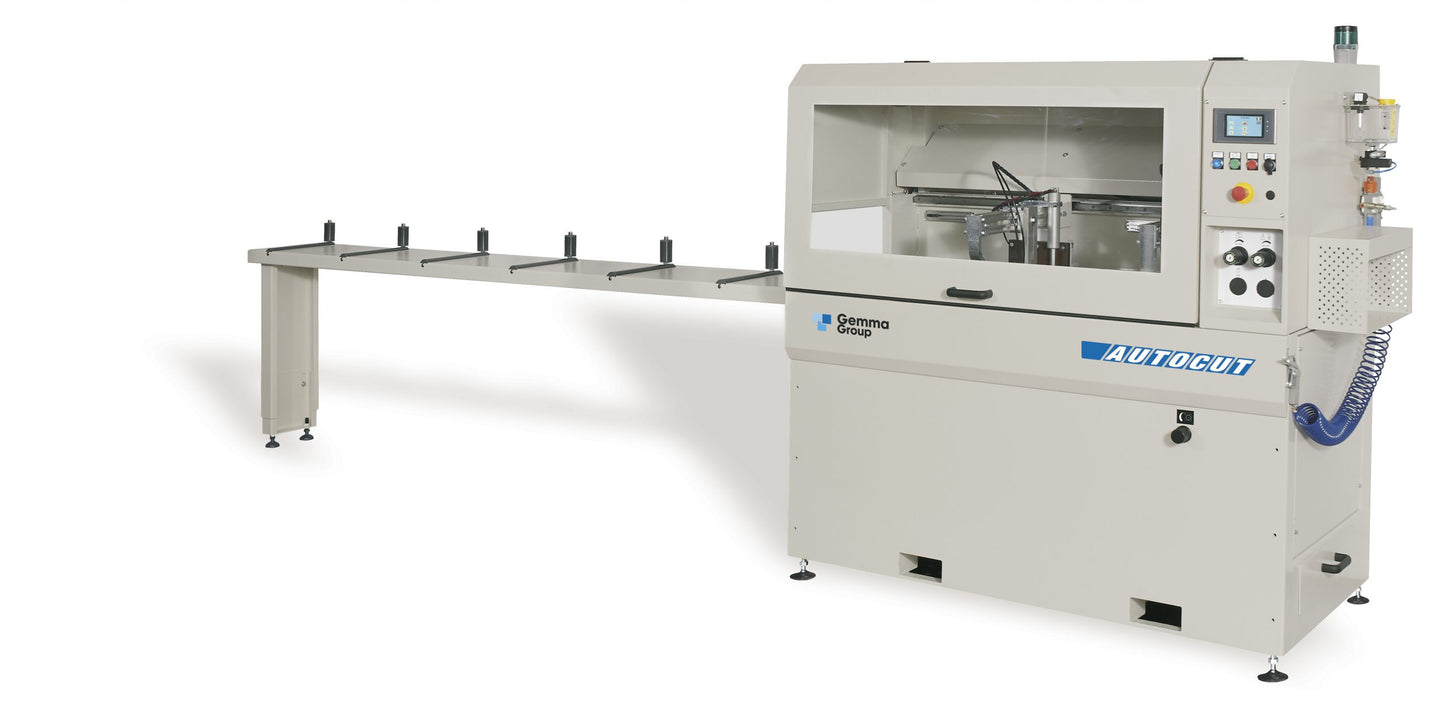

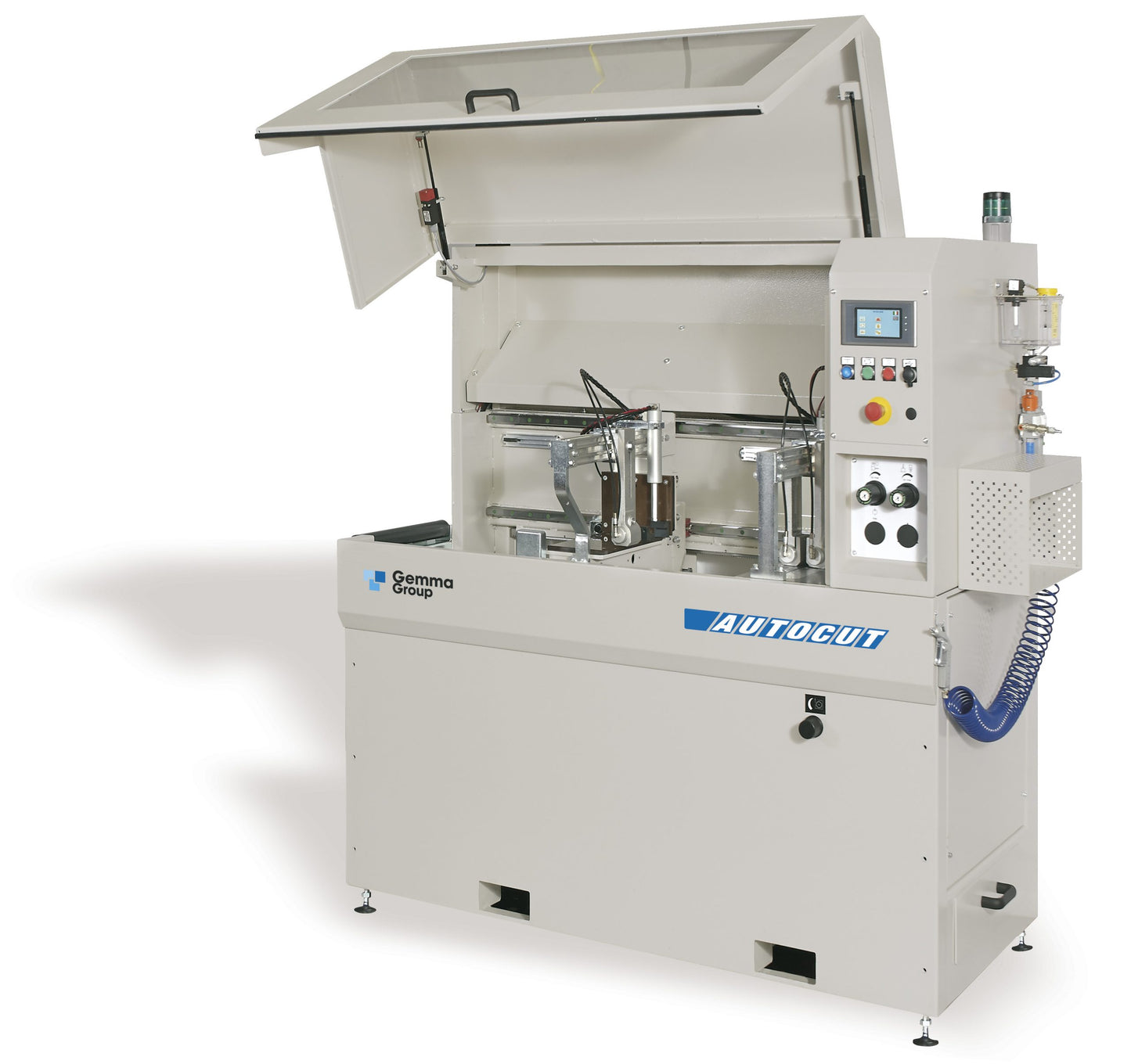

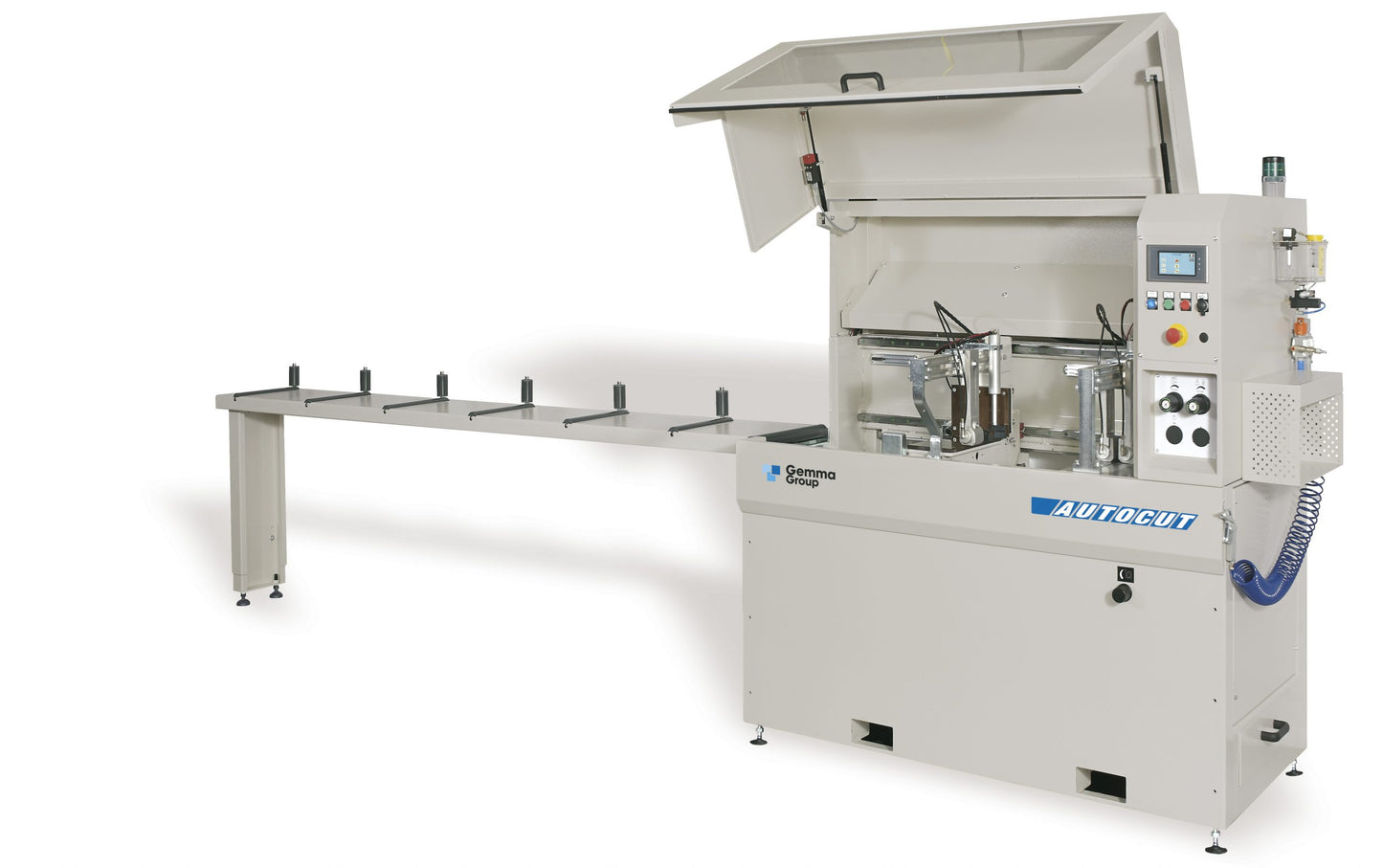

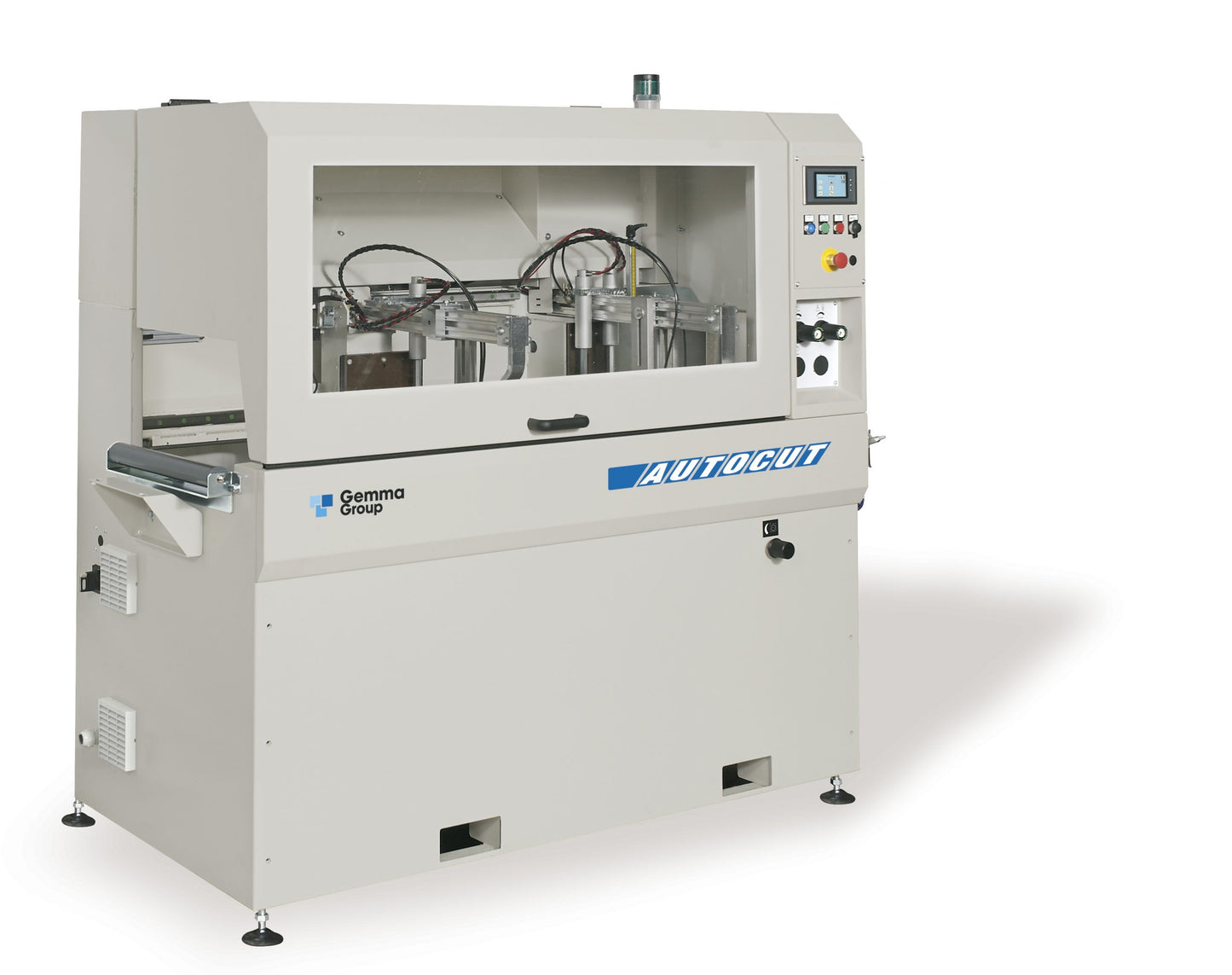

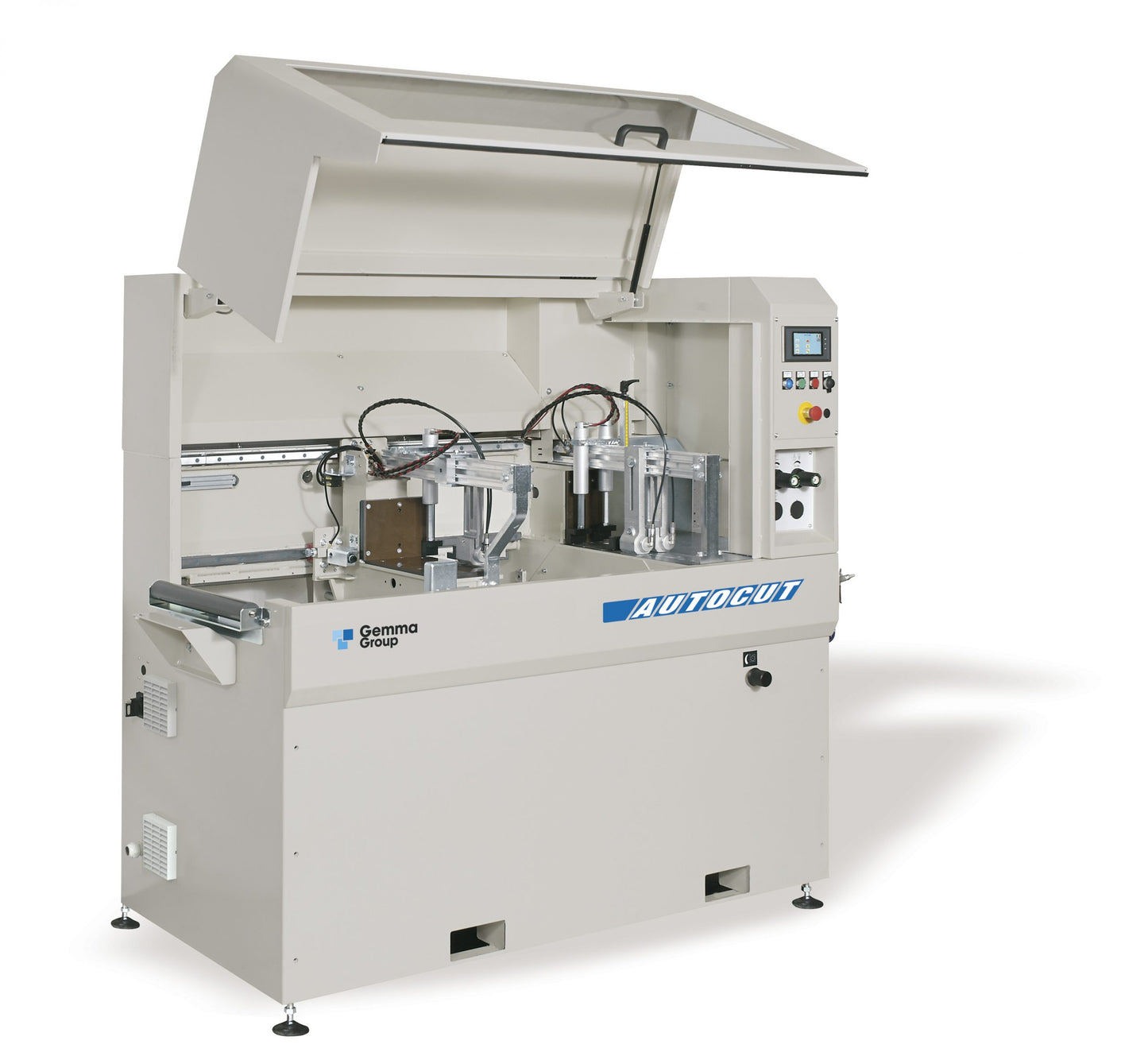

Autocut – Automatic Single Head Cutting Machine (90° Cuts)

The Autocut is a high-performance automatic single-head saw for aluminum designed for precise 90° cuts with automated profile feeding. Its robust construction, advanced control system, and efficient operation make it ideal for high-volume production.

Key Features:

• Heavy-Duty Structure: Features a stable electrowelded steel basement for reliable and accurate cutting.

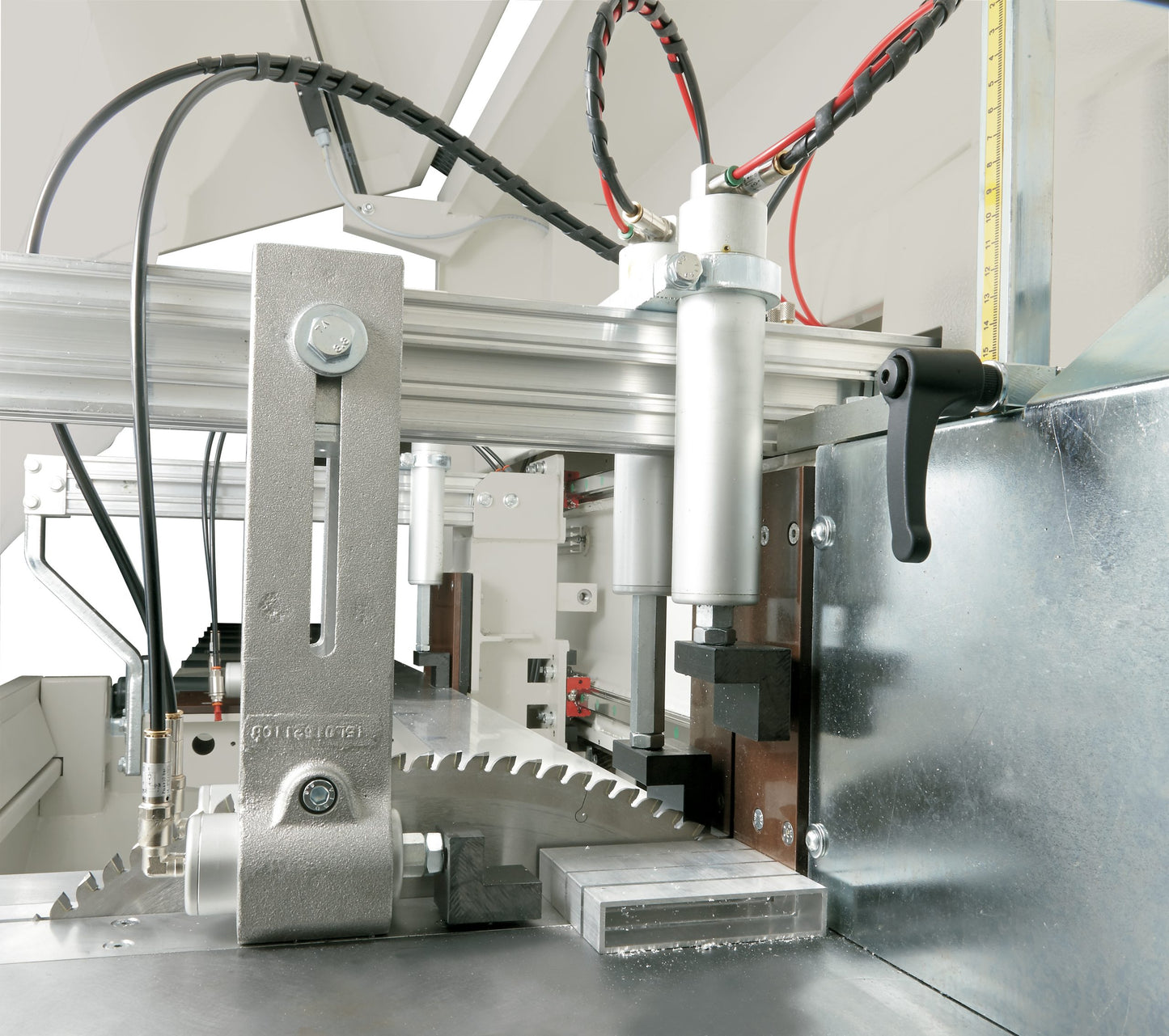

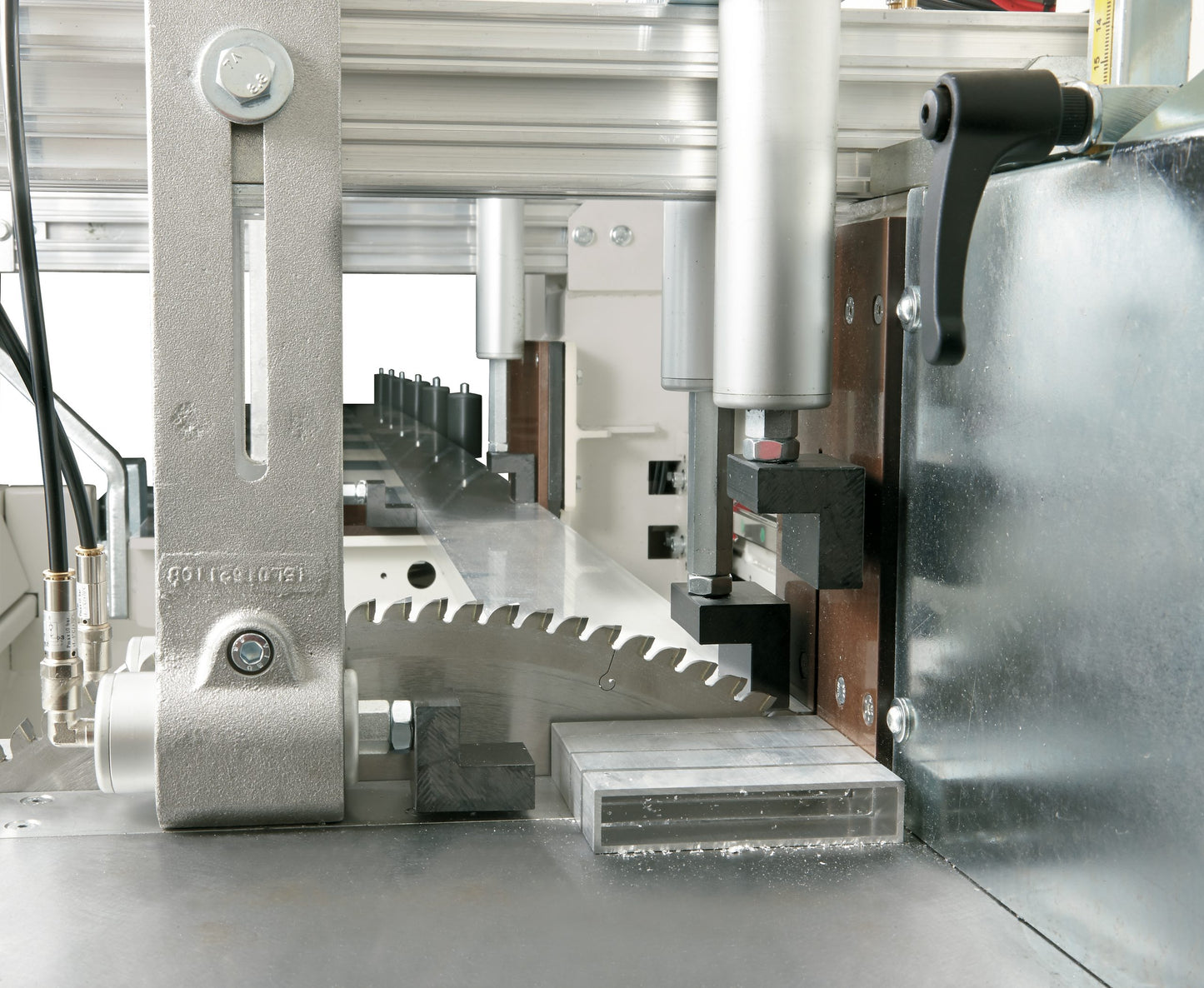

• Secure Clamping System: Equipped with 4 horizontal and 4 vertical pneumatic clamps to firmly secure profiles during cutting.
• Small Section Support: Includes a central support to ensure stability when cutting smaller profiles.

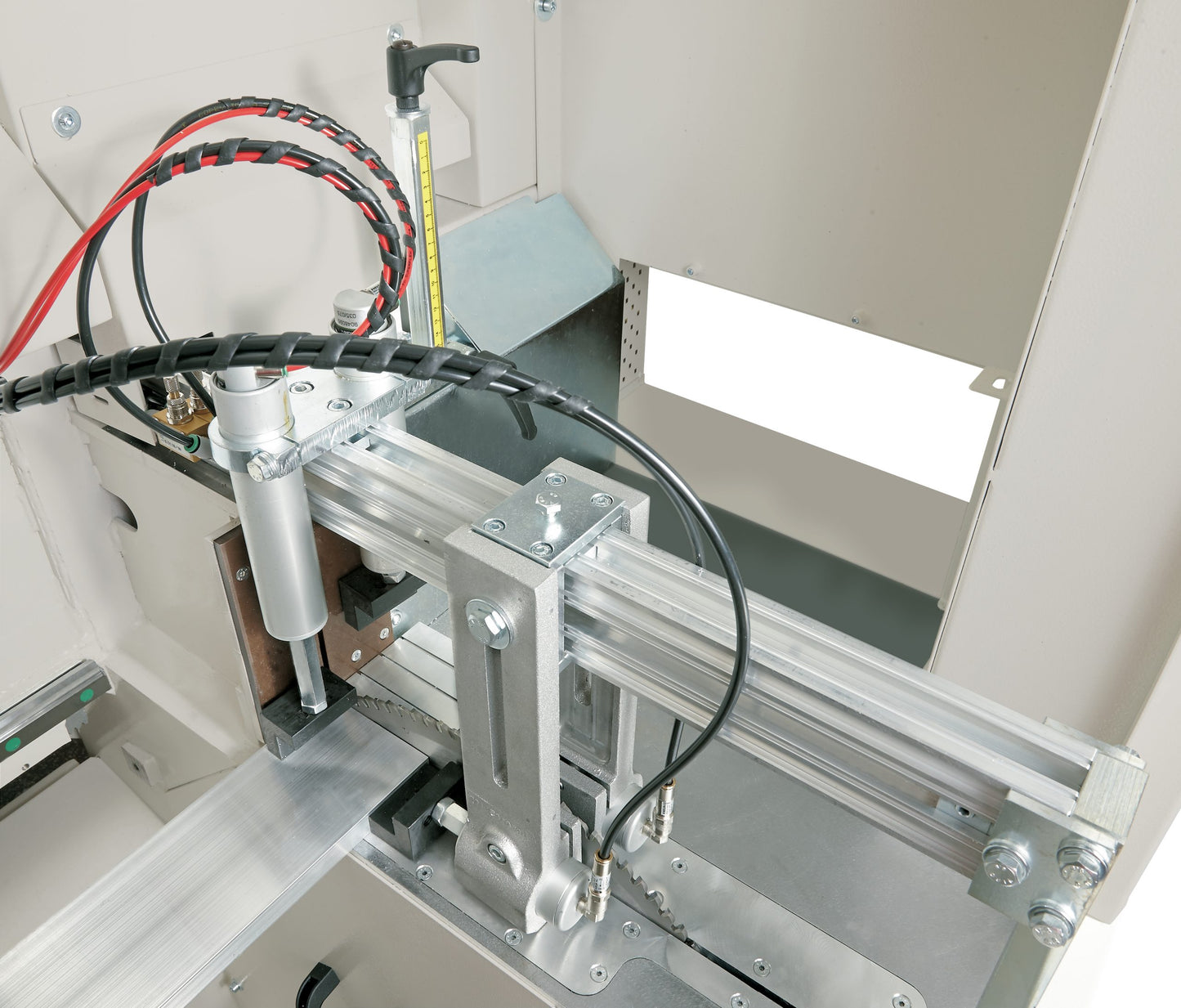

• Rigid Profile Locking: Utilizes a heavy-duty "bridge" system for secure and vibration-free profile locking.
• Efficient Lubrication: Venturi lubrication system optimizes blade performance and extends its lifespan.
• High-Performance Blade: Comes with 1 high-quality Ø 550 mm blade for clean and accurate 90° cuts.
• Adjustable Blade Output: Allows for optimization of cutting time based on material and profile.

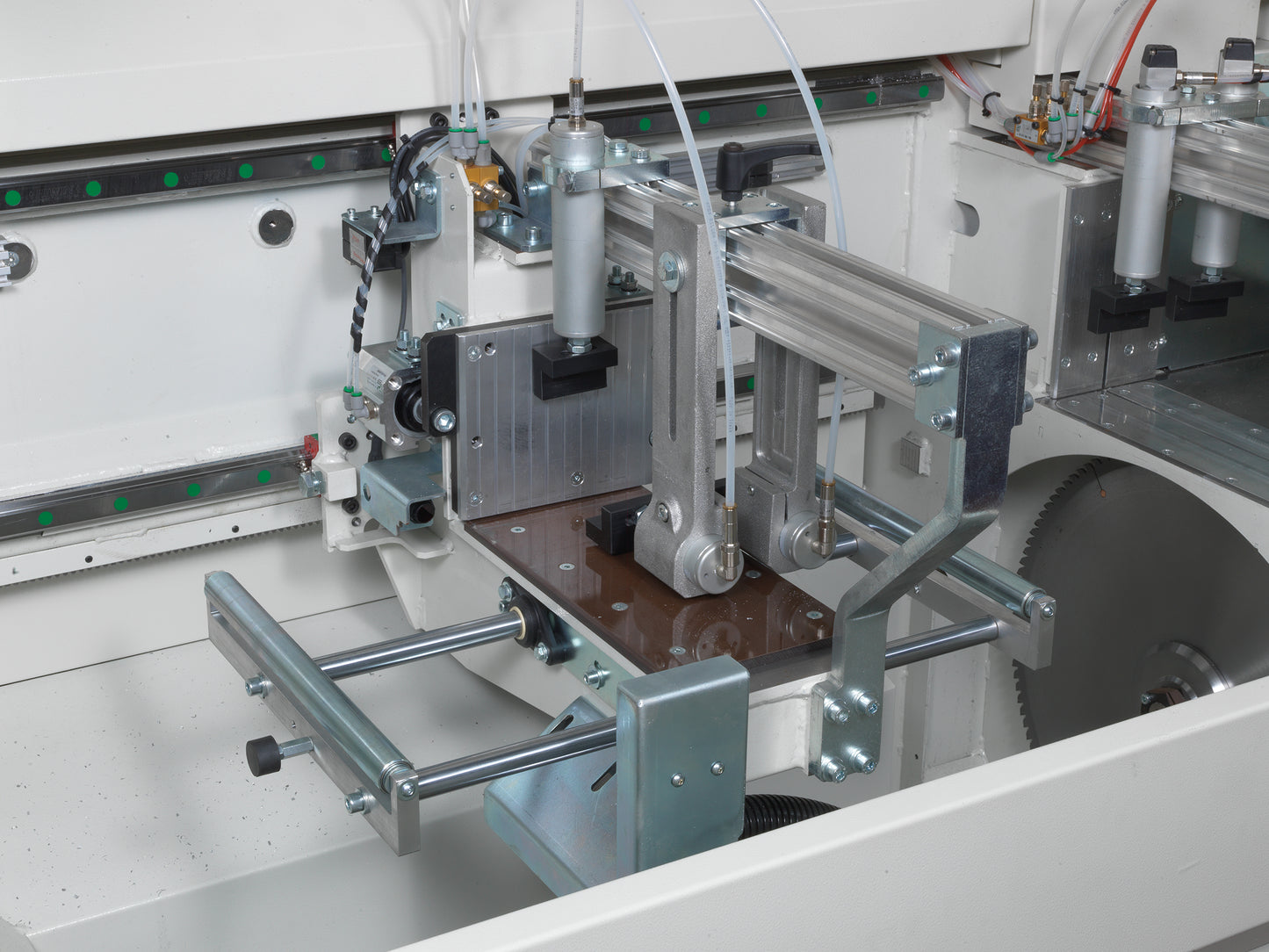

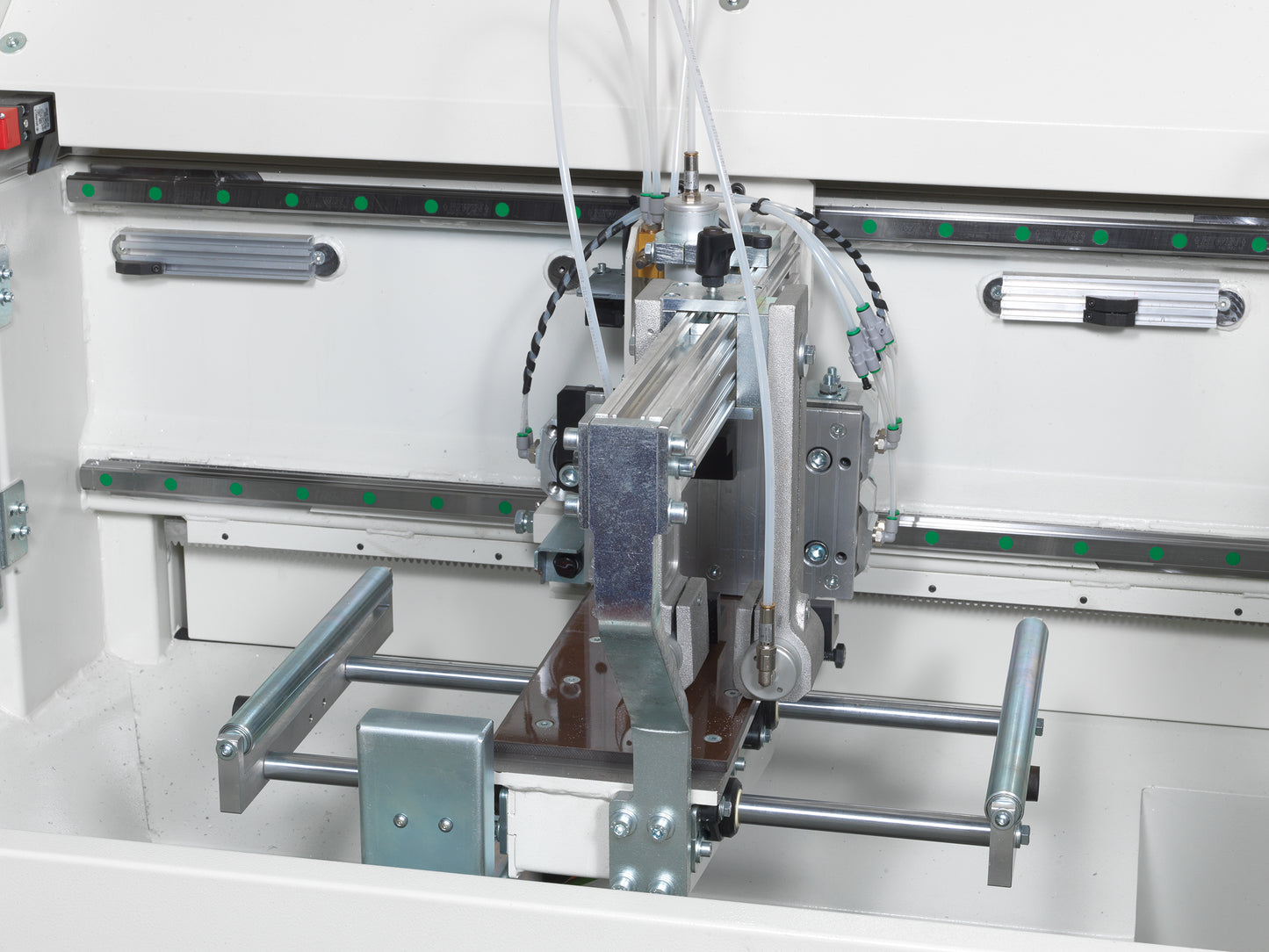

• Automated Feeding System:
  • Brushless motor-driven bar advancement system running on a ground rack, controlled by a numerical control with touchscreen commands.
  • End bar length laser detector for precise material measurement.
• Advanced Control Panel:
  • Electronic control unit on Windows PC with a user-friendly 7” color touchscreen.
  • Intuitive interface for programming cutting lists.
  • Connectivity options: Ethernet, Wi-Fi, and teleassistance for remote support.
  • Network ports: RJ 45 and USB for data transfer and connectivity.
• Comprehensive Safety: Integral cutting area protections with automatic opening and closing, and full compliance with CE safety regulations.
• Protected Electrical System: Features an electrical cabinet with IP 55 protection for enhanced durability and safety.
• Vacuum Cleaner Predisposition: Ready for connection to a vacuum cleaner system for efficient dust extraction.

General Specifications:

• Blade Diameter: 550 mm
• Motor Power: 5.5 kW
• Machine Weight: 680 kg
• Machine Dimensions: 1,800 x 900 x 1,800 mm
• Cutting Angle: 90°

Cutting Capacity (90°): 160 x 160 mm / 280 x 130 mm

Cutting Unit Specifications:

• Blade Diameter: 550 mm
• Shaft Diameter: 30 mm
• Blade Revolutions: 2,800 rpm
• Max Cutting Speed: 6 m/min
• Blade Output Management: Oleopneumatic

Feeding System Specifications:

• Bar Advancement: Brushless motor on ground rack
• Control: Numerical control with 7” color touchscreen
• Max Feed Speed: 30 m/min
• Positioning Accuracy: ± 0.25 mm
• End Profile Sensor Distance: 295 mm

Cutting Specifications:

• Min Cutting Length: 5 mm
• Max Cutting Length (without recovery): 810 mm
• Lubrication: Microdrop

Drilling Specifications (Optional):

• Drilling Control: Pneumatic
• Unit Movement: Linear guides
• Motor Power: 1.1 kW
• Drill Rotation: 5,700 rpm
• Drill Attachment: ER25
• Y and Z Adjustment: Manual
• Y Dimension Reading: Numerical indicator
• Z Dimension Reading: Graduated rod
• Y Working Field: 210 mm
• Z Working Field: 150 mm

Power Supply:

• Electric Power: 400 V / 60 Hz (three-phase)
• Air Compressed Supply: 7 Bar
• Air Consumption per Cycle: 65 Nl
• CSA Compliant

Ideal For:

• High-volume cutting of aluminum and PVC profiles at 90°
• Applications requiring automated feeding and precise length control
• Industrial environments demanding efficiency and accuracy

Maximize your production with the automated precision of the Autocut Single Head Cutting Machine!

FOB Boucherville, Quebec
