(Demo unit available right now) - P104 - Pertici CNC Machining Centre: 4-Axis for Profiles

(Demo unit available right now) - P104 - Pertici CNC Machining Centre: 4-Axis for Profiles

$90,000.00 CAD
$90,000.00 CAD
Sale Sold out

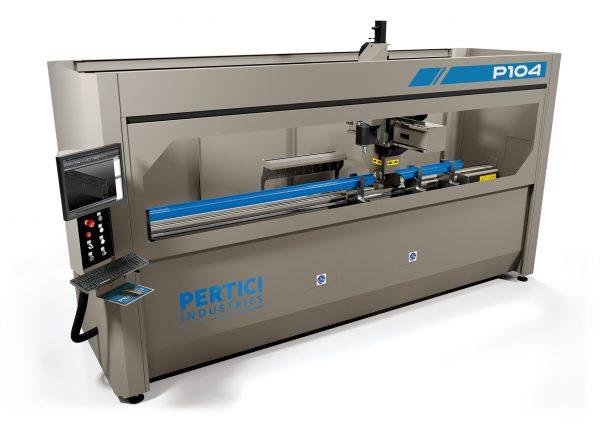

Pertici P104 CNC Machining Centre: 4-Axis Precision

https://youtu.be/_MmPkZXVYkI

Transform Your Fabrication: Milling, Drilling, and Tapping Perfection

The Pertici P104 is a sophisticated 4-axis CNC machining centre designed to redefine efficiency in the processing of aluminium, PVC, light alloys, and thin steel profiles.

This powerhouse machine centralizes multiple operations—including milling, drilling, tapping, and end milling—into a single, high-speed platform. If you’re looking to achieve complex geometry with unmatched precision and flexibility, the P104 Essential is your strategic upgrade.

Why Choose the Pertici P104?

  • 4-Axis Control: Maximum flexibility allows machining on any angle between 0degree and 180degrees for intricate profile work.

  • True Versatility: Seamlessly handles four core operations, reducing machine changeover time and labor costs.

  • Compact Power: The "moving-column" machine concept delivers high work rates within a surprisingly compact footprint.

Core Specifications & Productivity-Boosting Features

The P104 Essential is engineered for continuous professional operation and maximum material throughput.

Feature Performance Benefit
5 kW Electro-Spindle (S1) Delivers consistent, robust power for aggressive material removal and cleaner finishes.
8-Position Tool Magazine Integrated, fixed magazine ensures rapid automatic tool changes, minimizing cycle time between operations.
Wide Workpiece Capacity Accommodates profiles up to 225 mm (base) x 260 mm (height) with maximum machinability on three profile faces.
Pneumatic Zero Stop Standard 3.2-meter working range, with the option to double the length using a second zero stop for handling long profiles.
Optimized Clamping System Four reduced-size clamps ensure secure, precise profile holding, even for relatively short workpieces, preventing shifting and collisions.
HSK-F50 Tool Attachment Provides a rigid and secure tool-holder connection, crucial for maintaining accuracy during high-speed machining.

Ideal Materials

The P104 Essential is the definitive processing solution for the following materials in the window, door, and industrial sectors:

  • Aluminium Profiles

  • PVC/Vinyl Profiles

  • Light Alloys

  • Steel Profiles (up to 2 mm thickness)

Elevate Your Output

Invest in the Pertici P104 Essential to eliminate bottlenecks, reduce reliance on manual setups, and achieve repeatable, complex, and high-quality results every single time. It is an investment in accuracy, speed, and the future capacity of your workshop.

Contact us today for a full demonstration or to request detailed technical specifications.

Transport is FOB Boucherville : Quote available upon request
